Conventional and Unconventional Wells

Acording to Act 13 - Feequently Asked Questions by PA DEP the difference between conventional and unconventional wells is explained as follows:

What is a conventional gas well?

A conventional gas well , also known as a traditional well, is a well that produces oil or gas from a conventional formation. Conventional formations are variable in age, occurring both above and below the Elk Sandstone. While a limited number of such gas wells are capable of producing sufficient quantities of gas without stimulation by hydraulic fracturing, most conventional wells require this stimulation technique due to the reservoir characteristics in Pennsylvania. Stimulation of conventional wells, however, generally does not require the volume of fluids typically required for unconventional wells.

What is an unconventional gas well?

An unconventional gas well is a well that is drilled into an unconventional formation, which is defined as a geologic shale formation below the base of the Elk Sandstone or its geologic equivalent where natural gas generally cannot be produced except by horizontal or vertical well bores stimulated by hydraulic fracturing. To view a rock correlation diagram of formations in Pennsylvania , please click here.

Unconventional formations that are currently being targeted or that may possibly be targeted for oil and gas development in Pennsylvania include, but are not limited to, the Marcellus, Utica, Mandata, Huron, Rhinestreet, and miscellaneous Upper Devonian formations such as the Dunkirk, Pipe Creek, Middlesex, Geneseo, and Burkett. There are some shale formations, including the Huron, Dunkirk, and Pipe Creek shales, that are younger than the oldest basal Elk Sandstone section and, therefore, do not meet the Act 13 definition of an "unconventional formation."

Based on DEP's information two factors seem to control the difference; (1) the depth of the formation and (2) the amount of water needed to frac the well.

Outside PA law the difference is even more vague and appears to be based on the drilling techniques used in the process. As newer techniques are used in shallower formations the difference becomes even more blured.


Differences between Conventional and Unconventional Wells

Conventional Unconventional
Well Pad Size 1 to 5 Acres More than 5 Acres

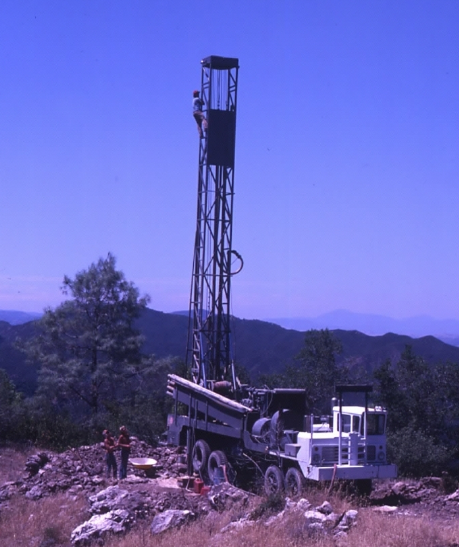

Equipment needed Small equipment
truck mounted drill rig,
several trucks
small backhoe, buldozer
limited amount of pipe

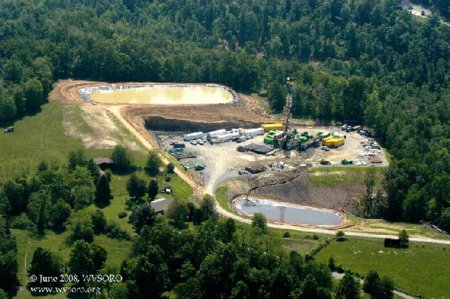

Large amount of equipment
Large drill rig
Fracking equipment
large waste pits
Depth/length less than 6000 feet 6000 feet or more
Well head pressure Low Very high
Frac fluid used Less than 1 million gallons 4 to 10 million gallons
Production volume A few barrels/day of oil
less than ? cfm/day of gas
High
Rock permeability Porus: less than 0.1 millidarcies Tight: greater then 0.1 millidarcies
Product transport Trucks for oil
small pipeline system
before connecting to
distribution system.
Large pipeline
system with
compressor stations

Conventional vs Unconventional WellsEssay by Lauri Barr August 26, 2023

Guest Essay: Conventional vs Unconventional Oil & Gas Wells - Not As Different As You Might Think PA Environmental Digest

A general feeling among environmentalists is that the only reason there is a distinction between the two well types is that conventional well owners/operators want lessor regulation and lessor fees for bonding. PA law only requires a small fraction (about 5%) of the actual cost of plugging as a bond for each well reguardless of type.
