Oil Field Artifacts

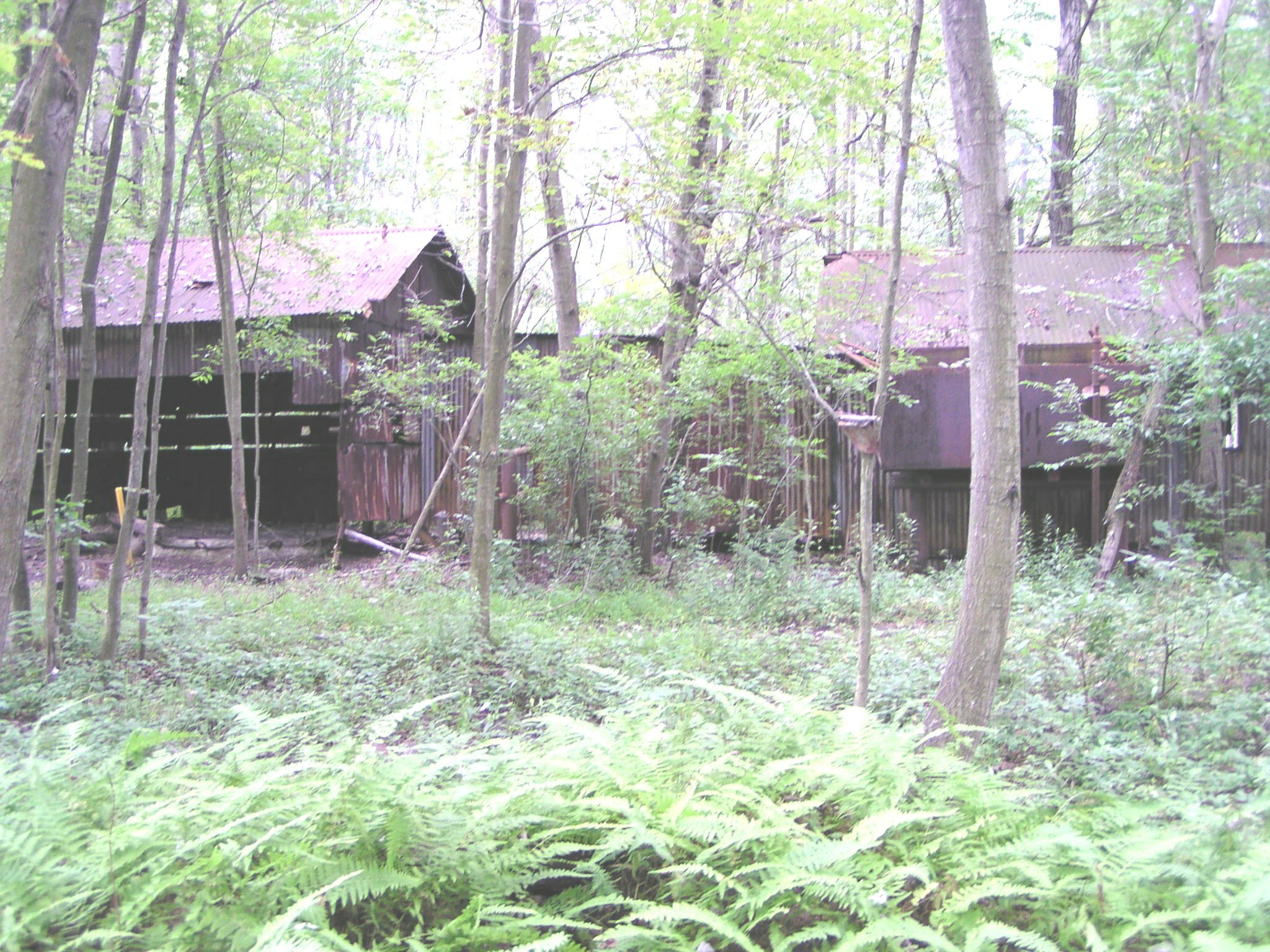

Power house1
Image 1 of 72
Where does the story start. Does it start with the power house?
Power house2
Image 2 of 72

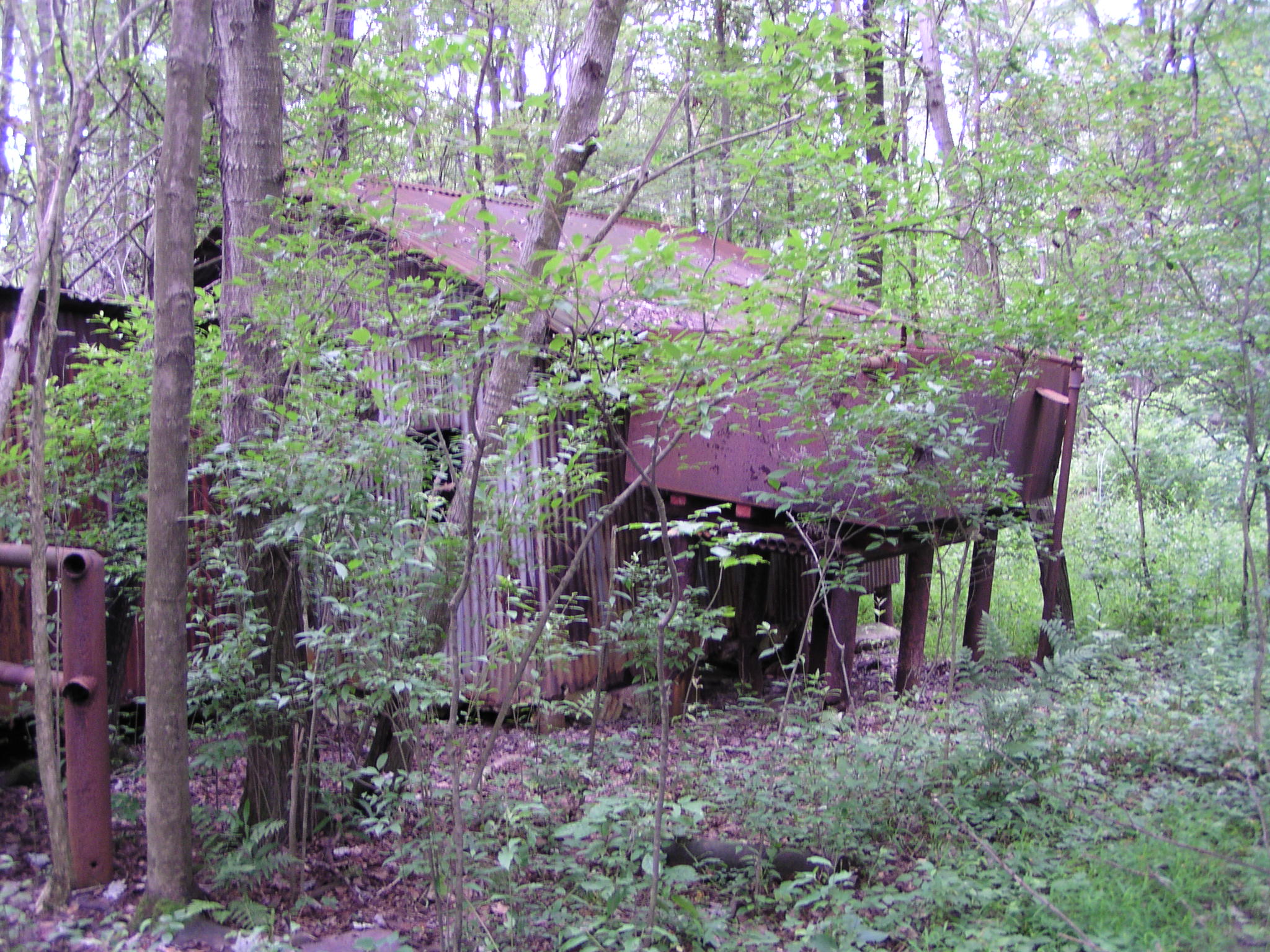

The place where the gas engine generated the power to pump the wells.
Power house5
Image 3 of 72

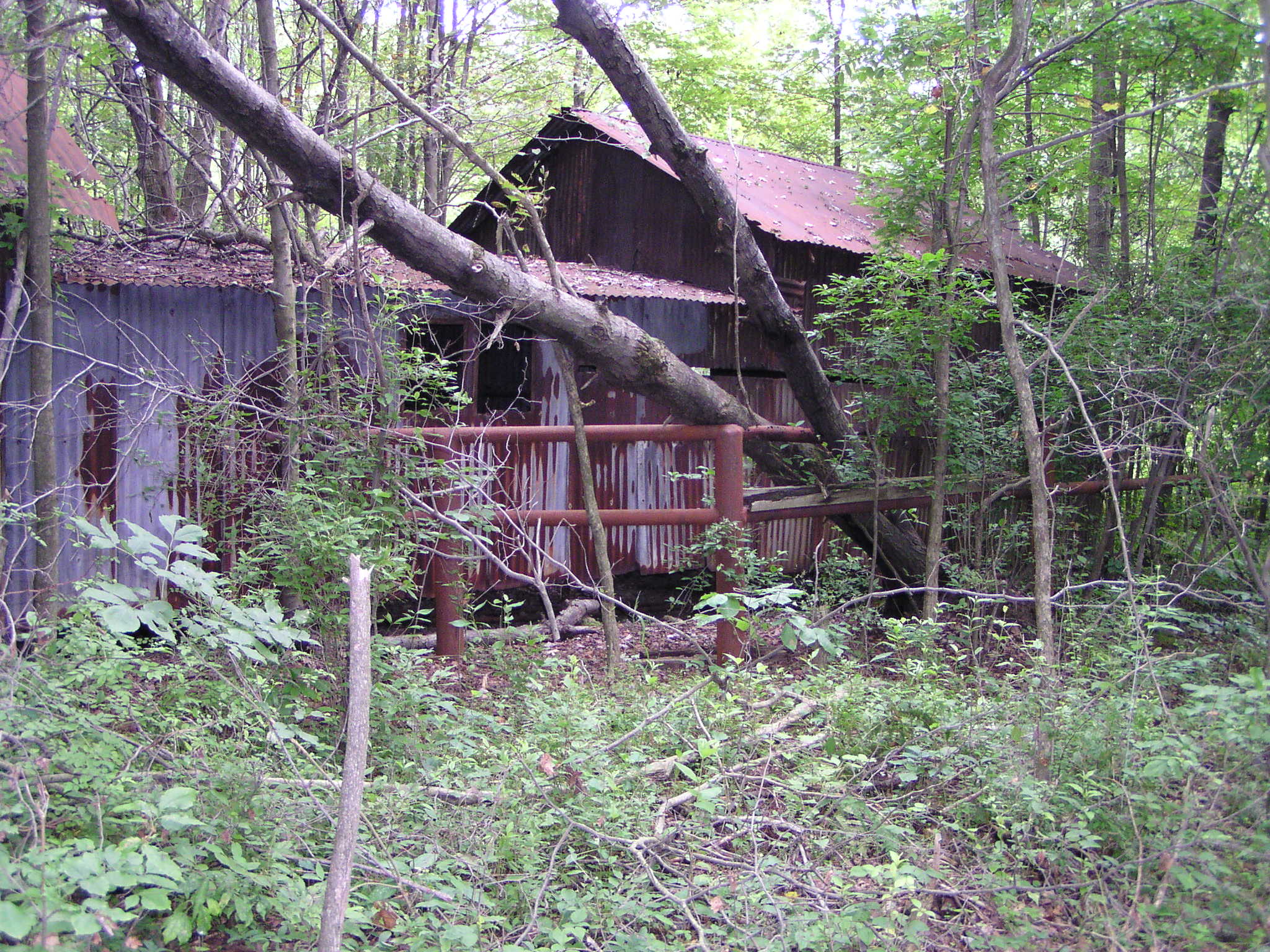

The place now long abandoned and left to be reclaimed by nature.
Power house4
Image 4 of 72

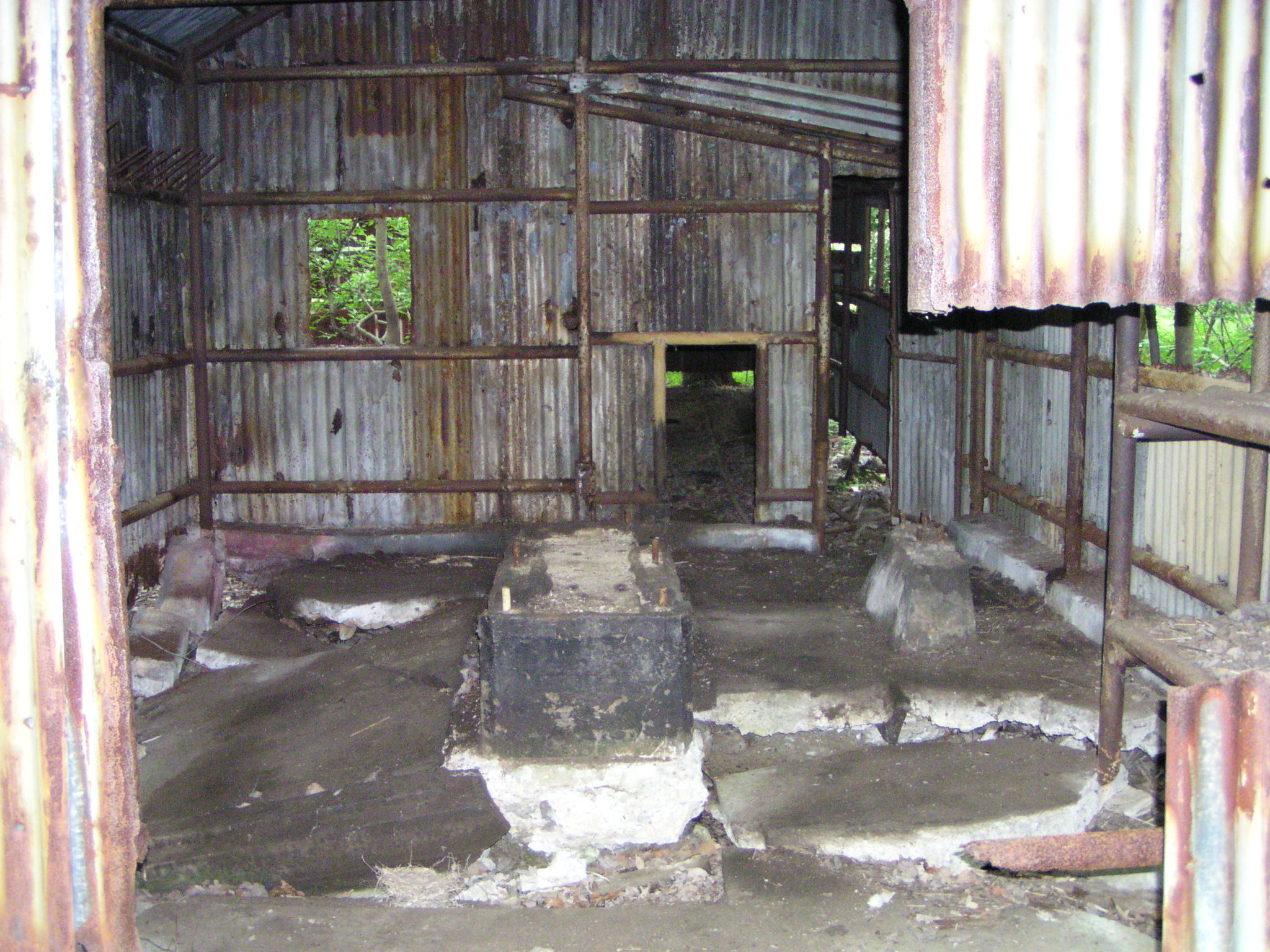

Stripped of it's engine. Leaving only the mounting pads.
PumpHouse at BloodFarmHill 010
Image 5 of 72

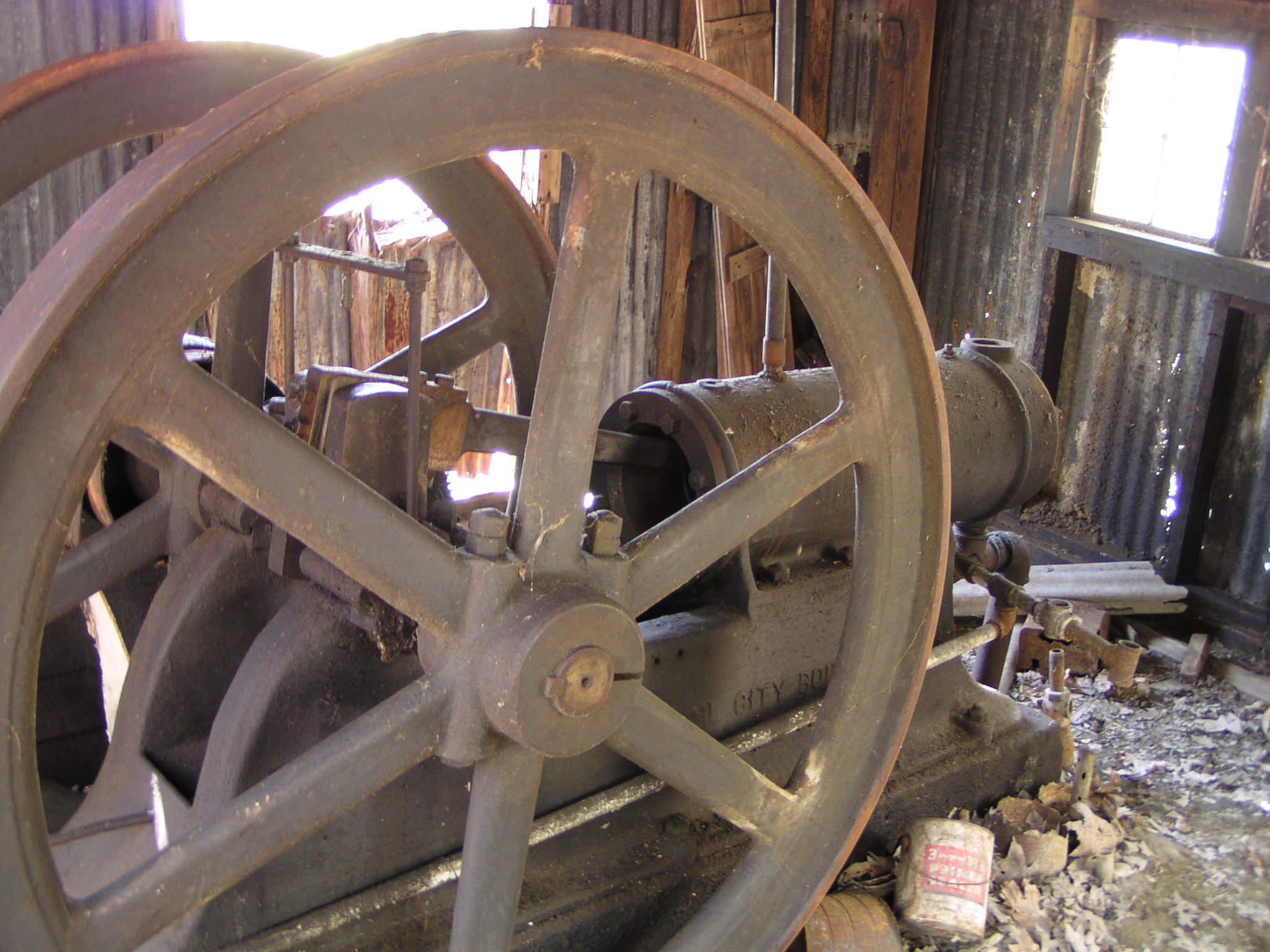

Some power houses still have parts of the engines.
PumpHouse at BloodFarmHill 001
Image 6 of 72

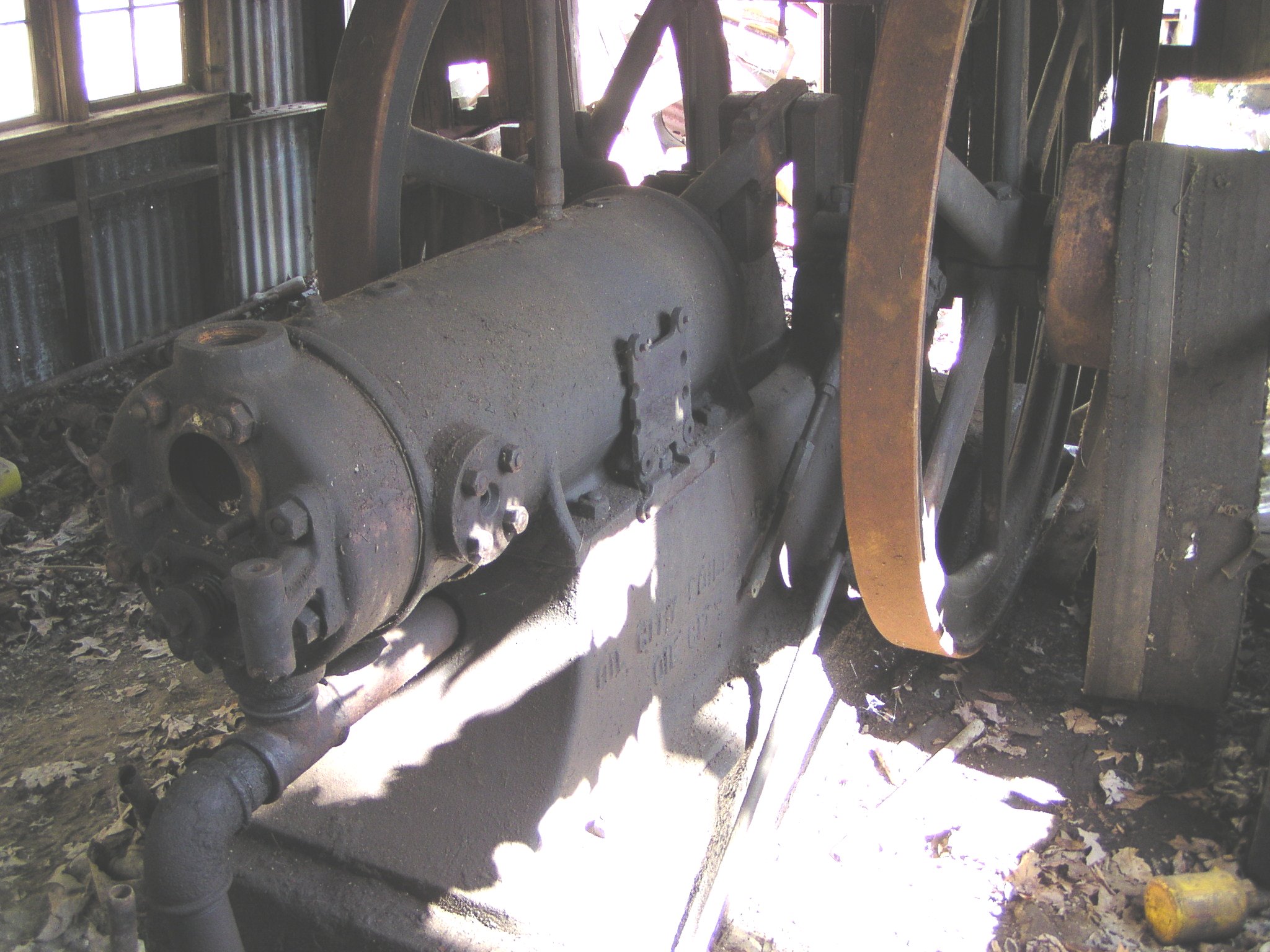

Some are almost complete.

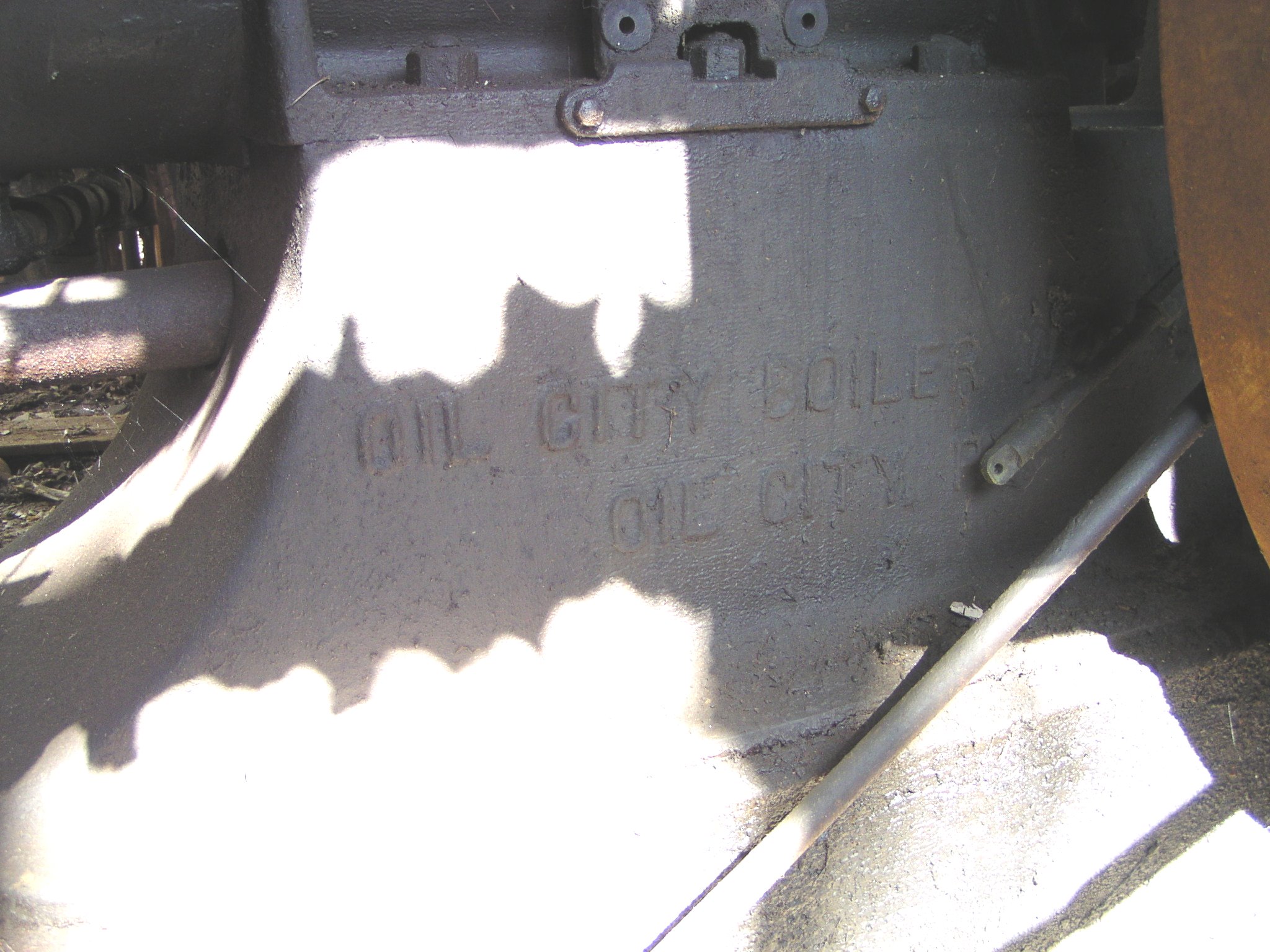

PumpHouse at BloodFarmHill 004
Image 7 of 72
From once great names like Oil City Boiler Works of Oil City PA. Click here for Video 1 or Video 2 of operating engines
gas engine 02
Image 8 of 72

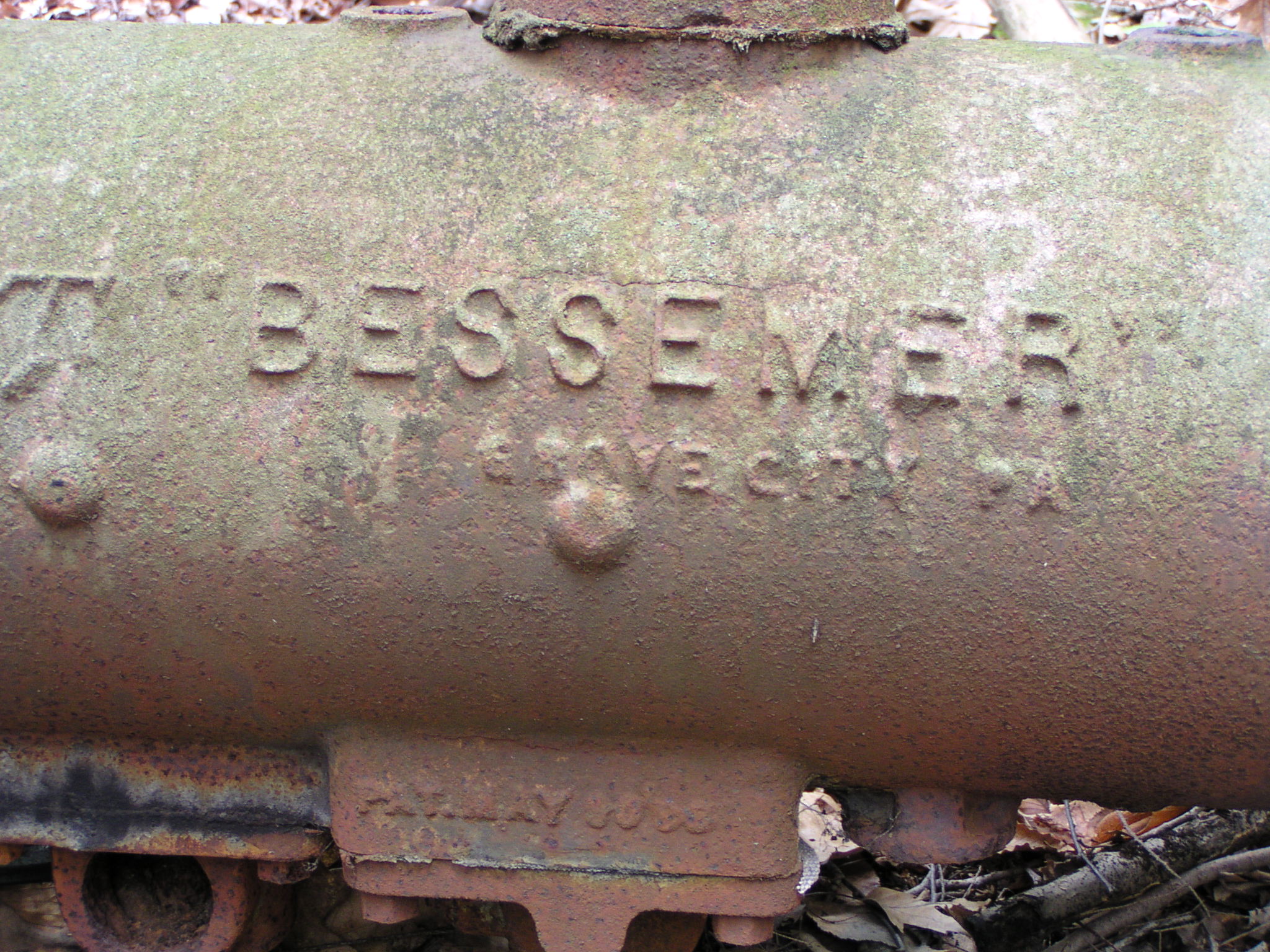

Or Bessemer of Grove City PA. Video of of an 1899 Bessemer engine

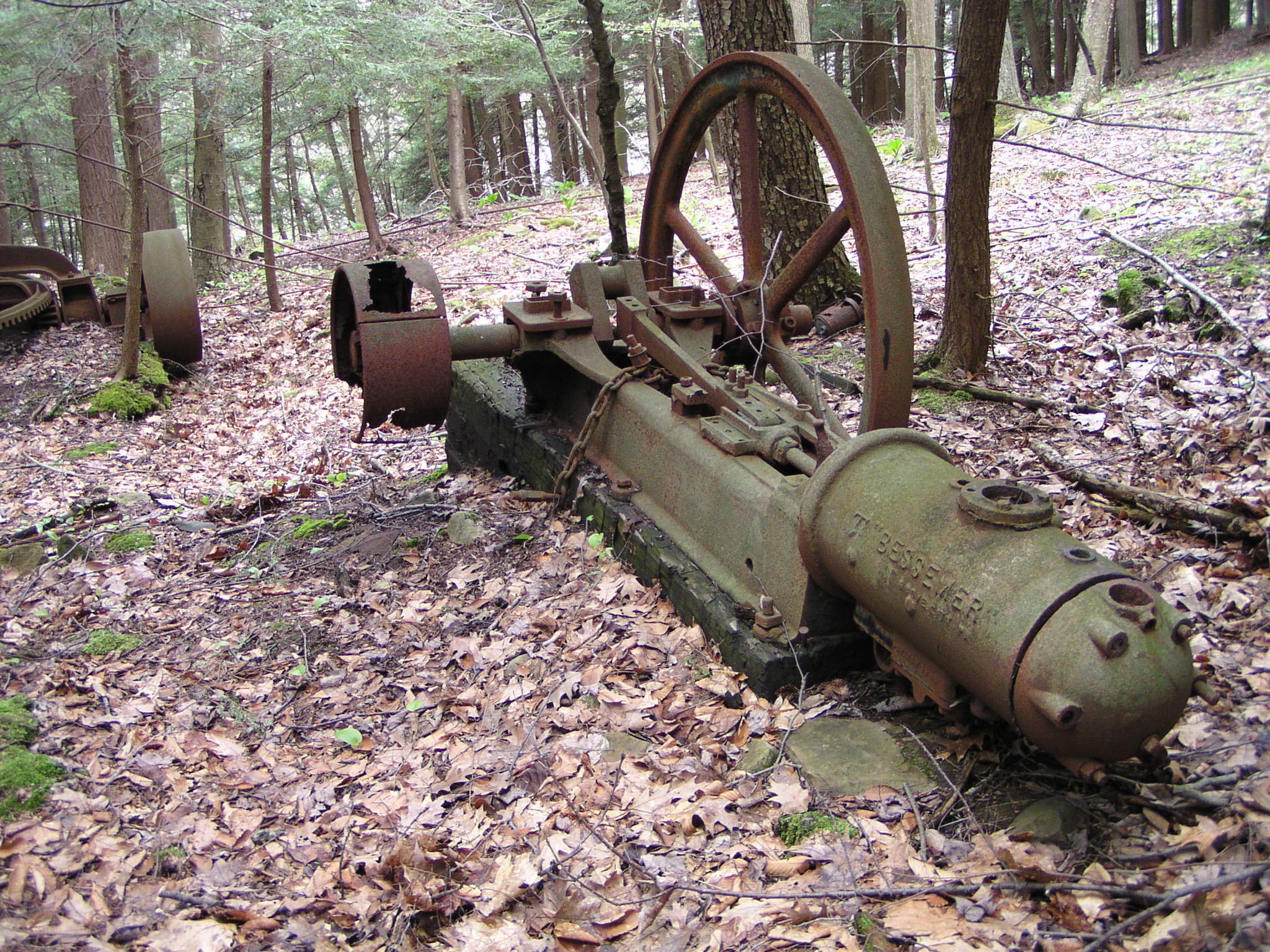

gas engine 01
Image 9 of 72
Here a Bessemer engine sits in the open it's power house long gone. Video of starting a Bessemer engine.

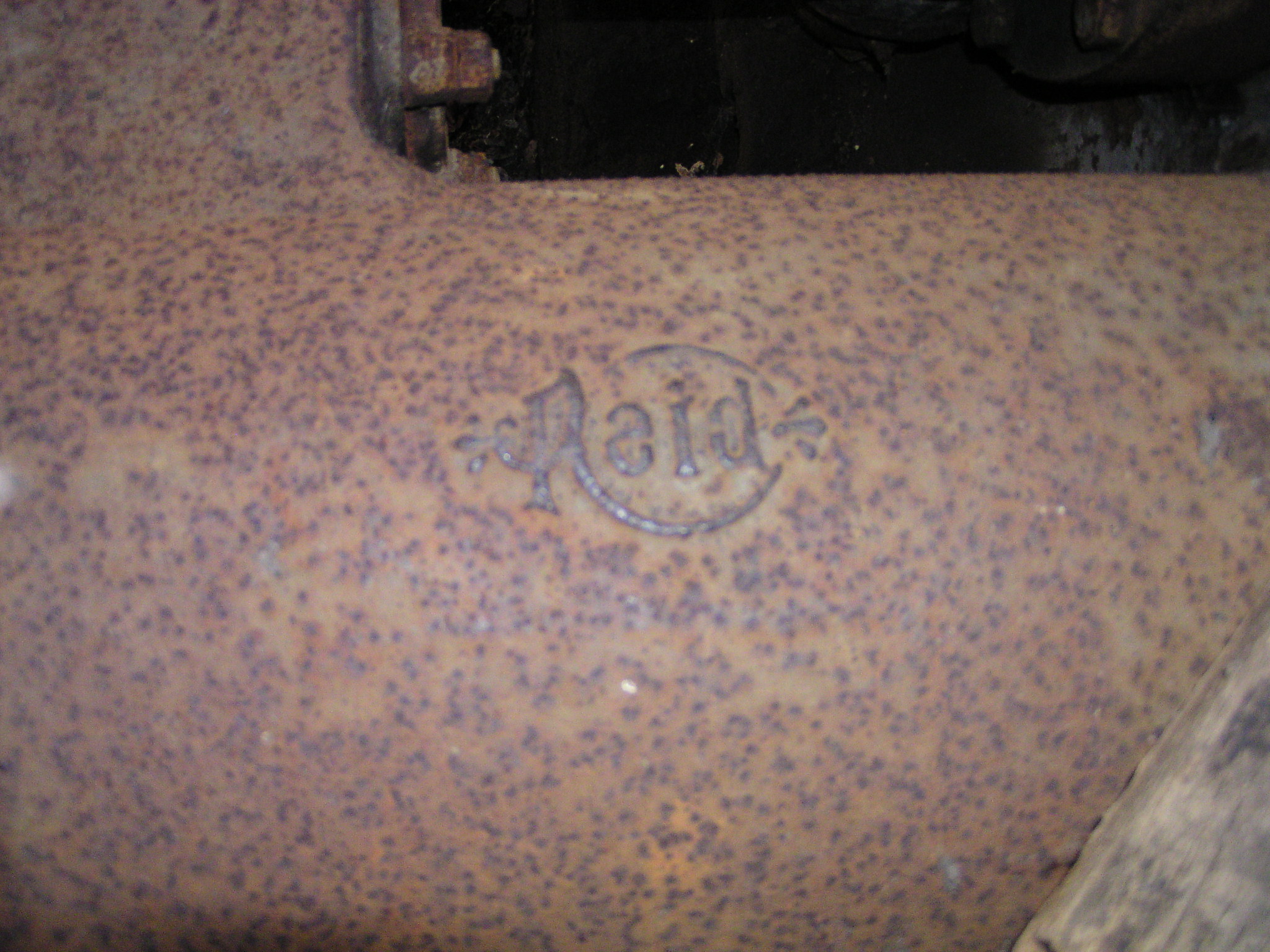

Pump House above WildCatHollow 007
Image 10 of 72
Belt house - 01
Image 11 of 72

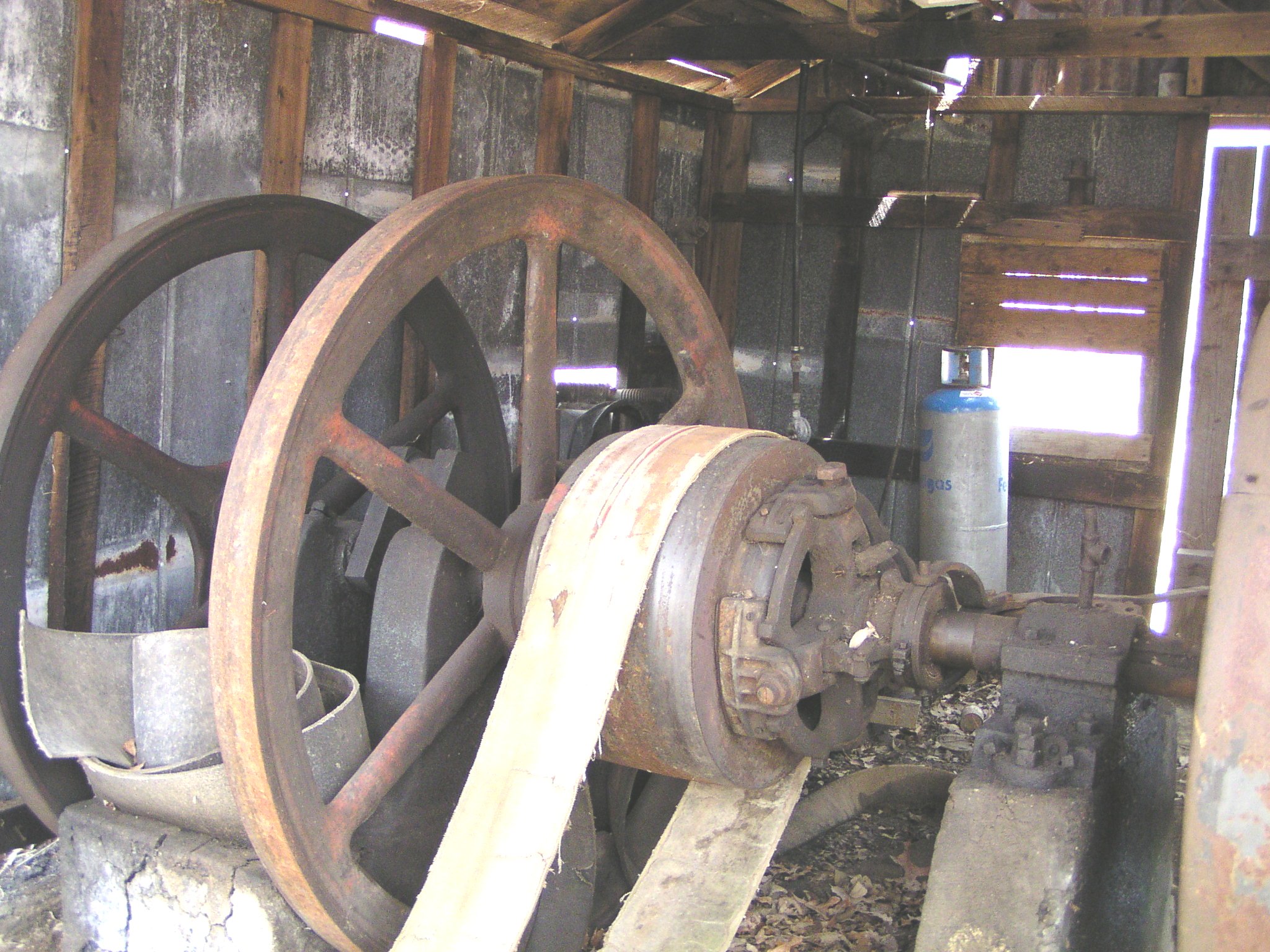

A relatively new power house powered by propane gas.

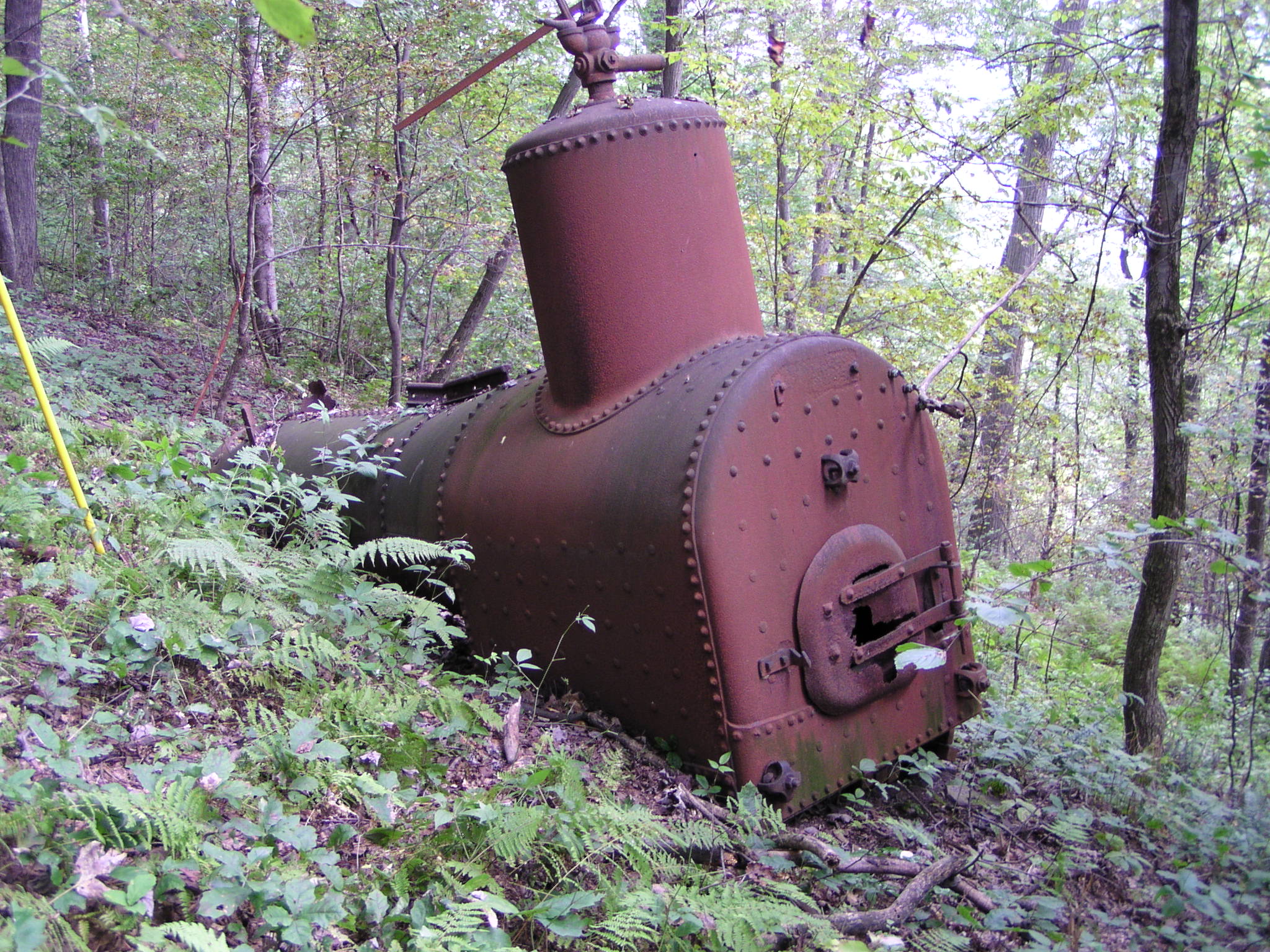

Boiler - 03
Image 12 of 72
In the early days, engines were run on steam. Here is the firebox from an old steam boiler.
Pump House above WildCatHollow 004
Image 13 of 72

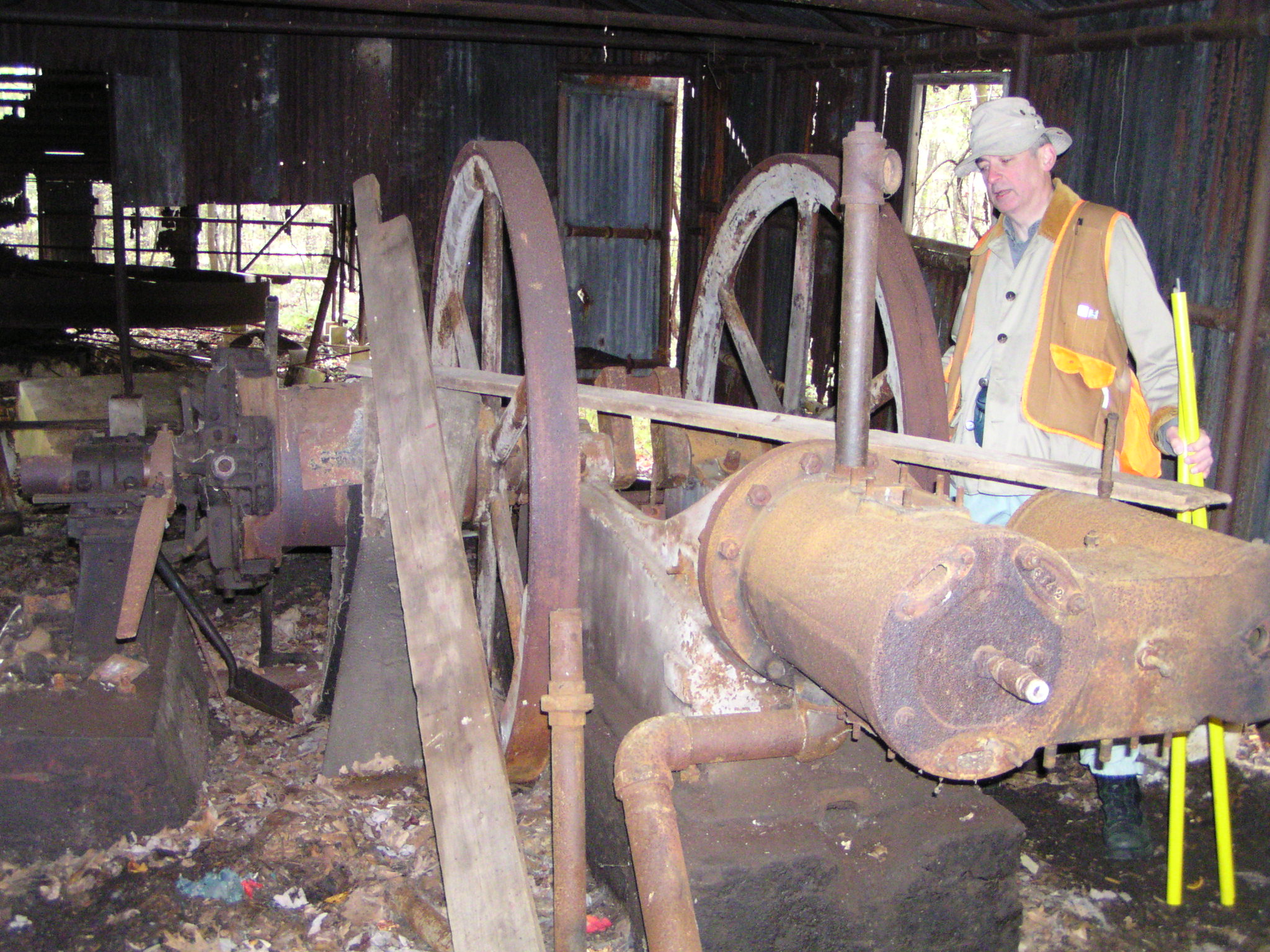

Power houses used a belt to connect the engine to the band wheel that connected rod lines to the pumping jacks. Click for video of belt driven eccentric.
Power plant parts 01
Image 14 of 72

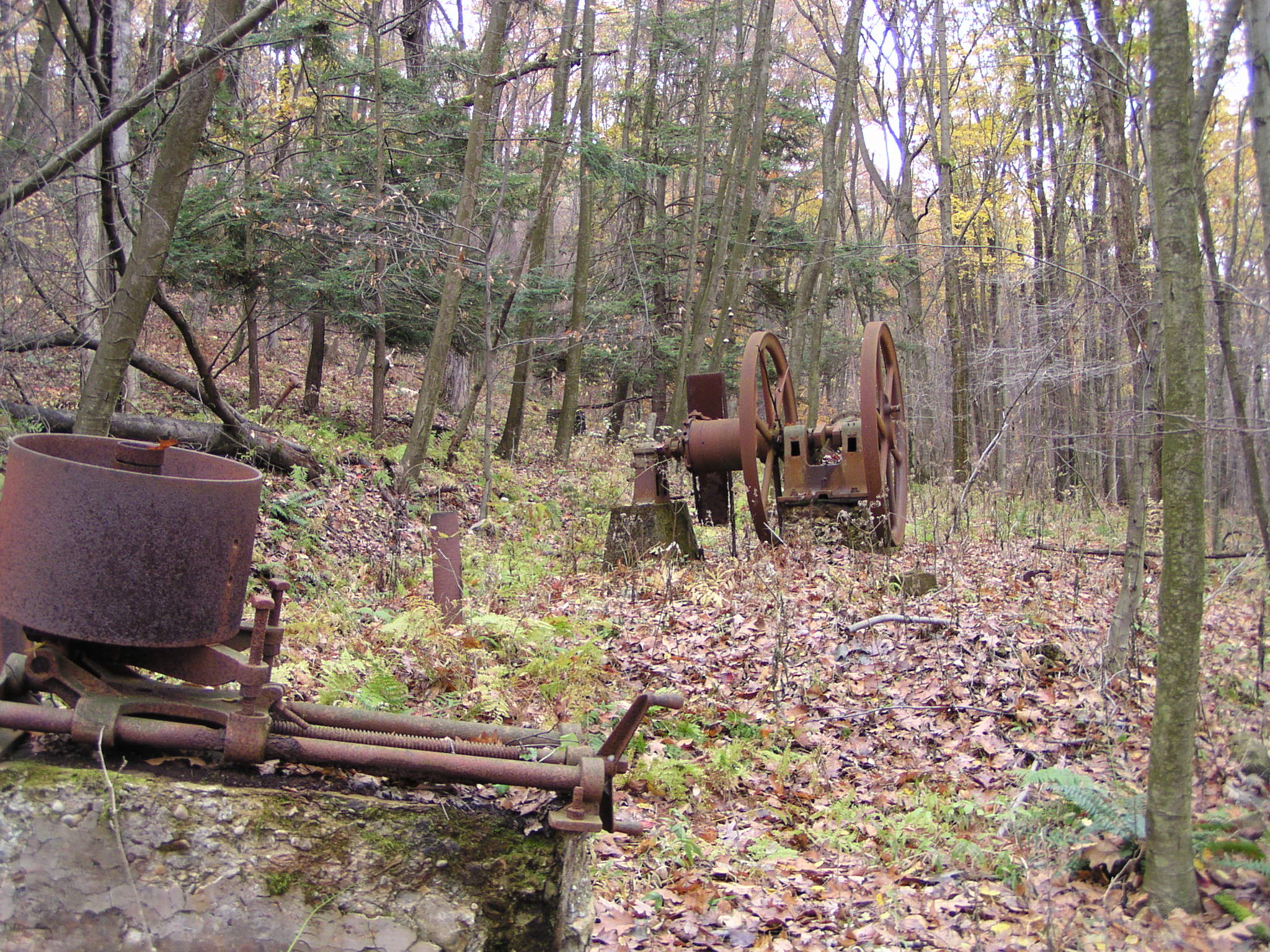

Here an engine and belt tightener are shown. Video of oil field band wheel central power. Part 1 , Part 2 In these videos the gas engine has been replaced by an electric motor.
Adjustment wheel
Image 15 of 72

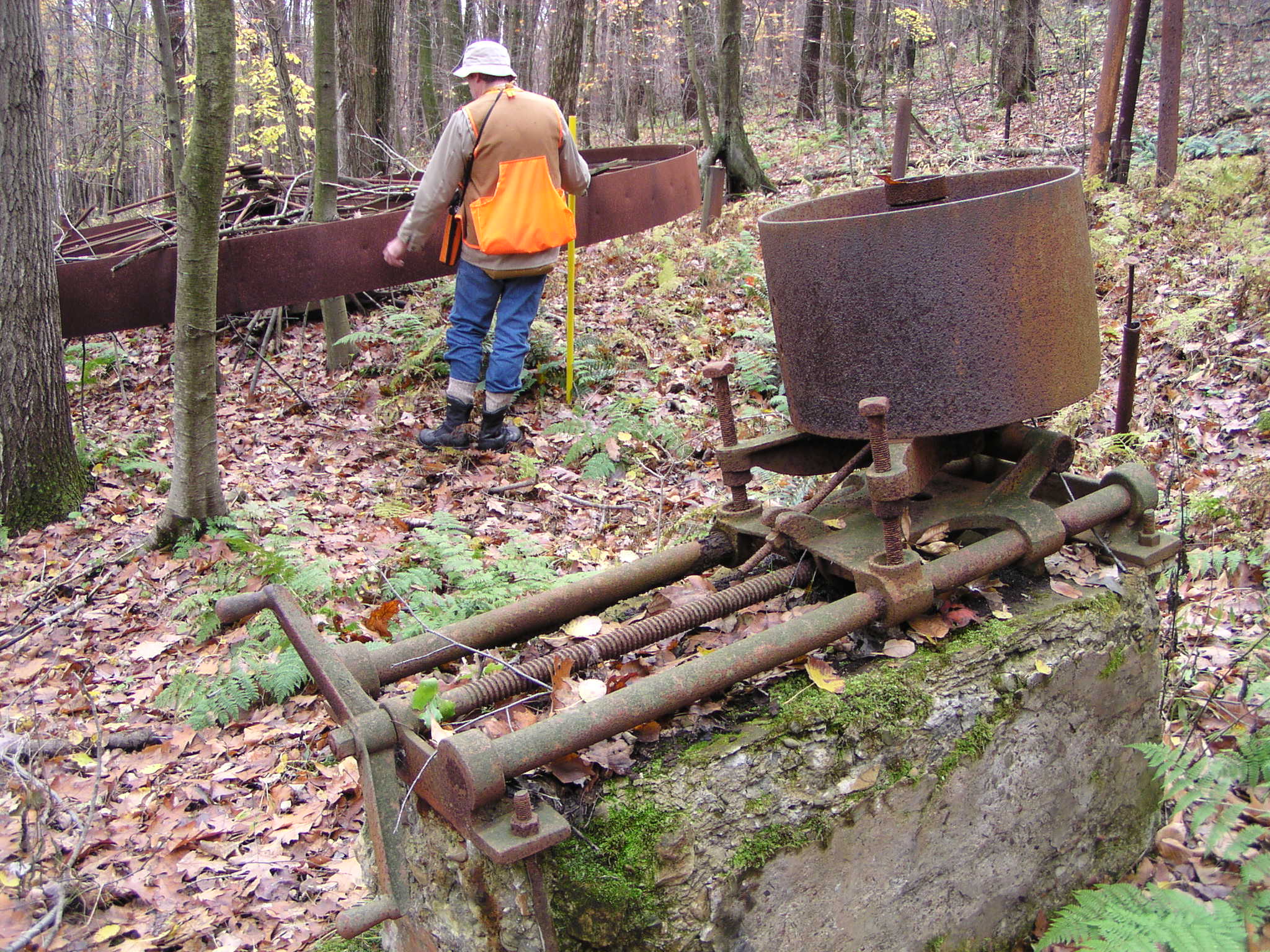

Here the belt tightner and band wheel are shown. Video of oil field band wheel central power, rod lines and pumping jacks. Part 3, Part 4

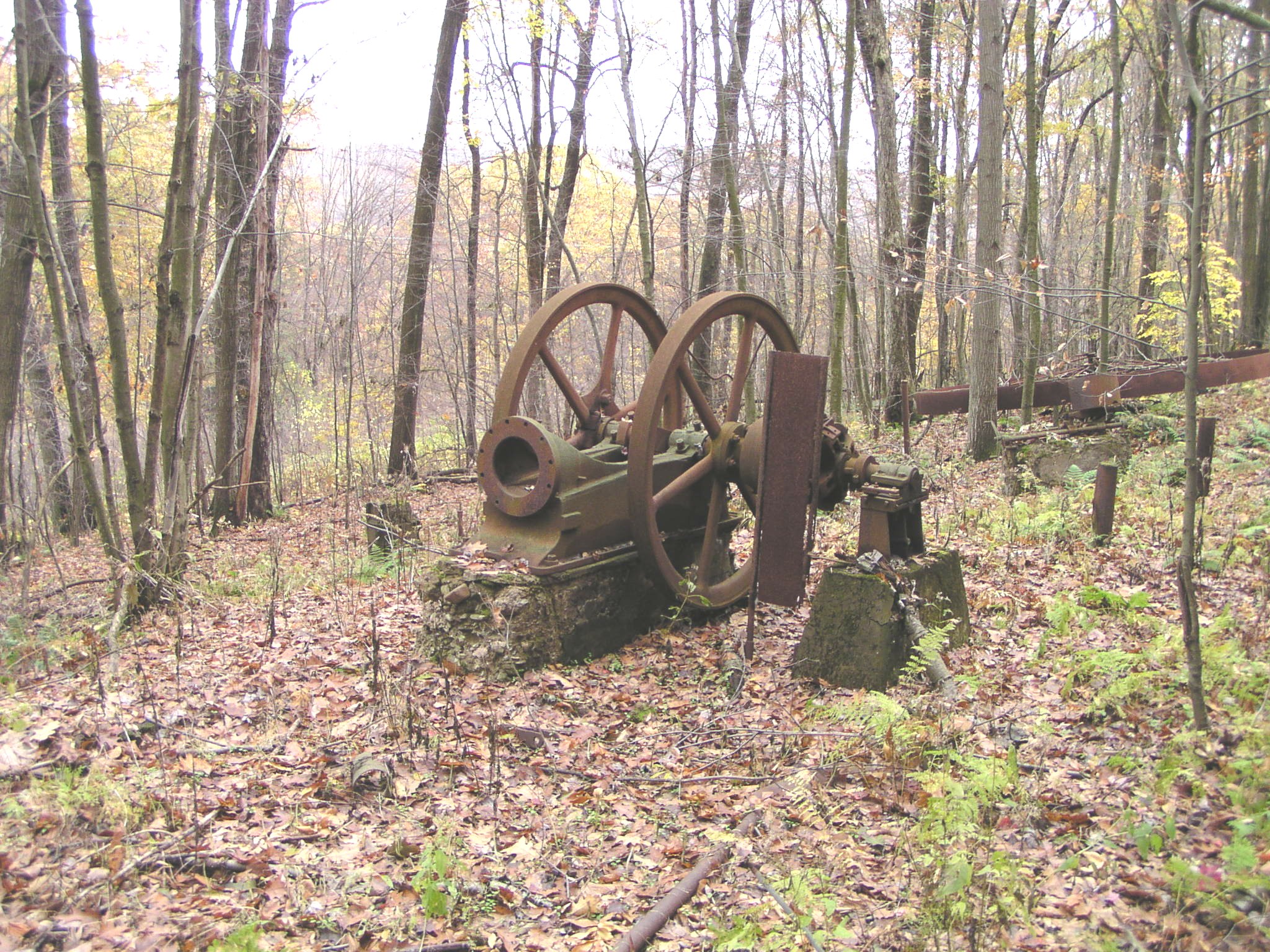

Power wheel1
Image 16 of 72
Here the engine belt tightener and band wheel are shown.

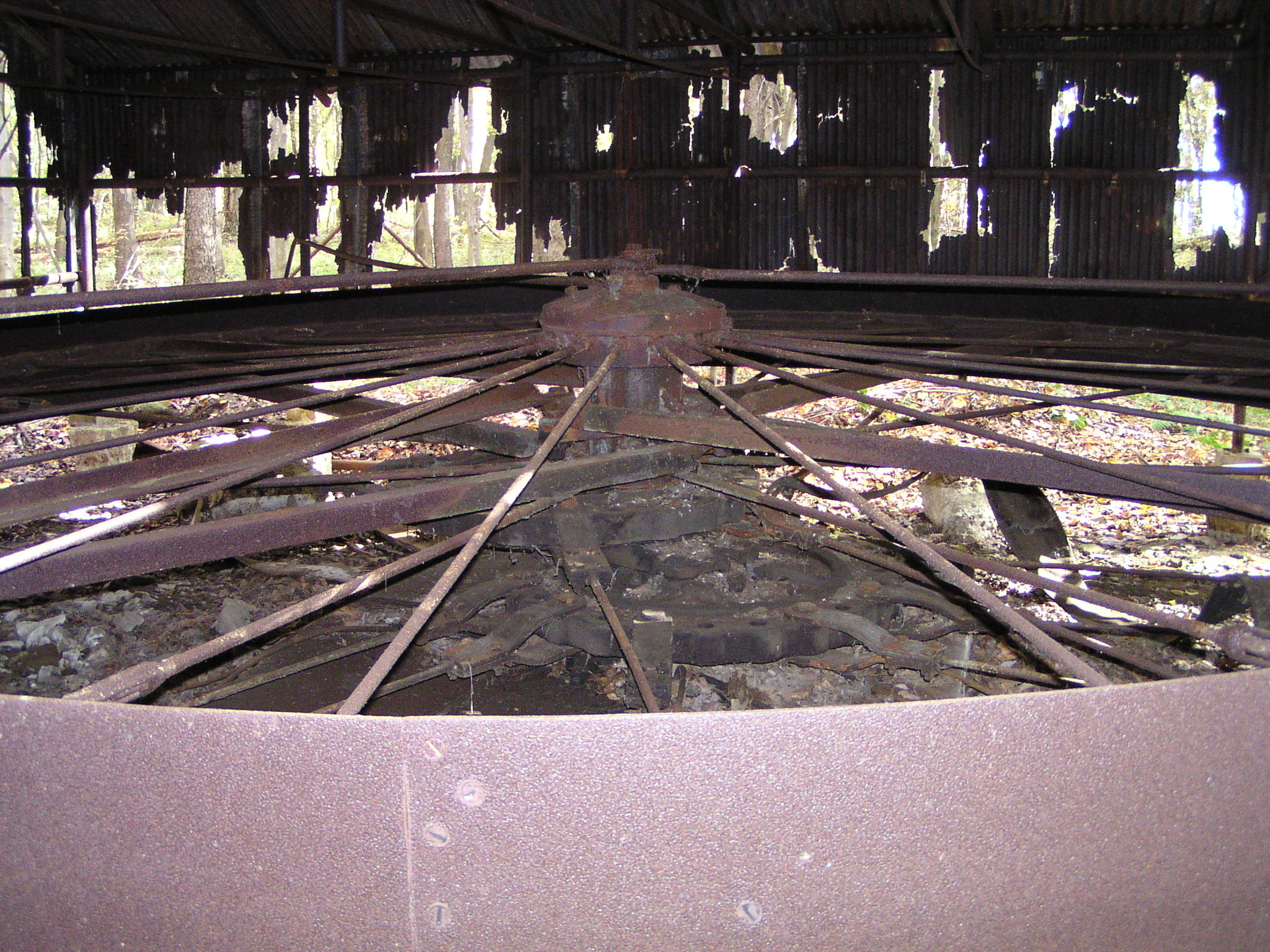

Power House above WildCatHollow 002
Image 17 of 72
The eccentrix and band wheel inside a power house.
Oil Field stuff 003
Image 18 of 72

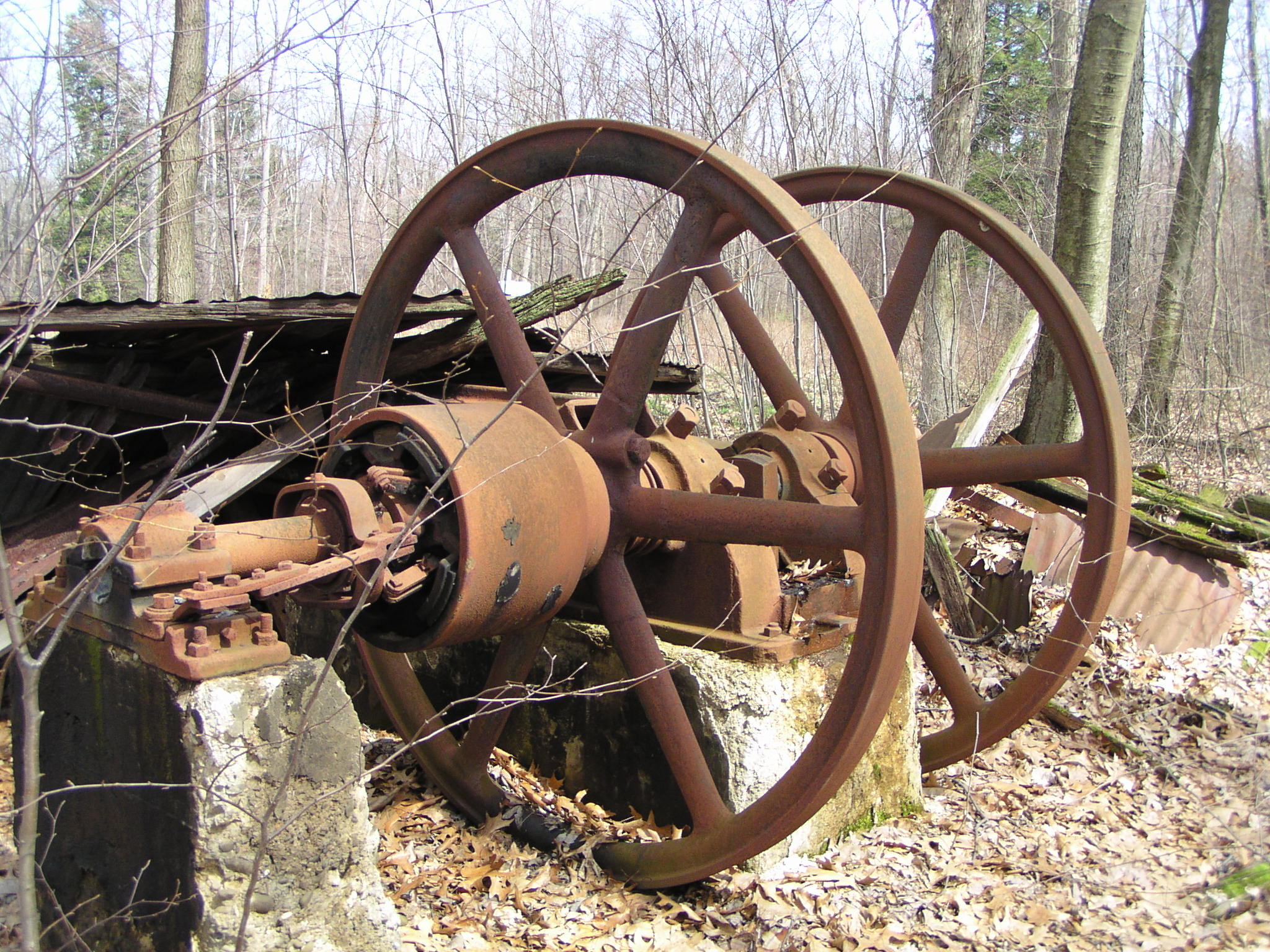

The remains of an old engine and power house.
Oil Field stuff 006
Image 19 of 72
A gear driven eccentric with no band wheel needed. Belt attached to the shaft on the right. Video of operating engine and gear eccentric.
Old Power PC Rouseville Rd 02
Image 20 of 72

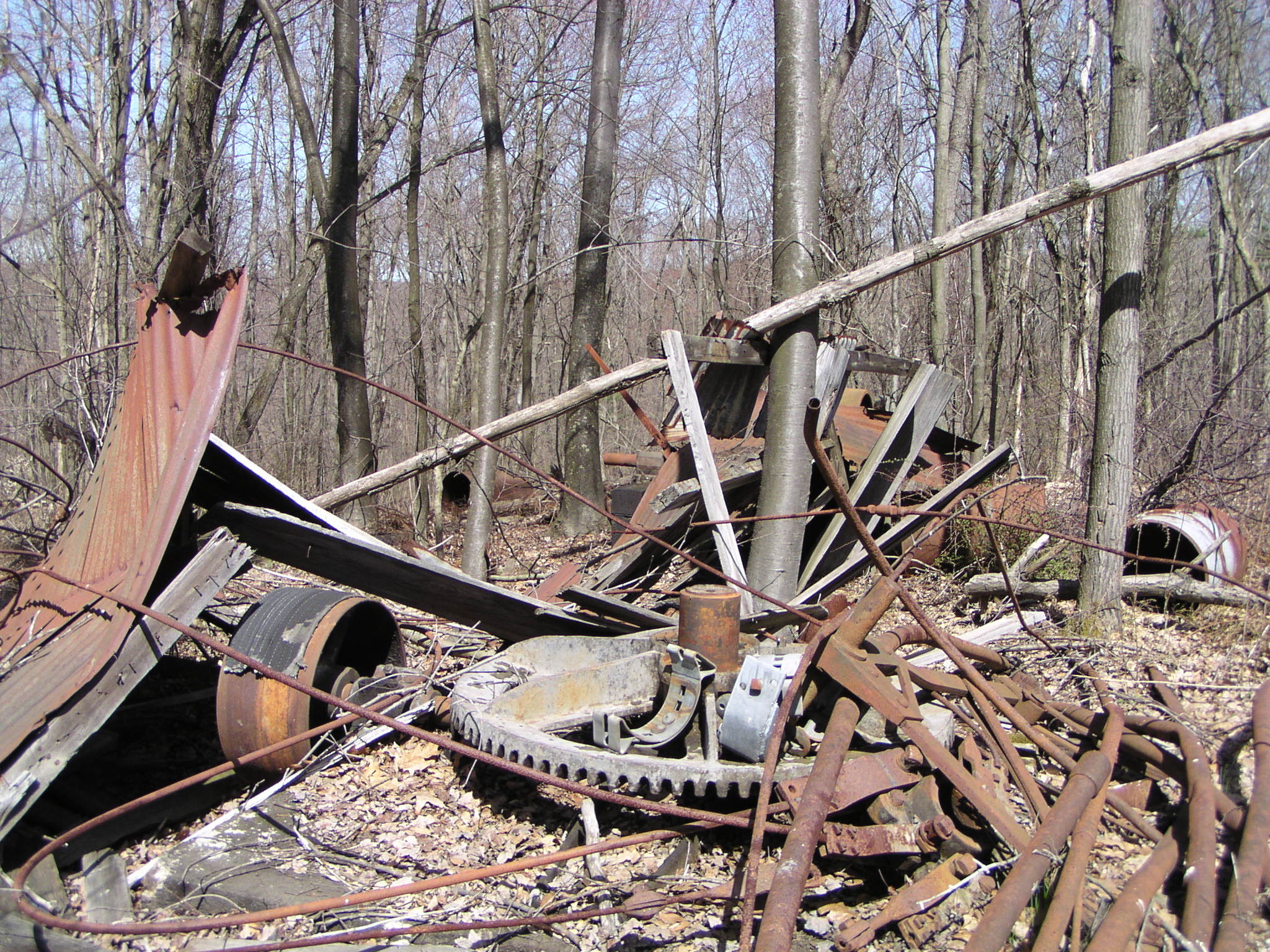

The dismantled remains of a gear eccentric.

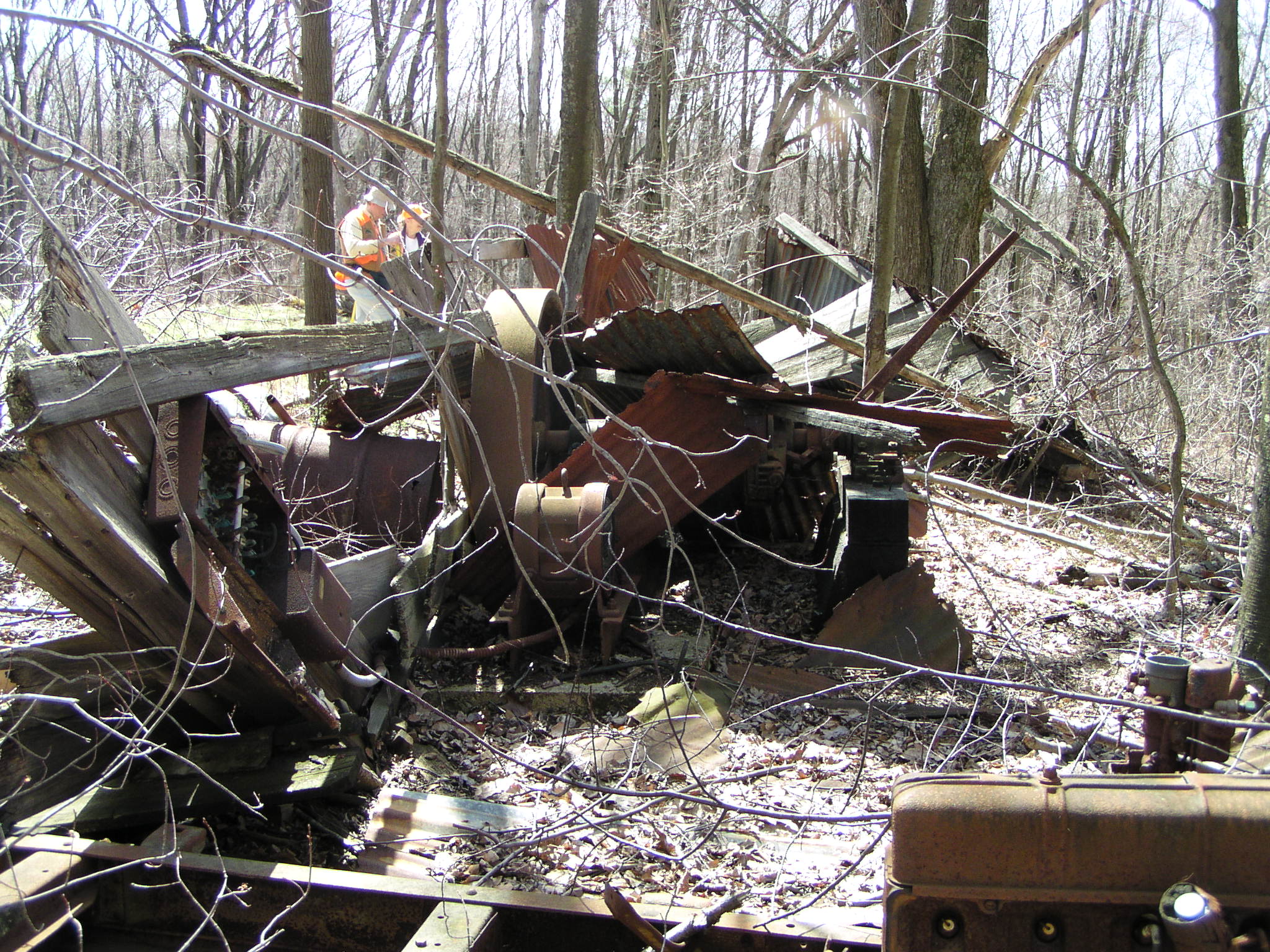

Old Power PC Rouseville Rd 04
Image 21 of 72
Note the gasoline engine in the lower right once used to power this power house.
Picture 058
Image 22 of 72

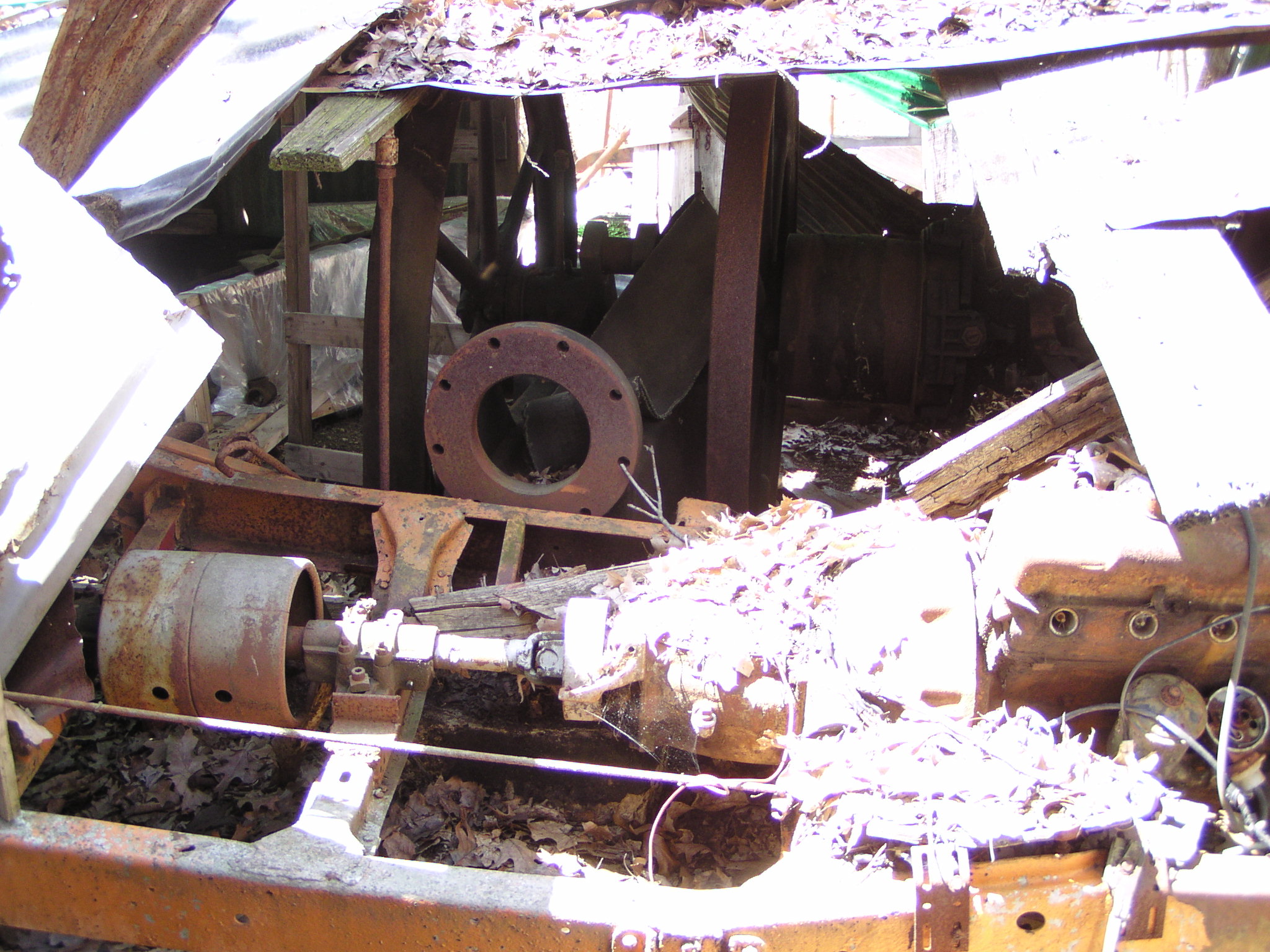

A gasoline engine and transmission modified to replace the natural gas piston engine.
belt-2
Image 23 of 72

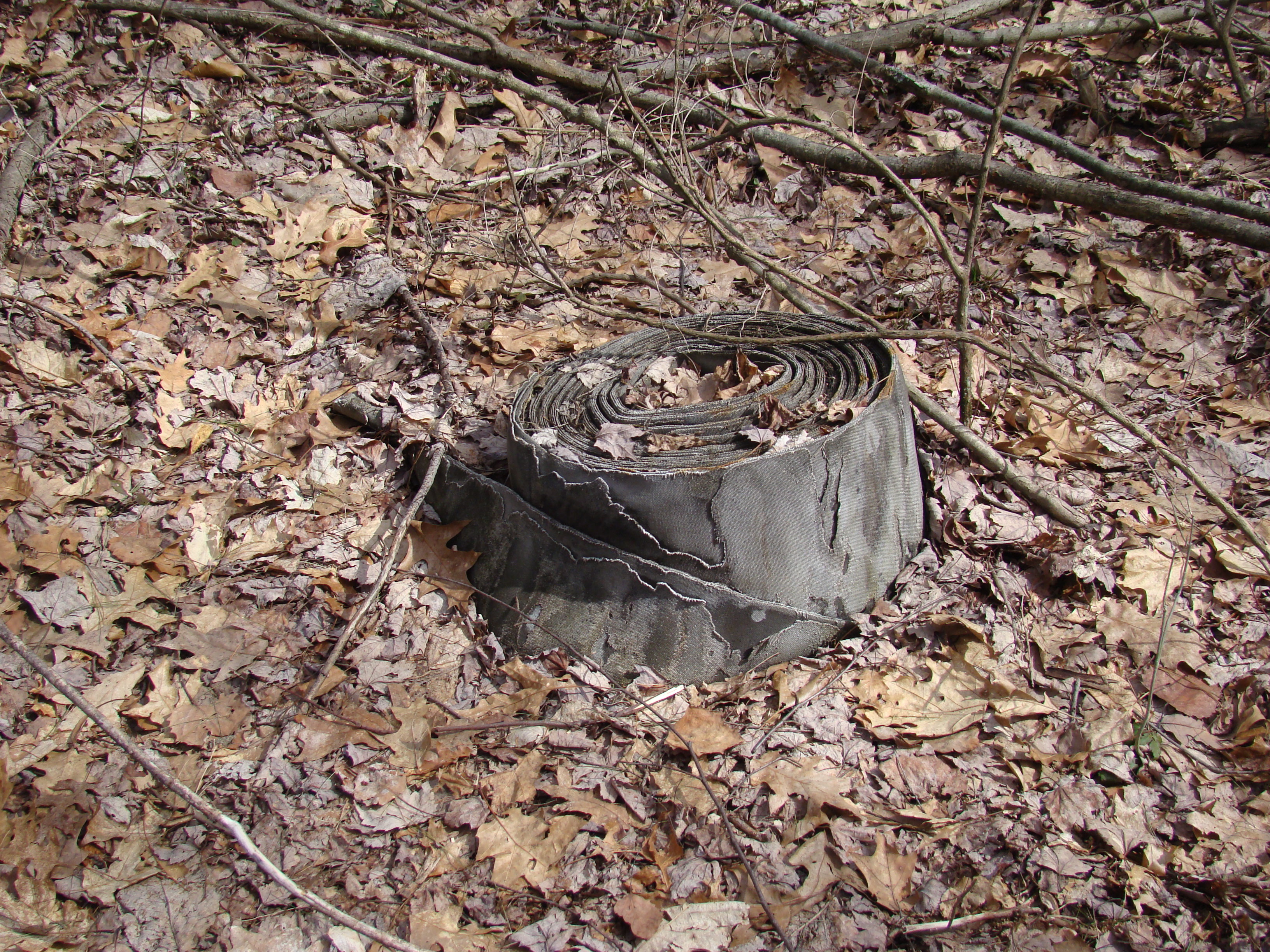

The remains of the old cloth belt used to connect the working parts.

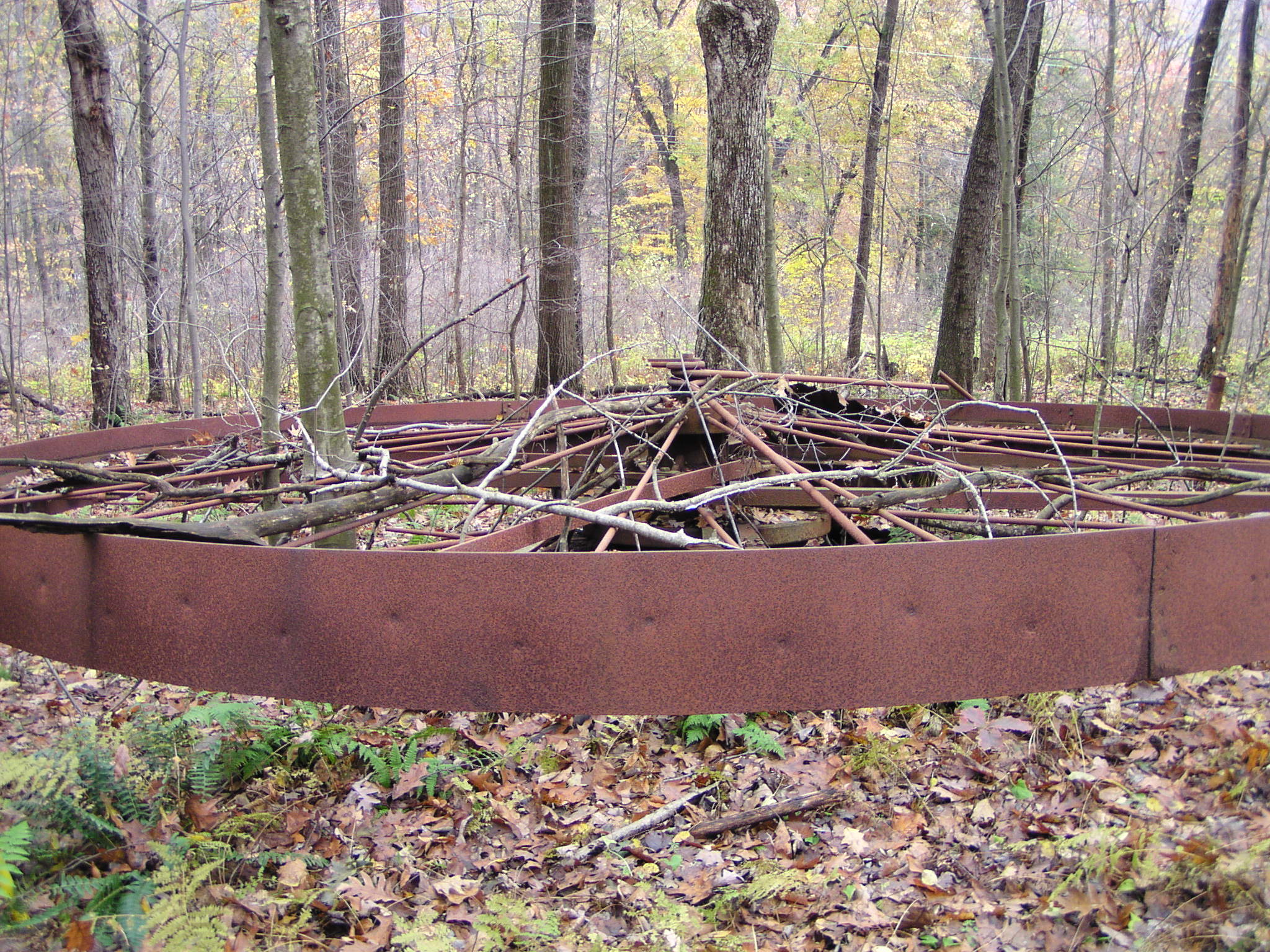

Rod line band wheel 01
Image 24 of 72
This band wheel has been abandoned for a long time. Note the tree growing up through the center.
Belt-gear 02
Image 25 of 72

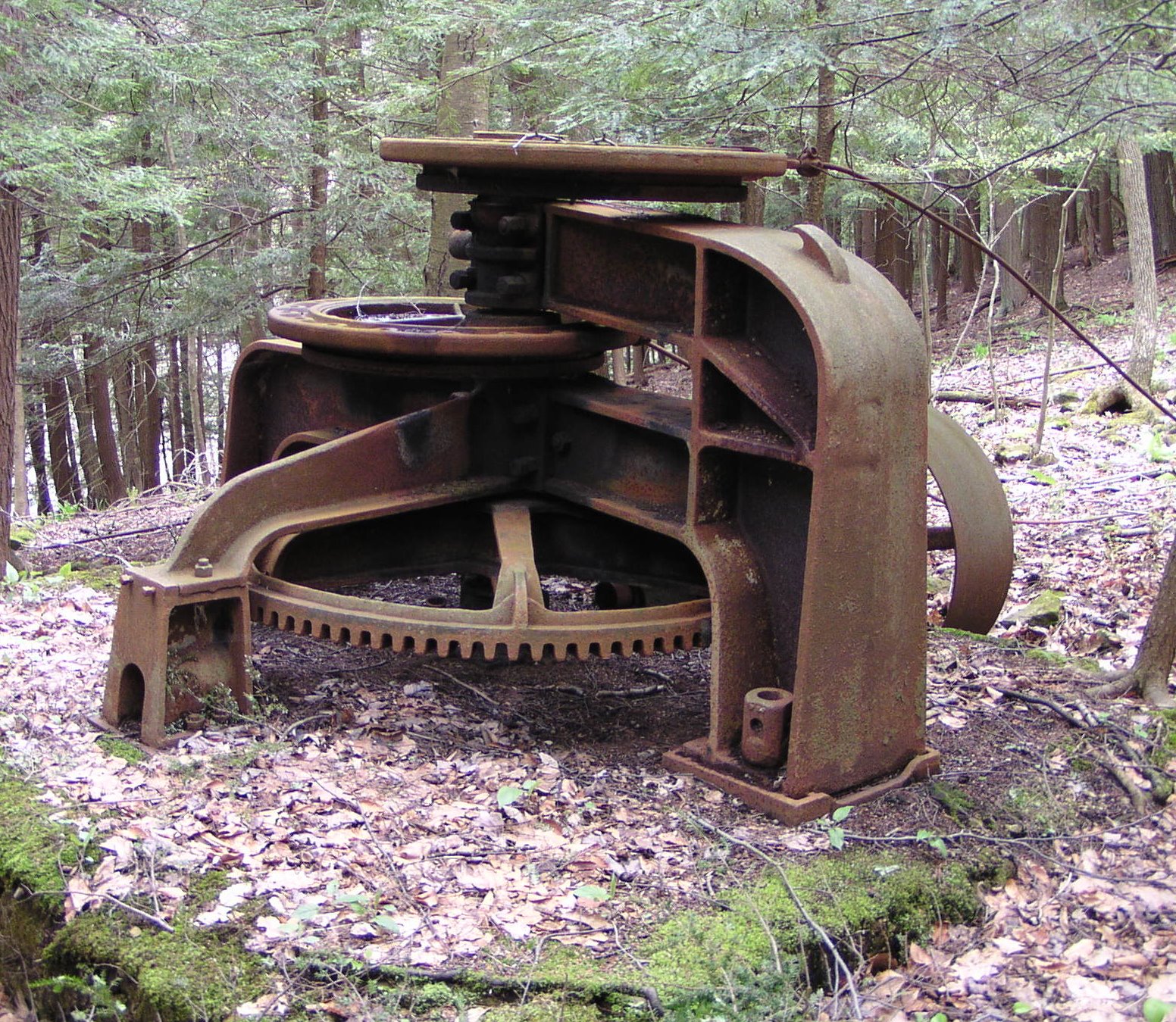

A geared eccentric with rod line removed.
excentric above PC-01
Image 26 of 72
A geared eccentric with rod lines still attached.

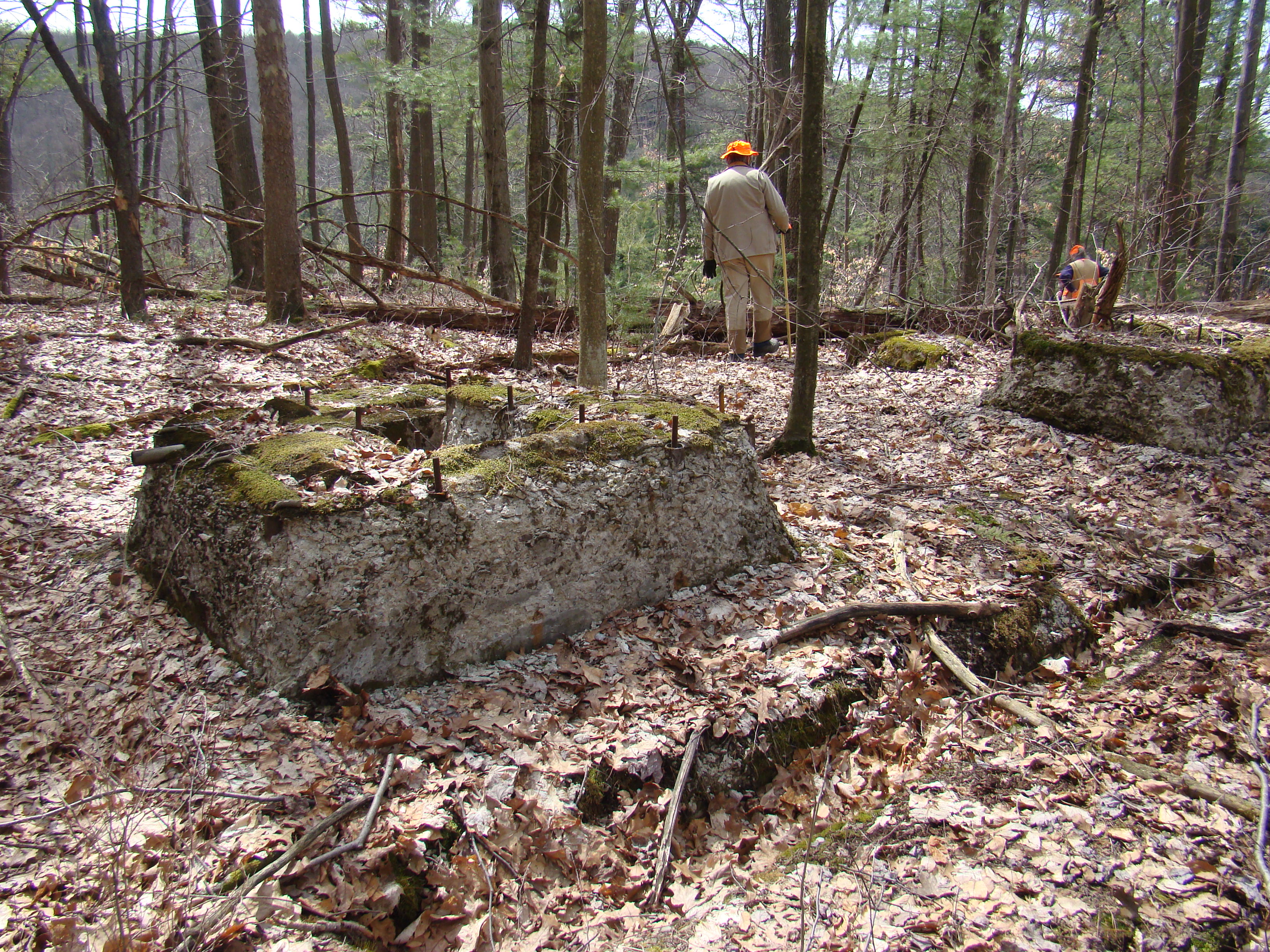

Foundations-2
Image 27 of 72
Only the mounting pads from this power house remain.

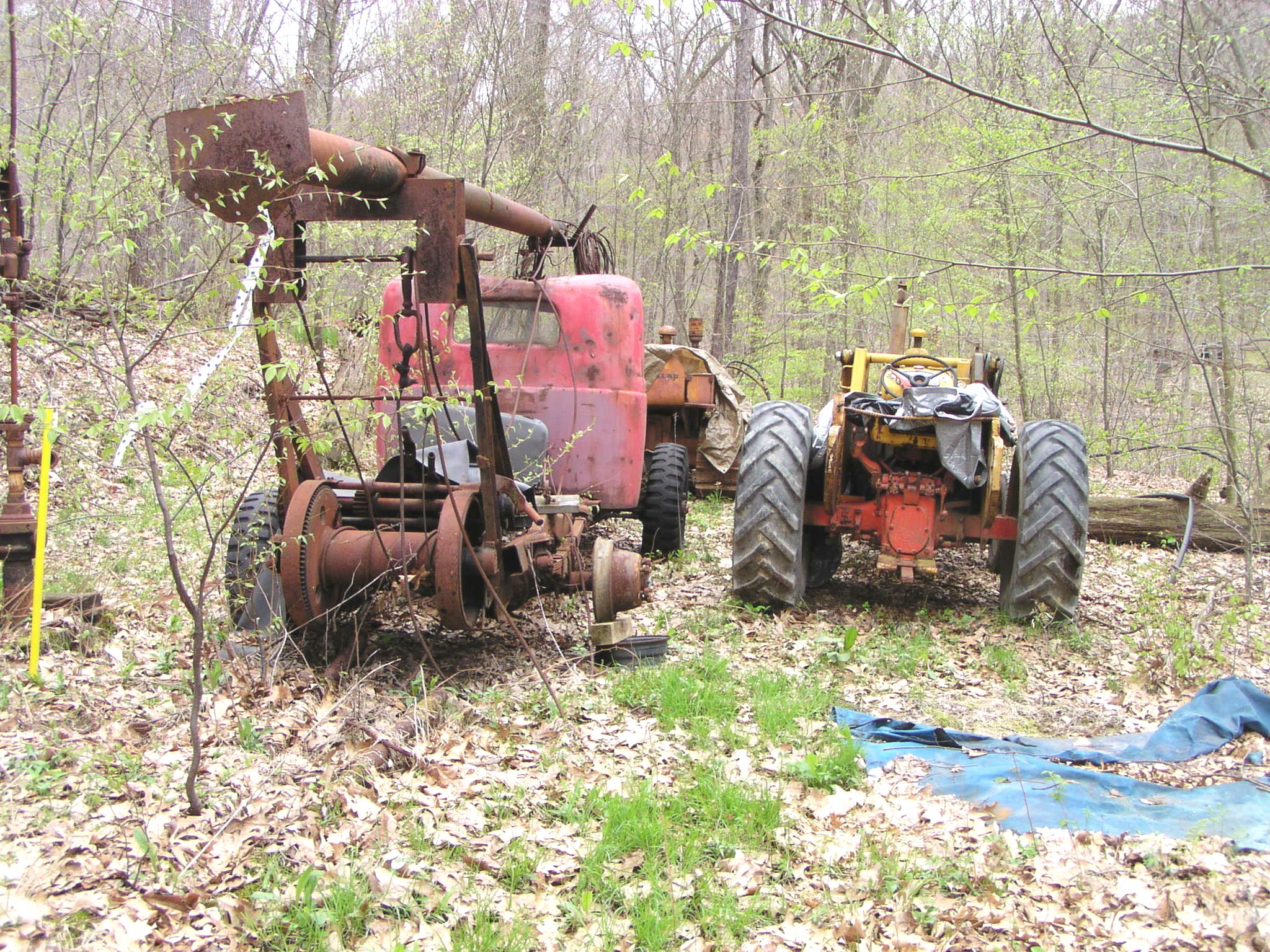

Picture 046
Image 28 of 72
But maybe we should start with the drilling rig used to spud the well into the ground.
OldWellPulling Rig 01
Image 29 of 72
Here a drilling rig sits abandoned.
Old Drilling rig 01
Image 30 of 72

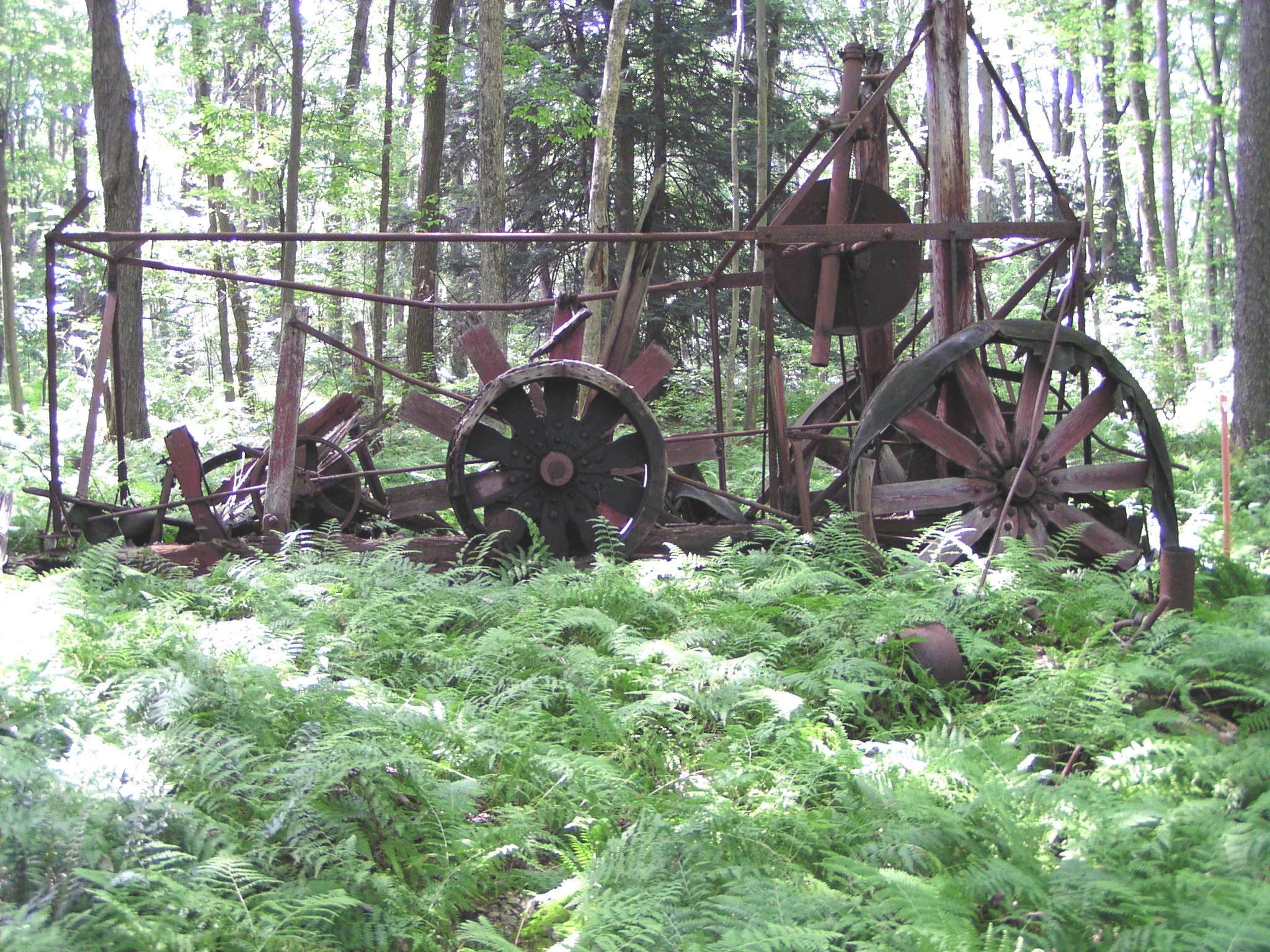

Early drilling rigs were made mostly of wood. Here a Wolf Rig sits in a field.
DSC07528
Image 31 of 72

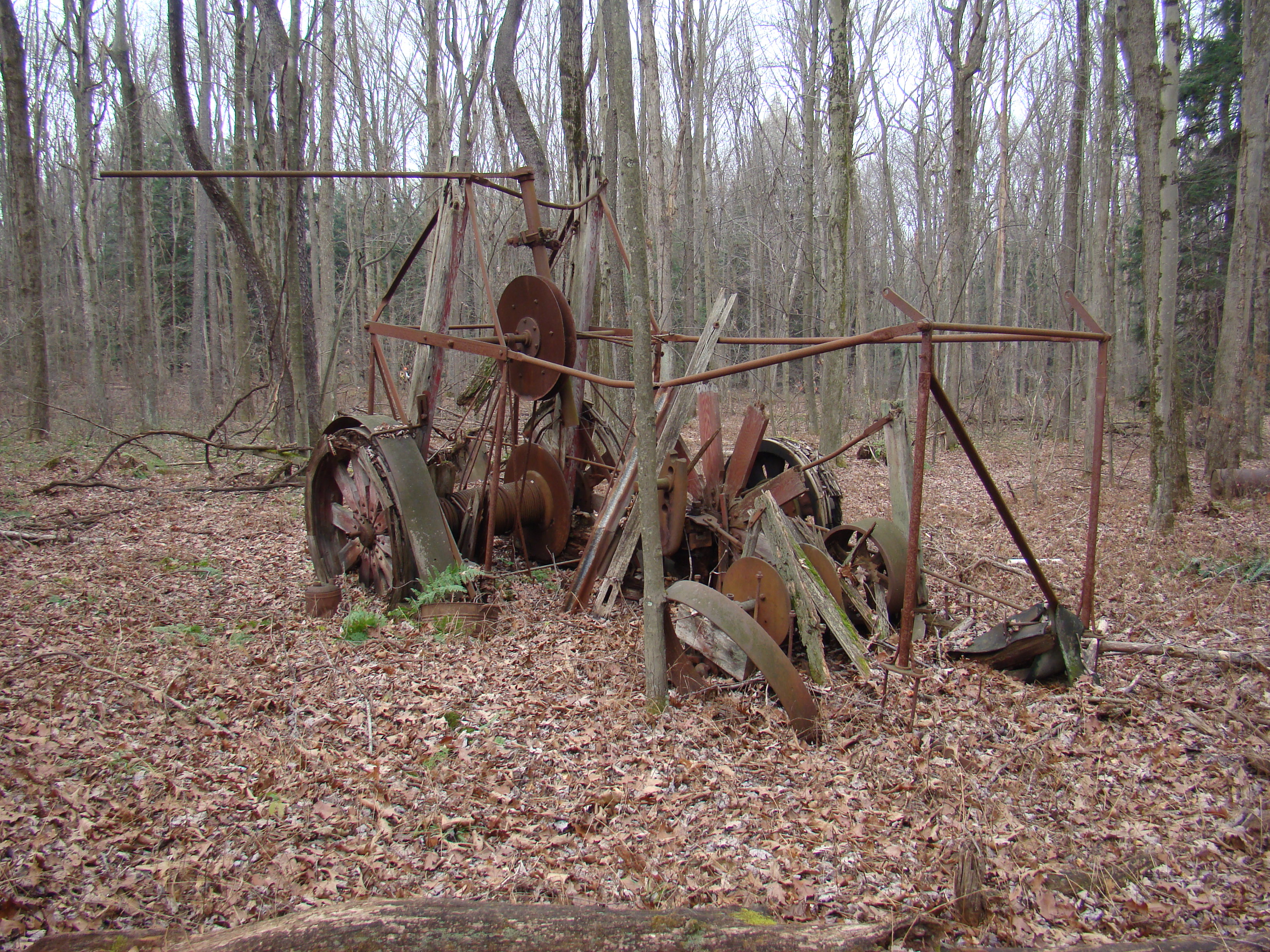

A Wolf Rig with most of the wood decayed.
WolfRigCowRun2
Image 32 of 72
Only portions of this Wolf Rig remain.
WolfRigCowRun3
Image 33 of 72
This Wolf rig is almost gone. It's hard to believe that these rigs were dragged through the woods by teams of horses.

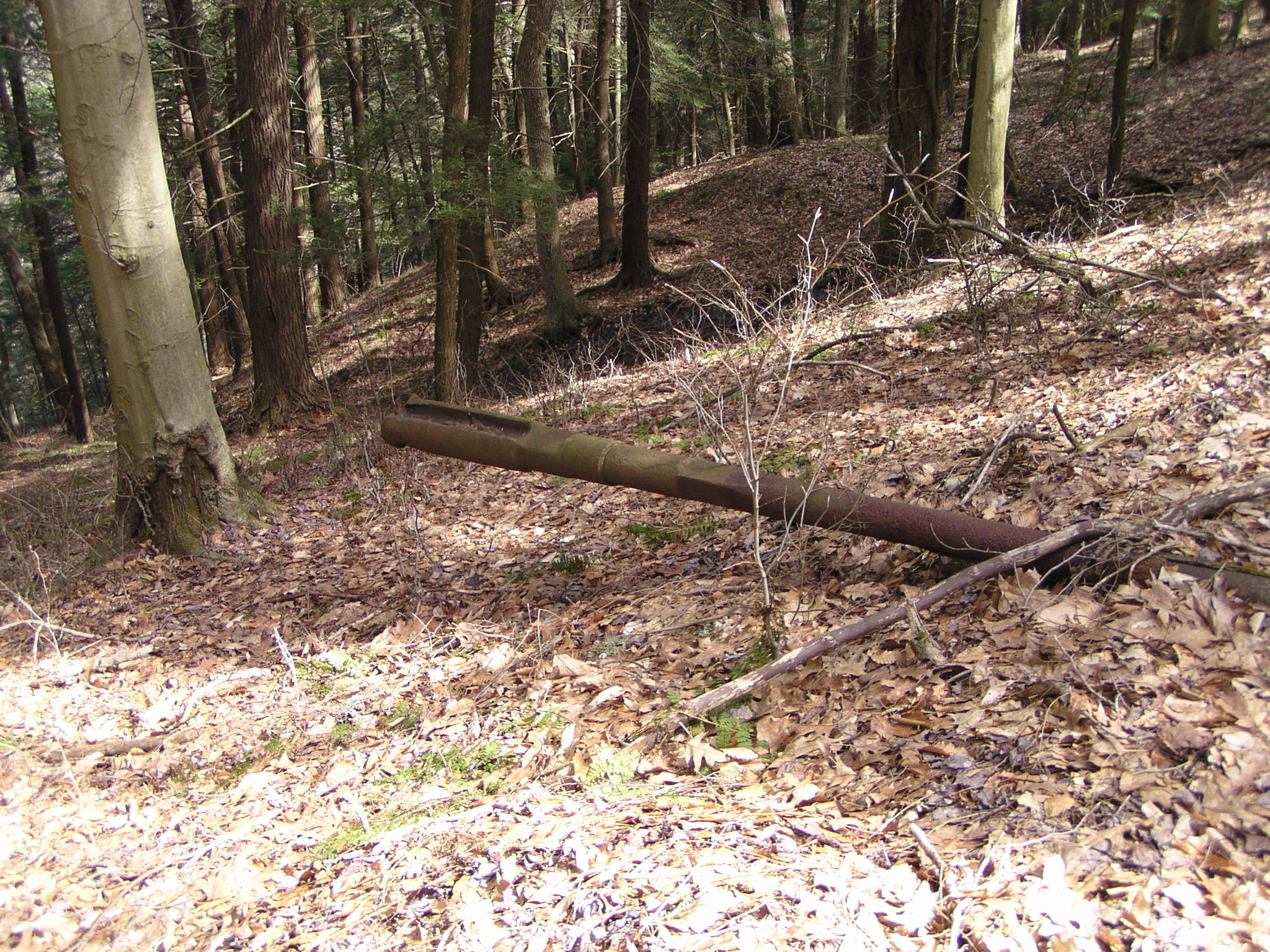

WolfRigBitCowRun1
Image 34 of 72
This is the spud bit from a Wolf Rig.

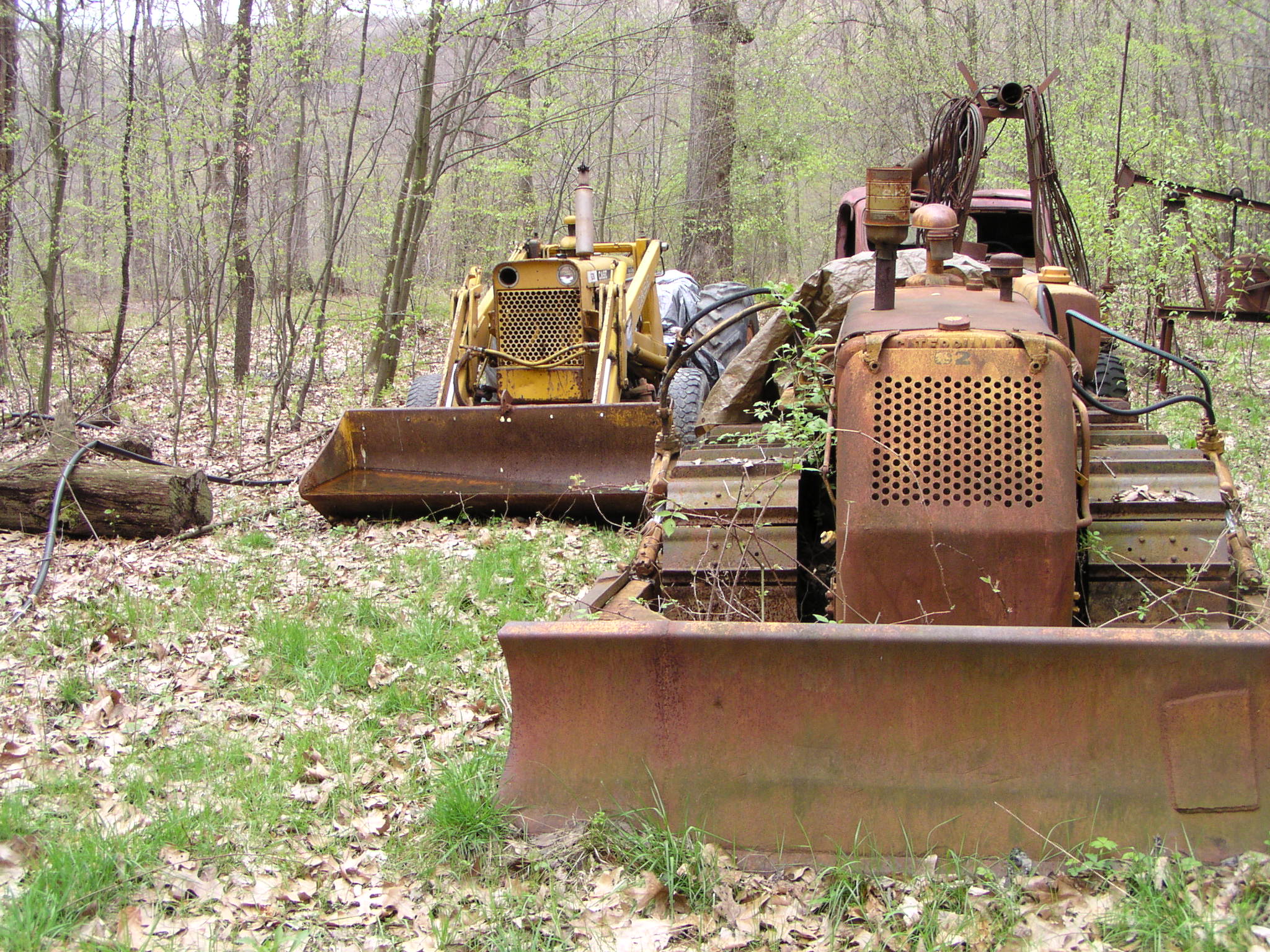

Picture 047
Image 35 of 72
Even the bulldosers and front loaders haven't survived.
pumpJack01
Image 36 of 72
Once drilled, the well was connected to a pumping jack.

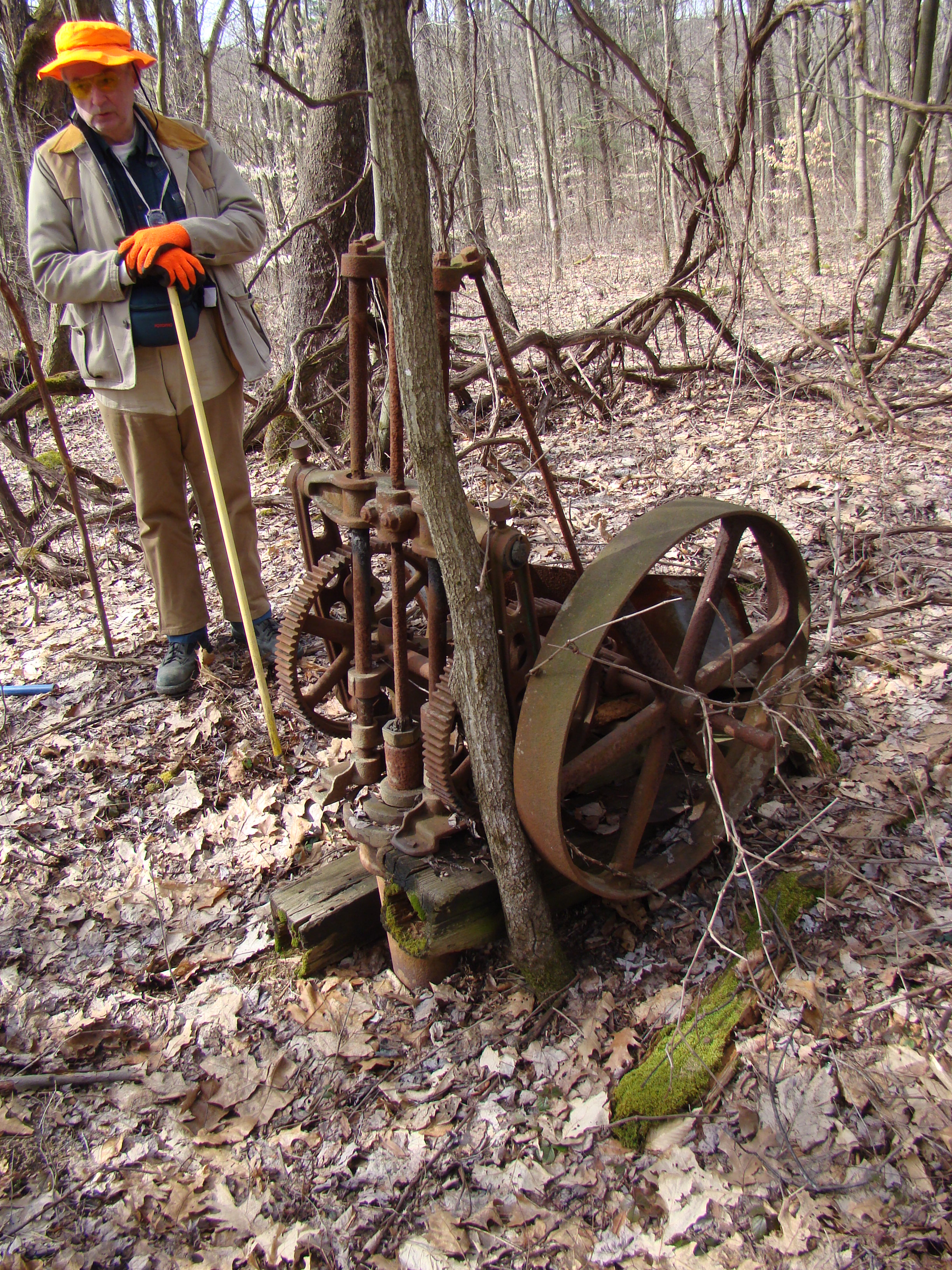

DSC07830
Image 37 of 72
A really strange pumping jack.
DSC07831
Image 38 of 72

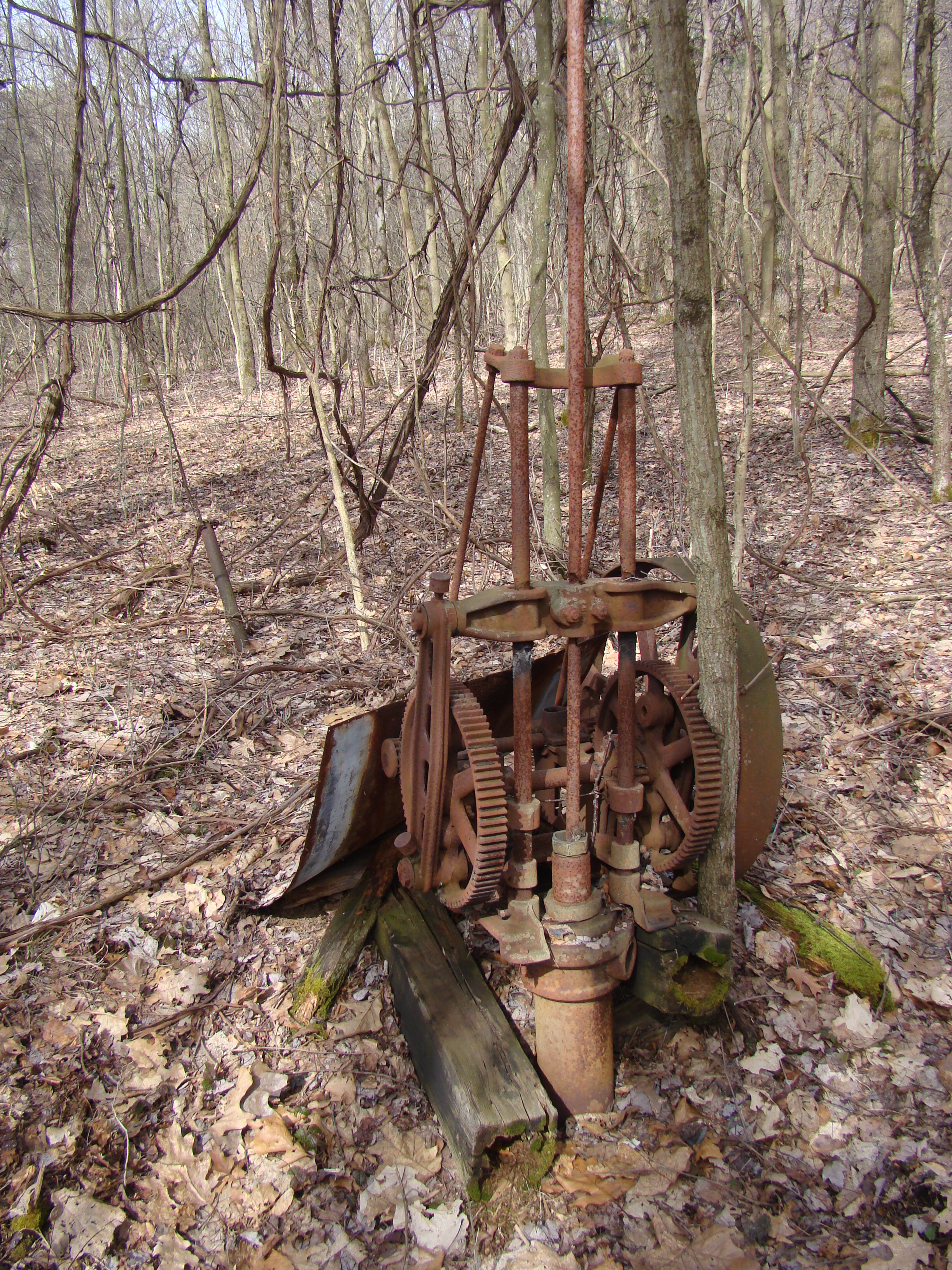

Another view.

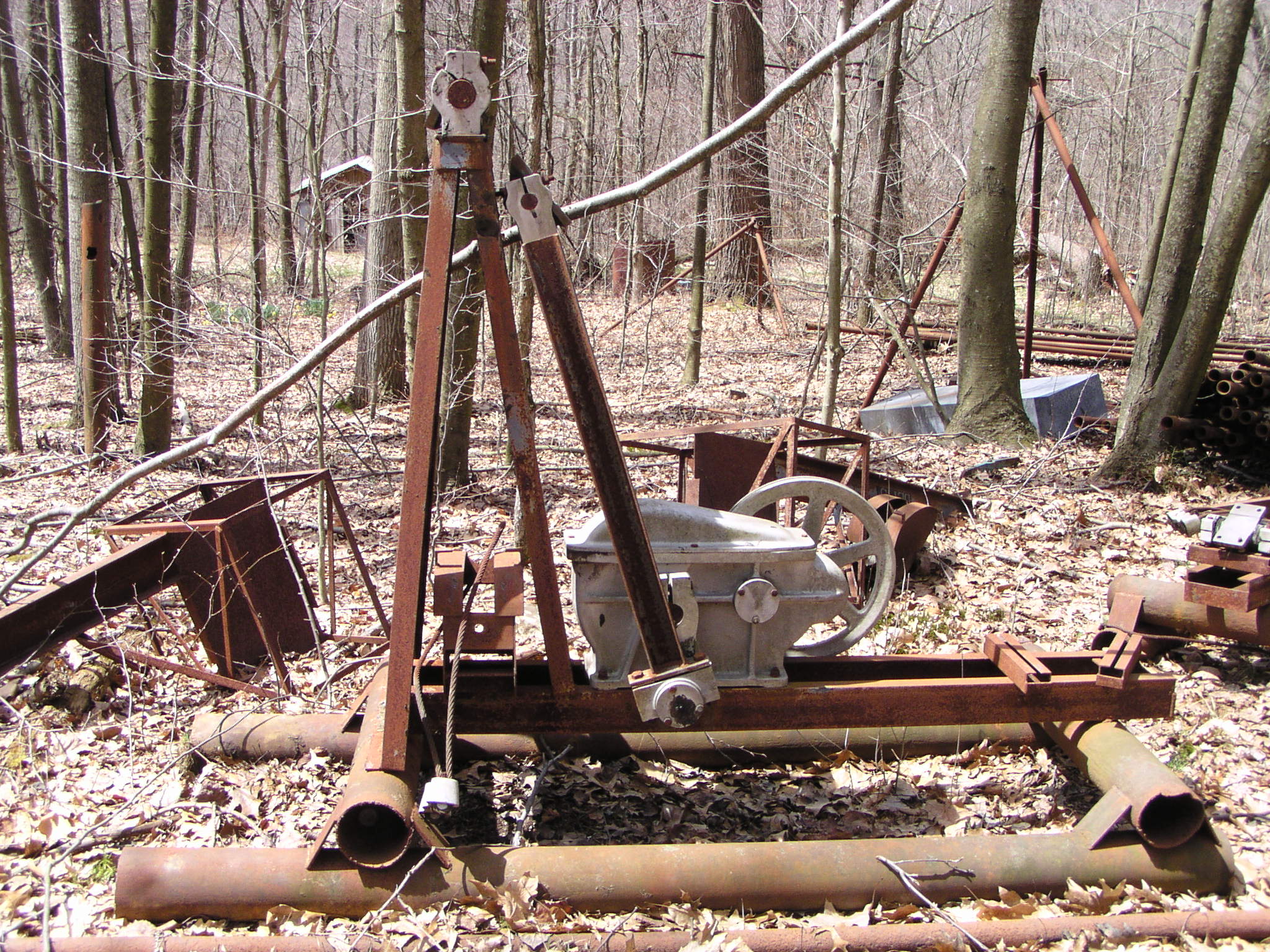

Pump jacks - 02
Image 39 of 72
A relatively modern pumping jack powered by an electric motor (missing in this photo).

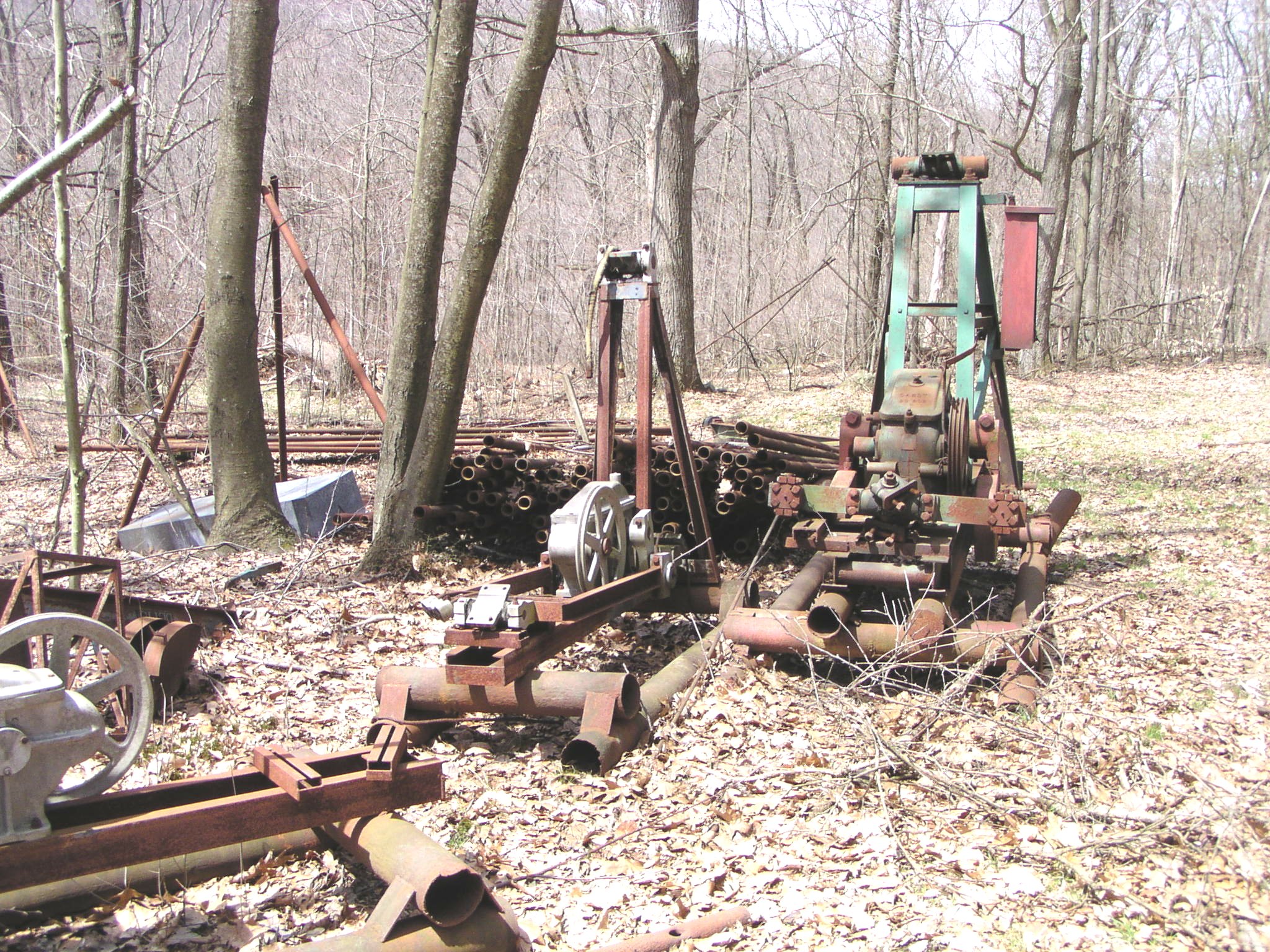

Pump jacks - 03
Image 40 of 72
The grave yard of oil field items.
Tanks Wood  01
Image 41 of 72

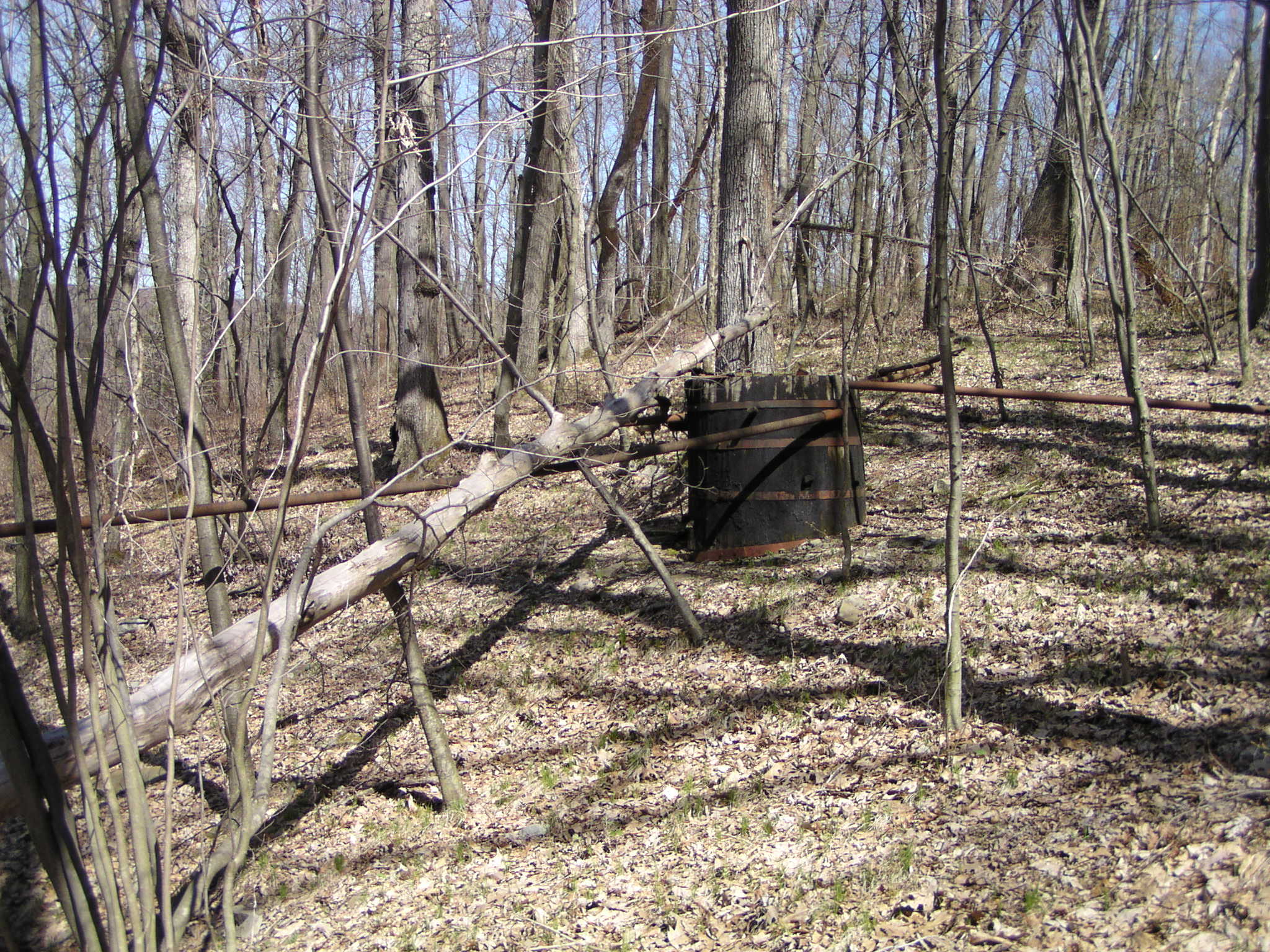

Once drilled, the well was connected to a storage tank. Early tanks were made of wood.

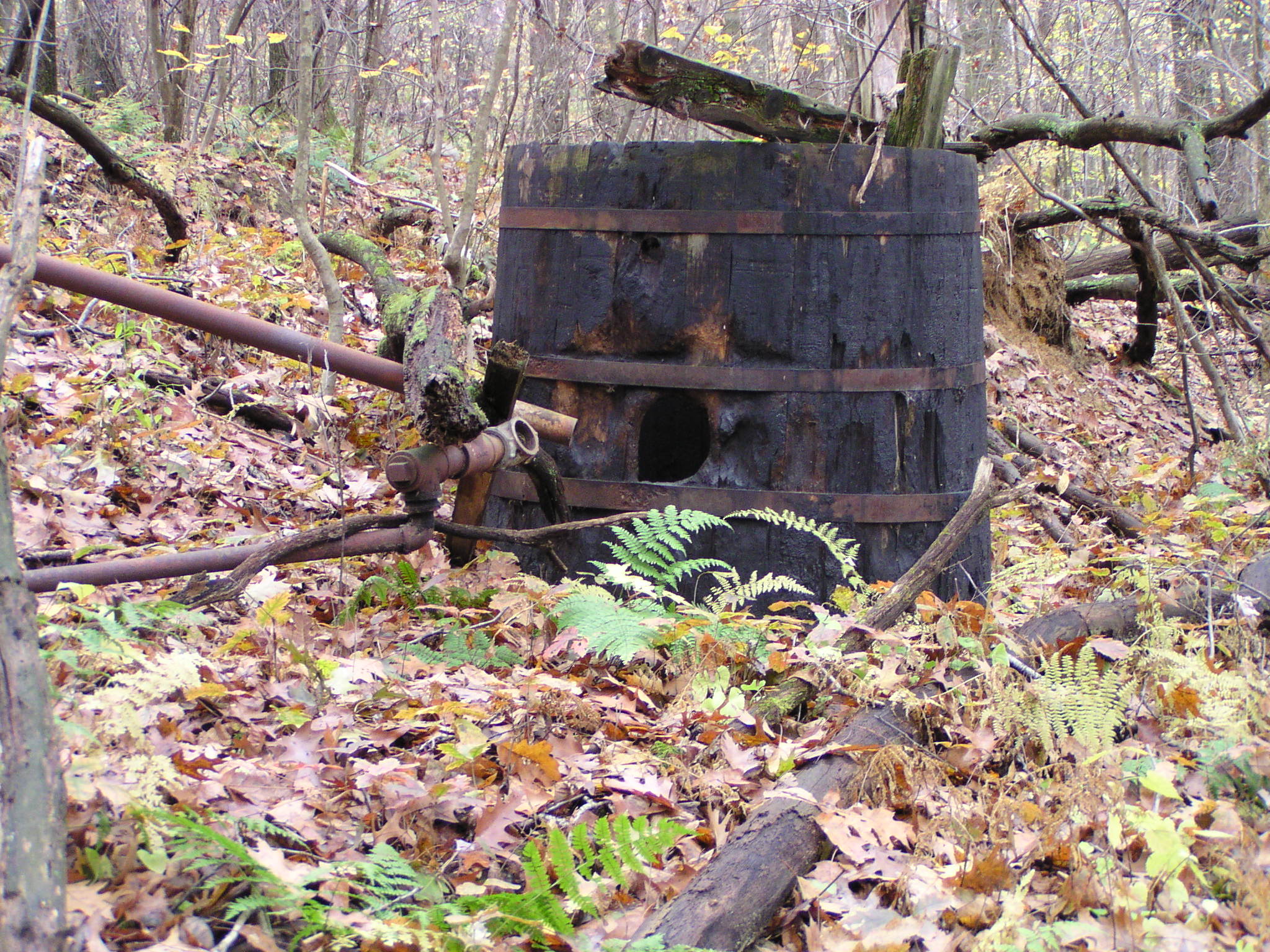

Wood Tank 10-28 104
Image 42 of 72
The oil and brine soaked into the wood and helped to preserve it.

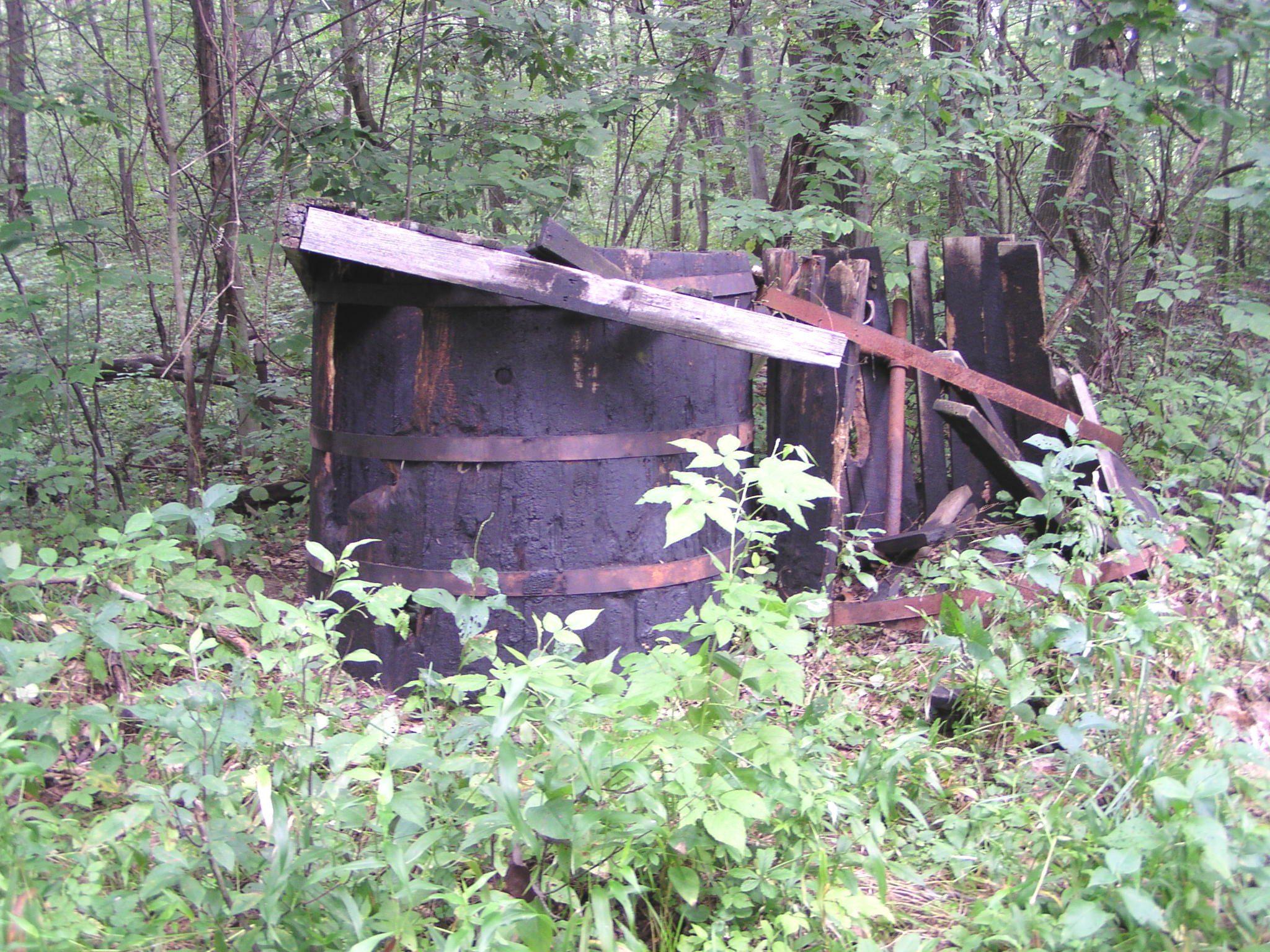

Wood Tanks-04
Image 43 of 72
Some survive better than others.
Large wood tank

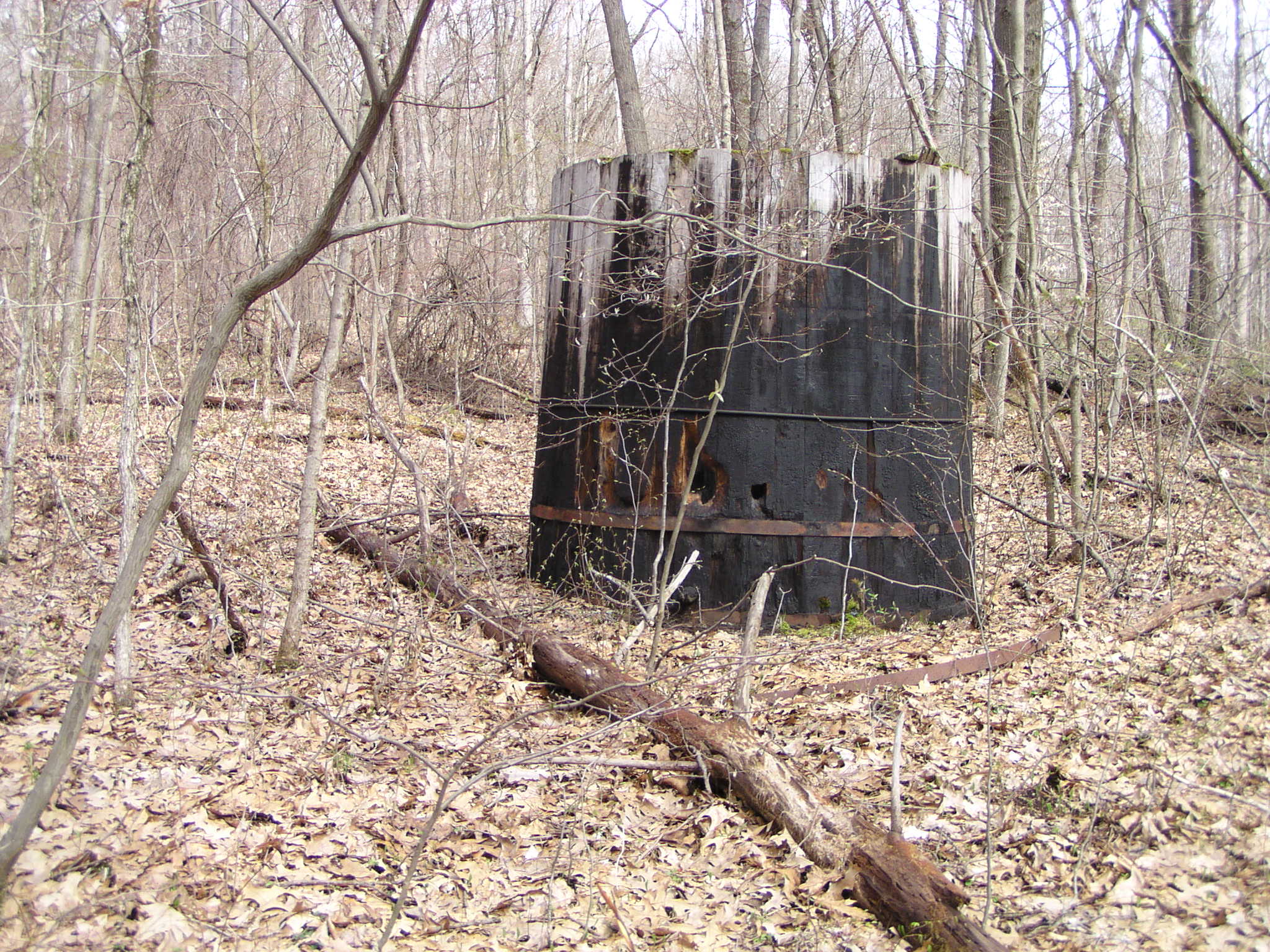

Image 44 of 72
Some show the signs of animals.
Picture 005
Image 45 of 72

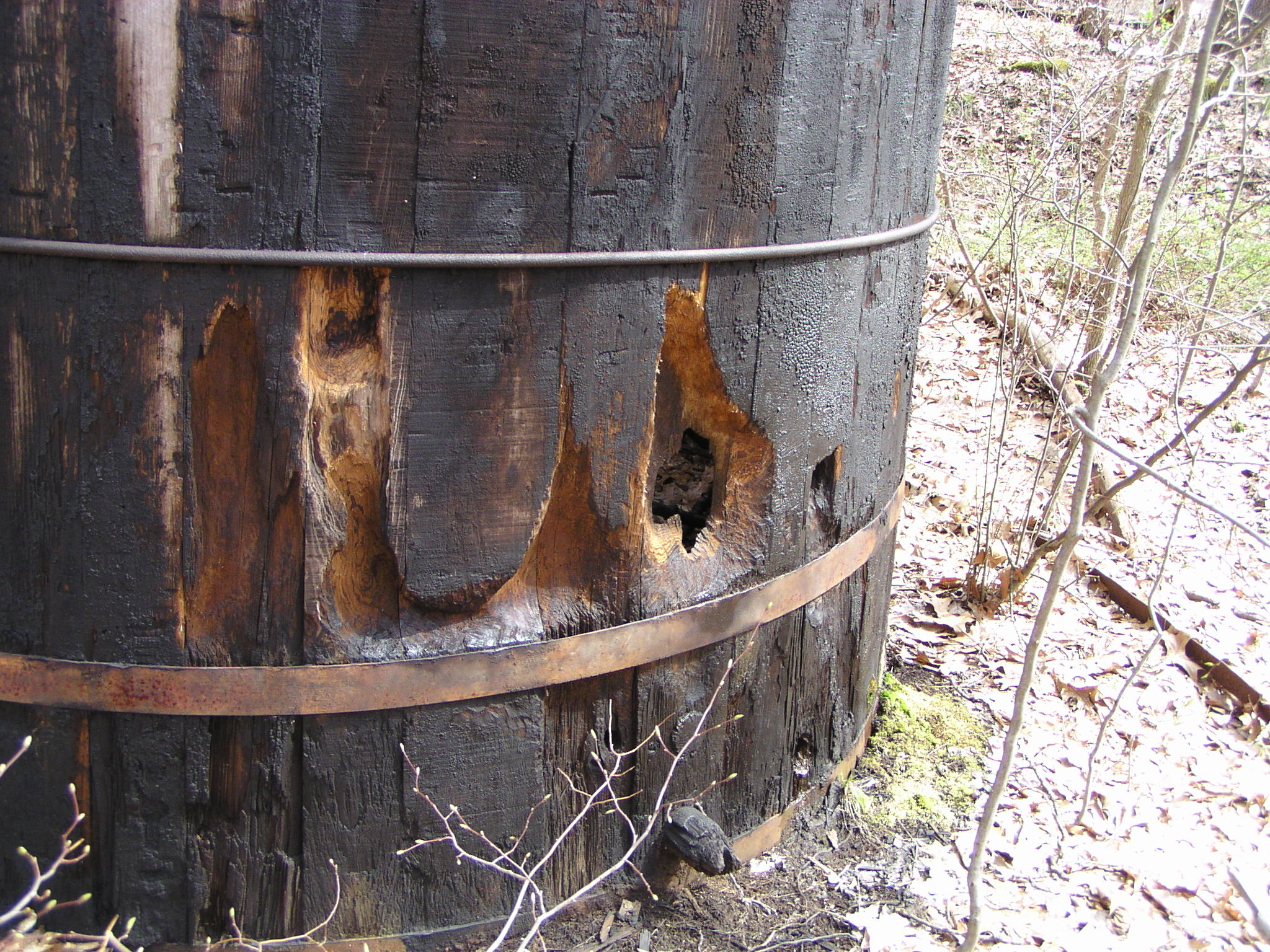

Porcupines chew the wood to get the salt from the brine.

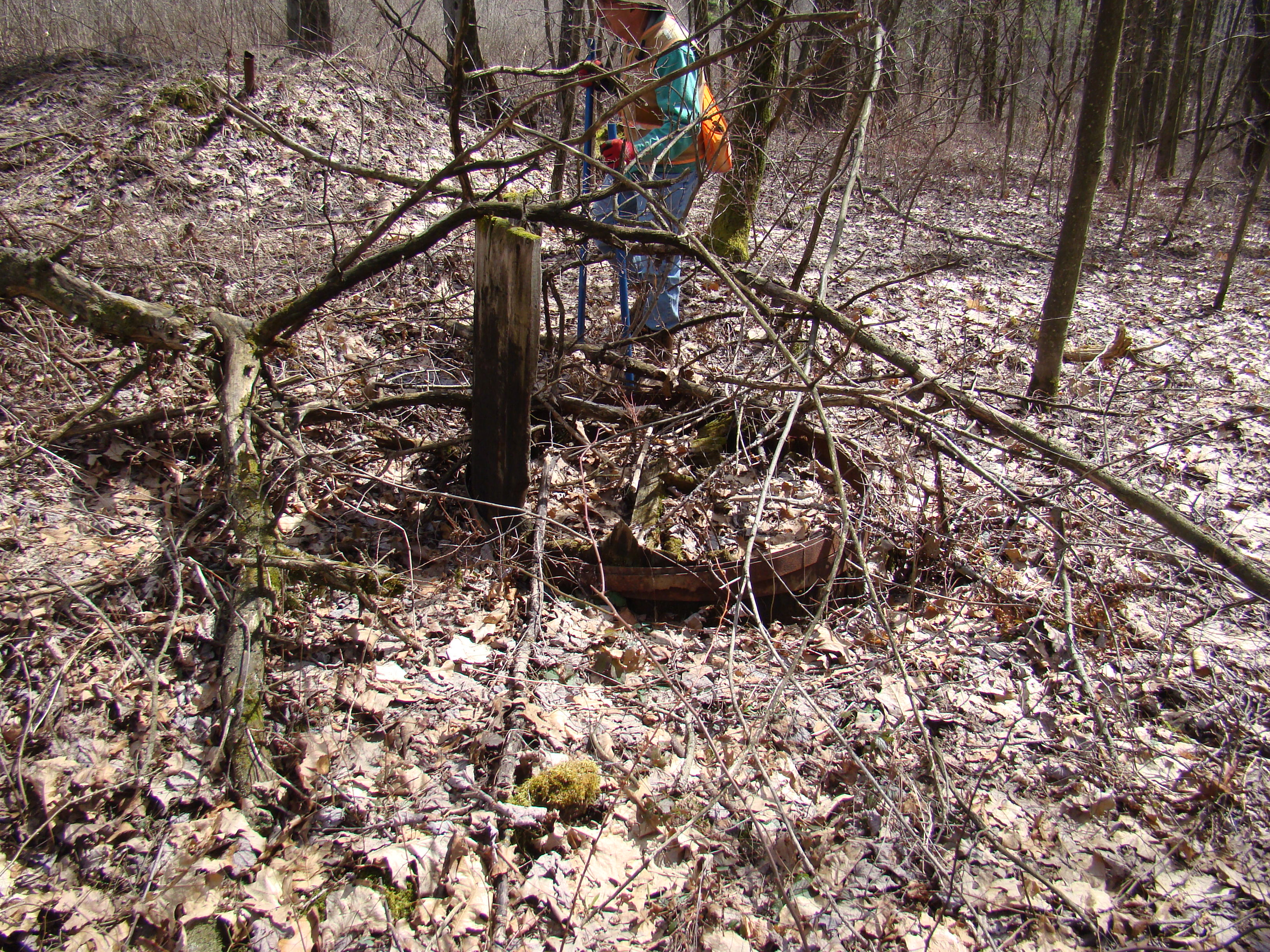

TankBands2
Image 46 of 72
Some wooden tanks loose the battle and all that remains are the metal bands.
Metal Tank 01
Image 47 of 72

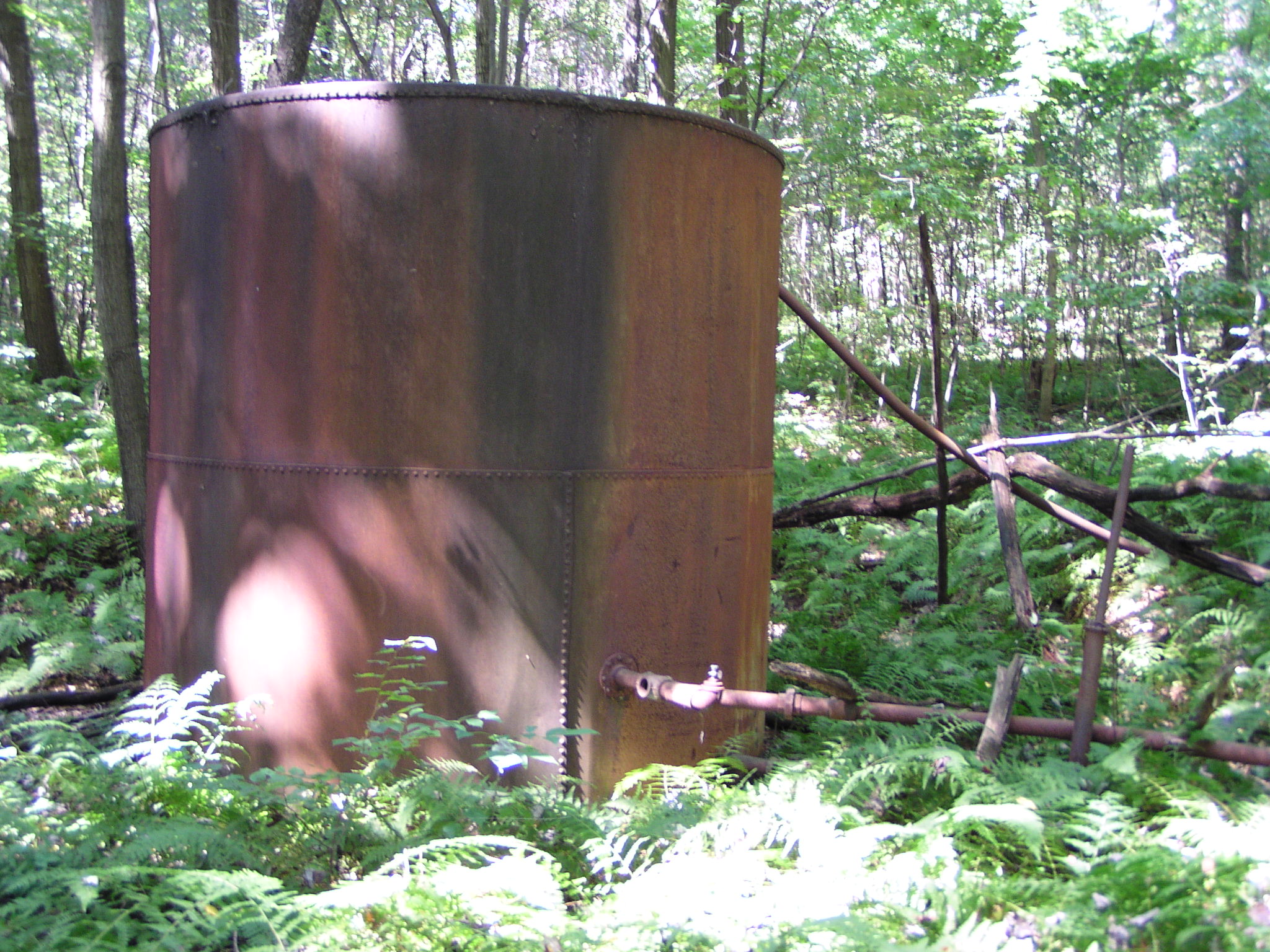

Metal tanks are from a more recent era.
Tanks Wood and Metal 03
Image 48 of 72
Wood and metal tanks are often found side by side.
tank metal1
Image 49 of 72

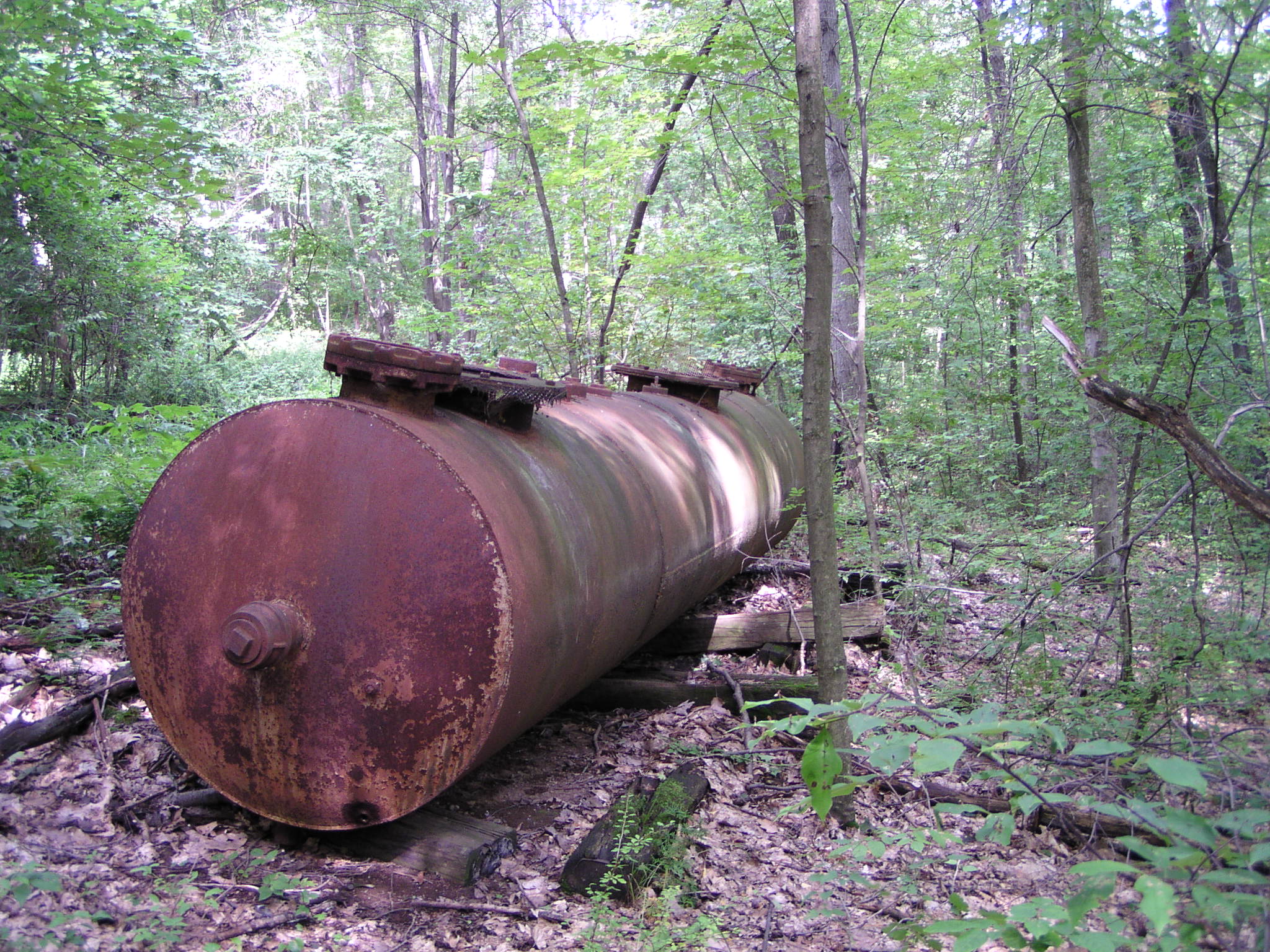

A strange storage tank.
DSC07835
Image 50 of 72

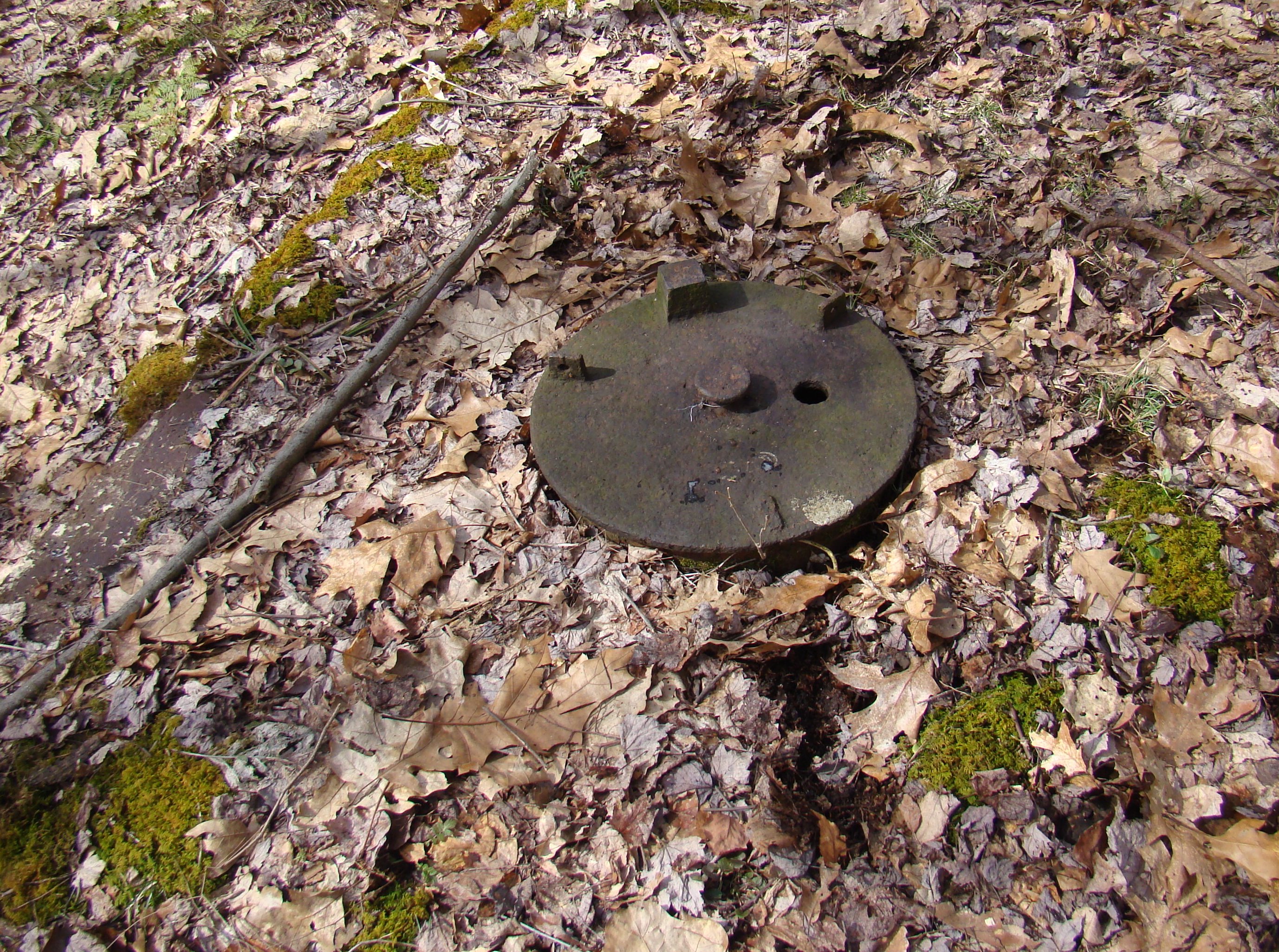

Some tanks were built into the ground.
DSC07832
Image 51 of 72

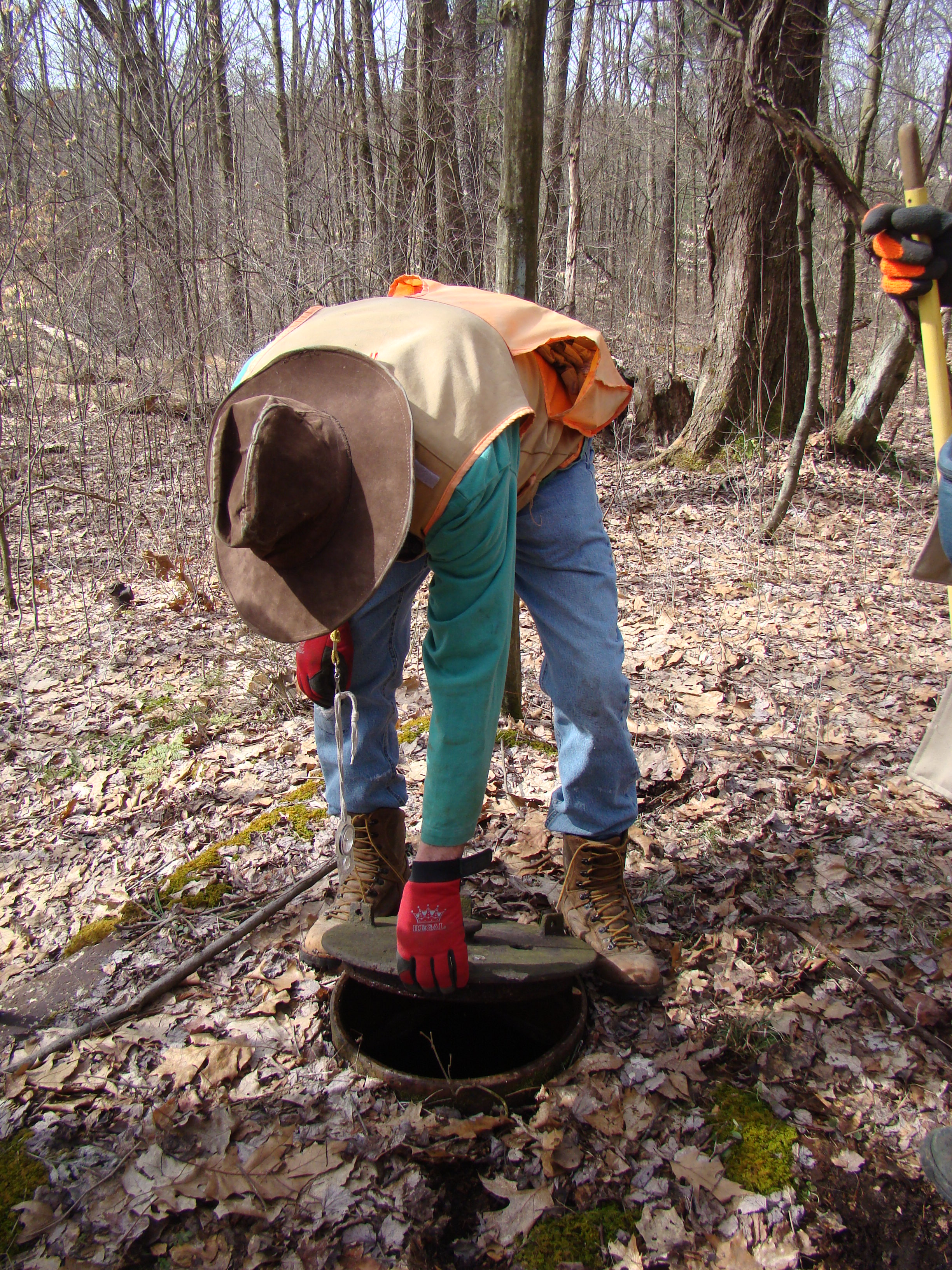

A well hunter lifting the lid of an underground tank.
Pipe line 002
Image 52 of 72

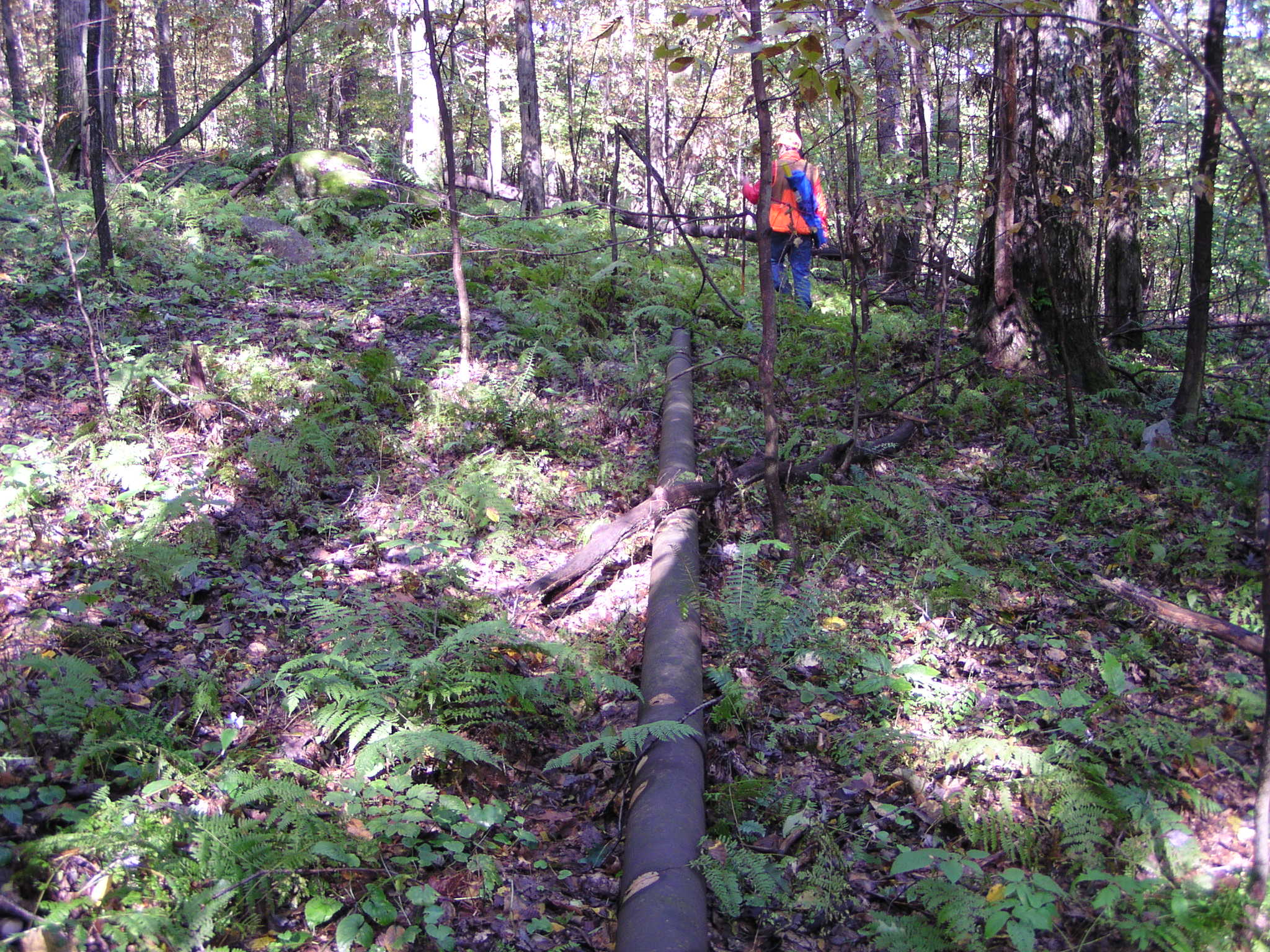

An above ground trnsmission line.
OF stuff-5
Image 53 of 72

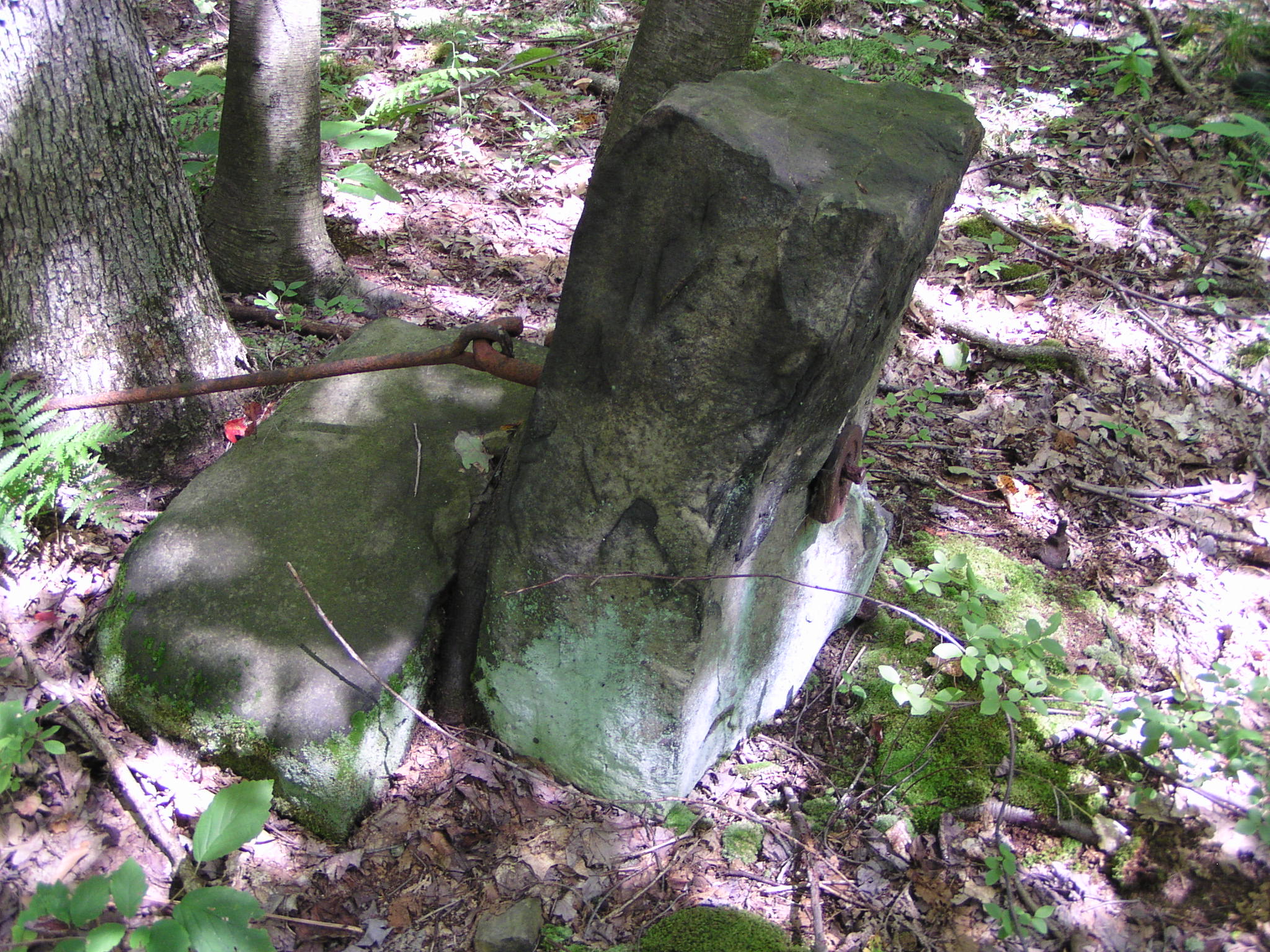

The rod lines that connected the pump house to the well have their own story.
Rod line anchor
Image 54 of 72

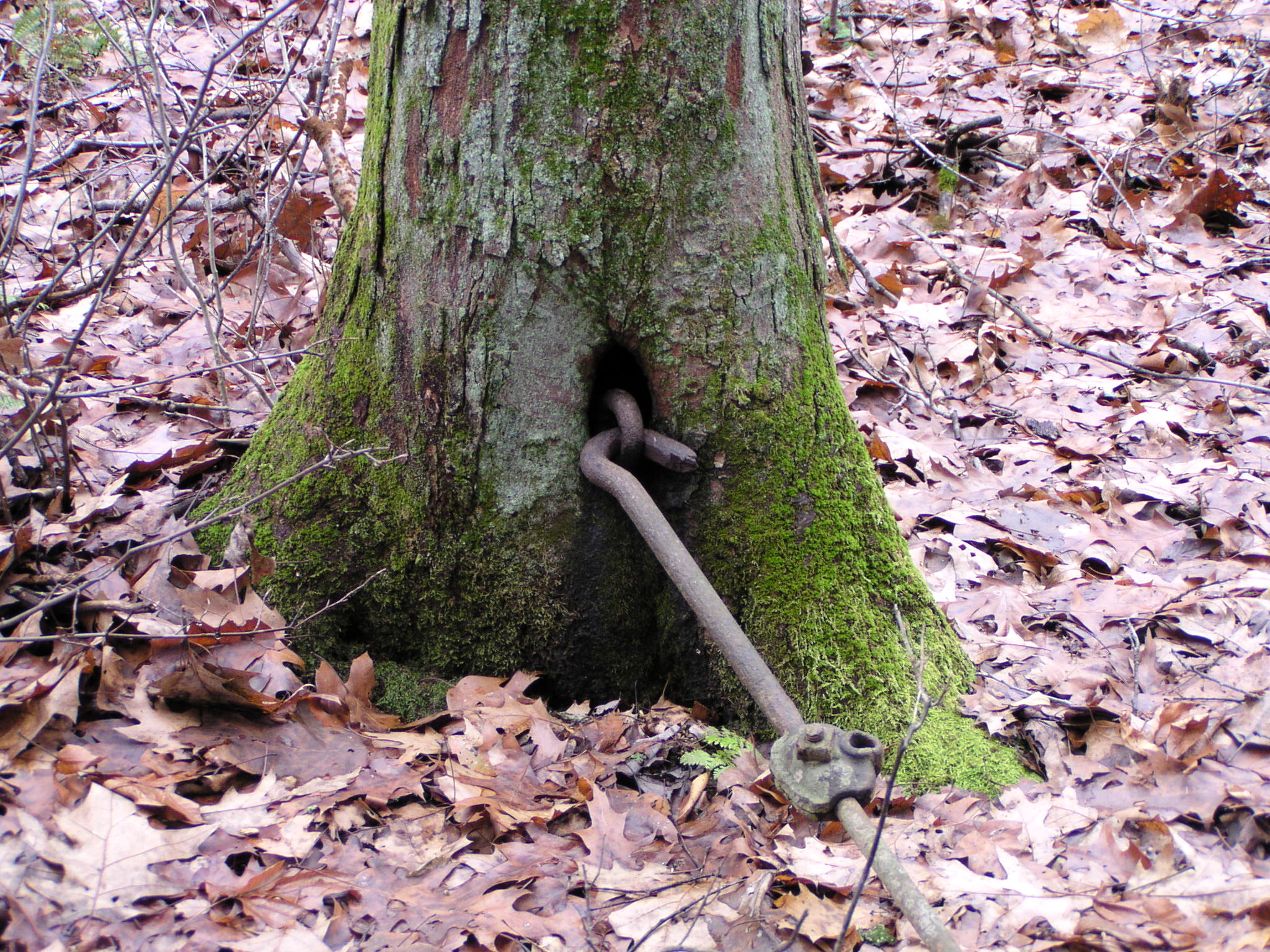

Stones and trees were used as anchors for rod line connectors.

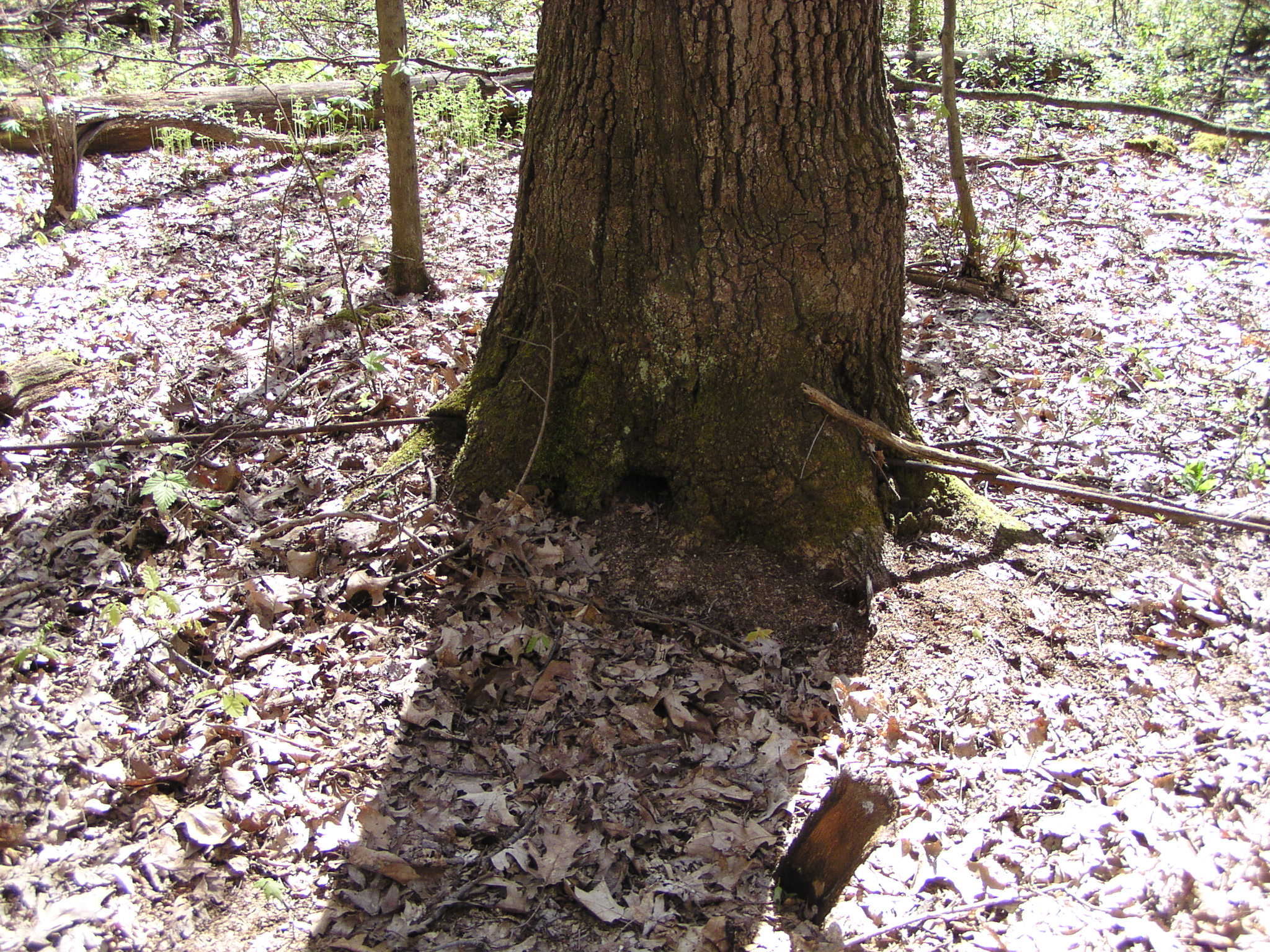

RodLine in tree 01
Image 55 of 72
Trees have grown over rod lines.

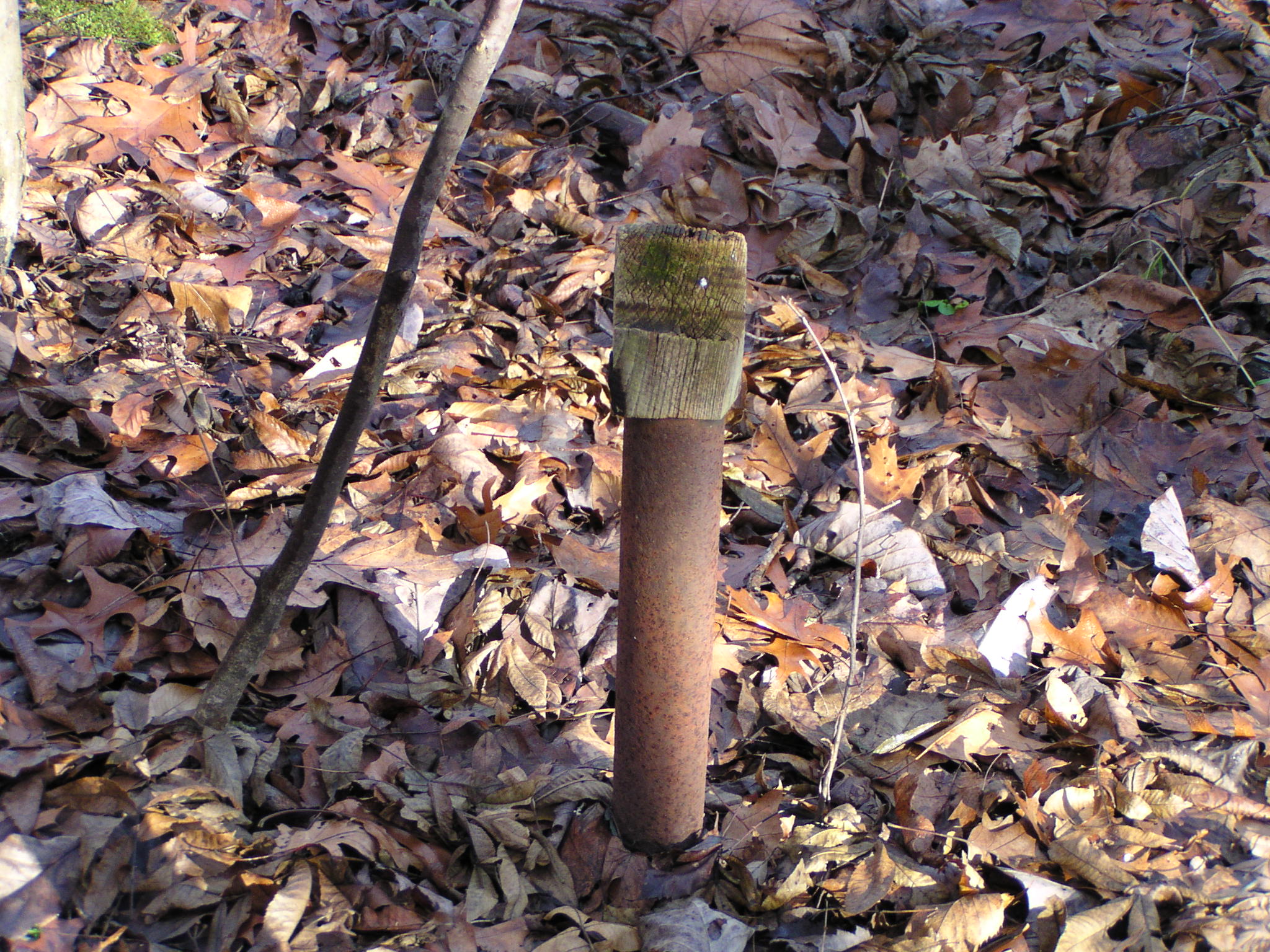

Rod Line guide w wood block 02
Image 56 of 72
A vast system of supports and hangers kept the rod lines off the ground.

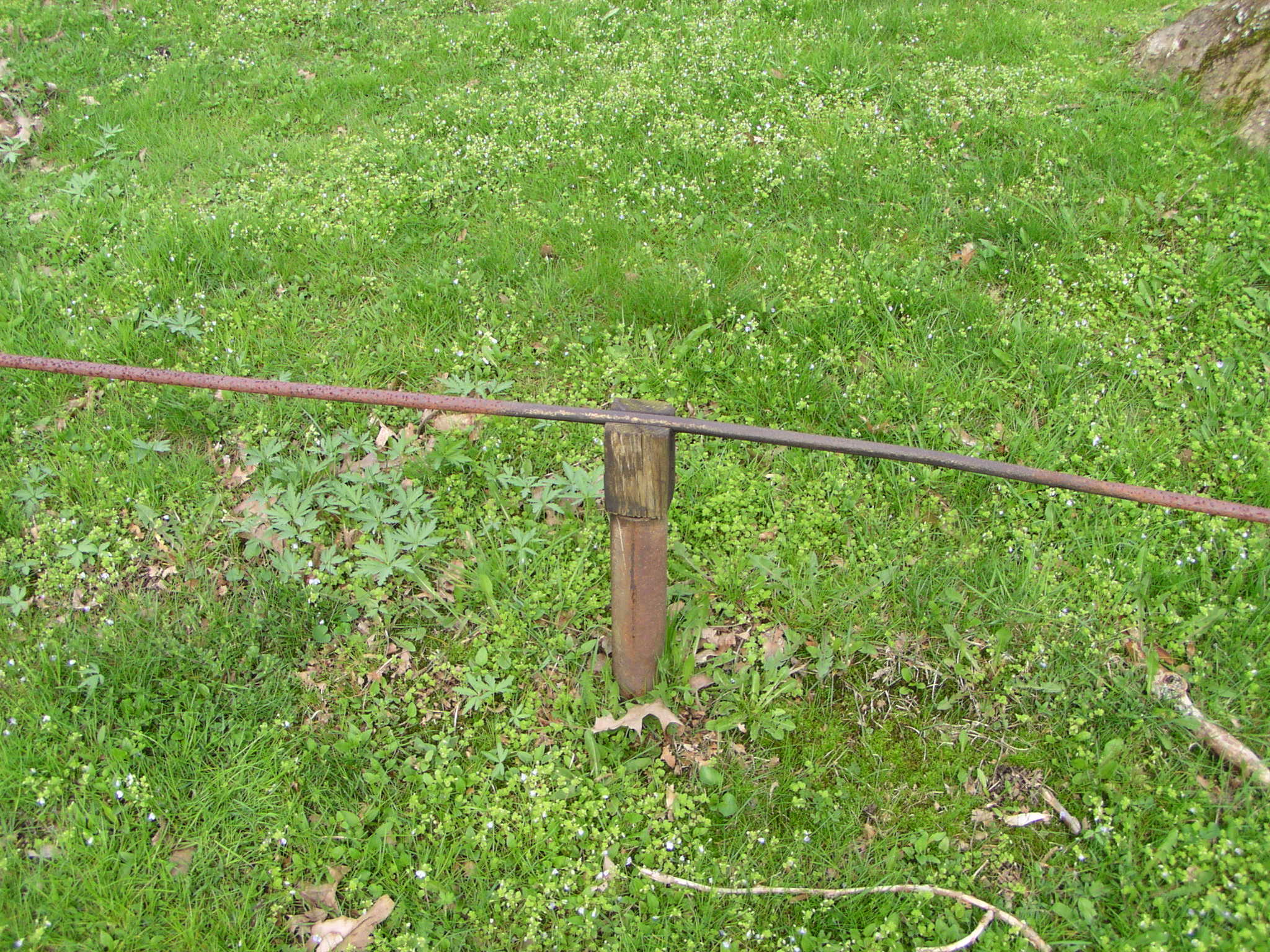

Rod line guide
Image 57 of 72
Here a photo, from the Drake Well Museum grounds, shows a rod line supported by a pipe and knotched wood block.
DSC07846
Image 58 of 72

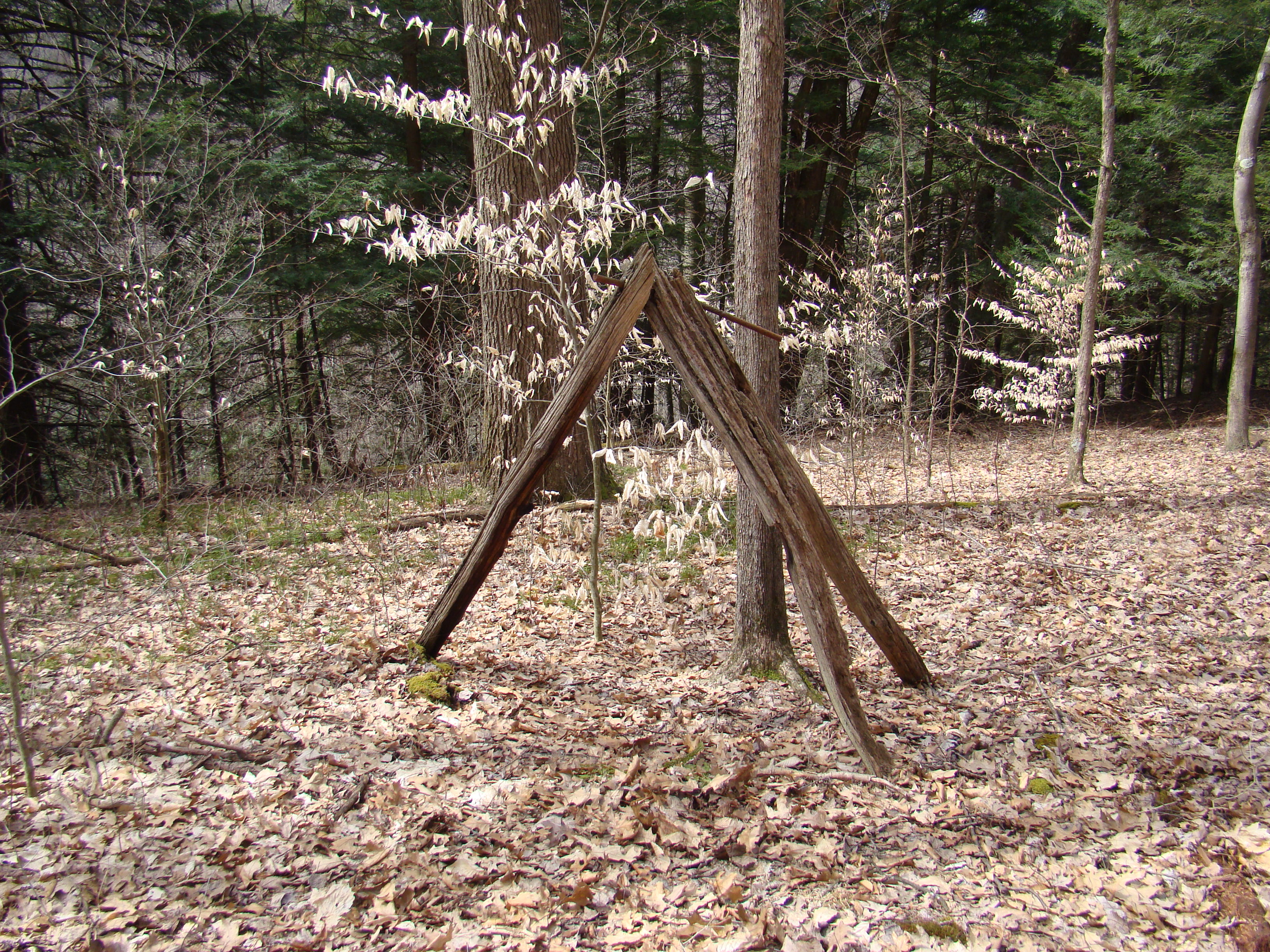

A rod line support tower made of split chetnut logs.
Rod line tower3
Image 59 of 72

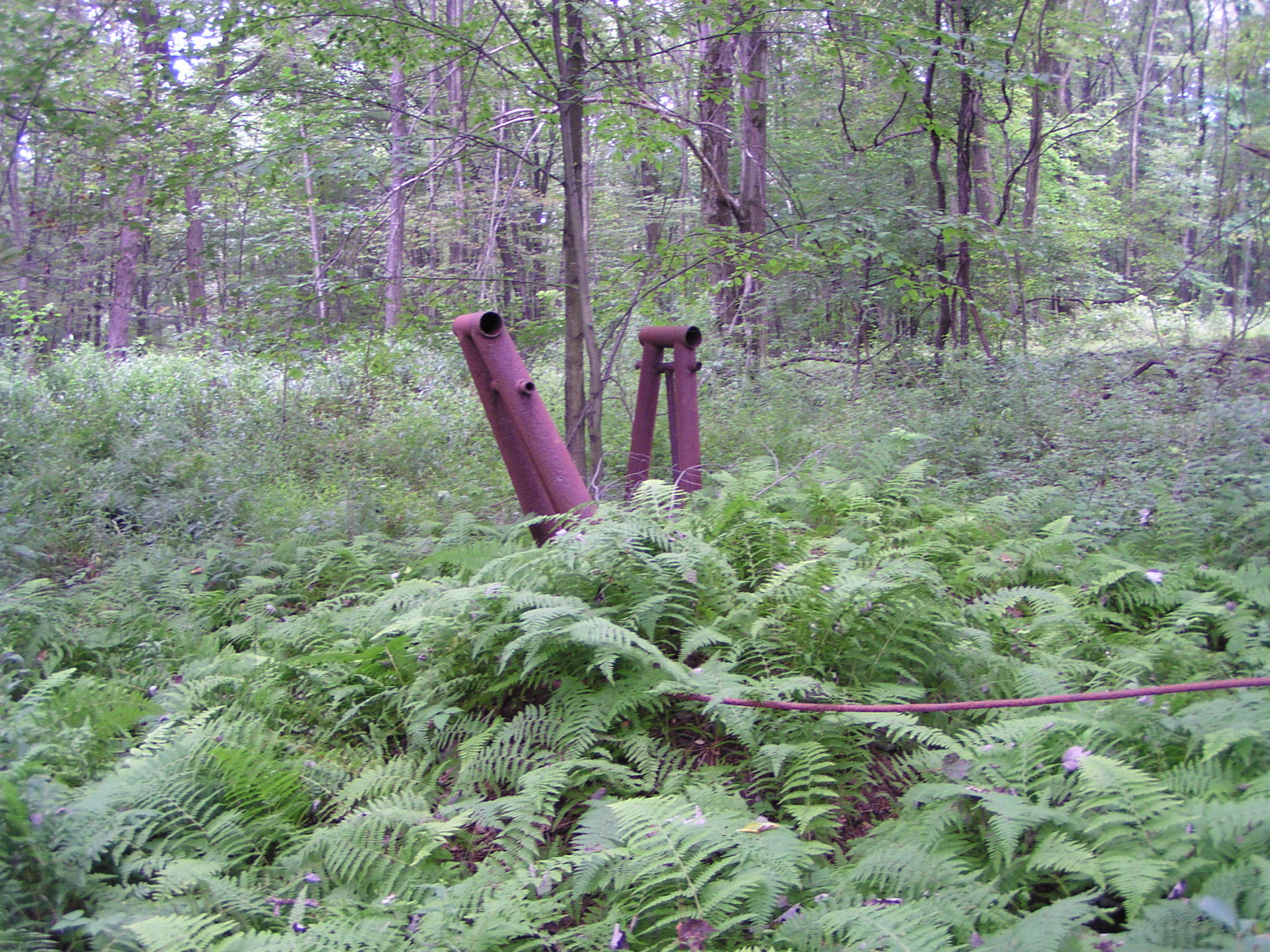

Metal rod line support towers.
Spoke wheel rig 02
Image 60 of 72

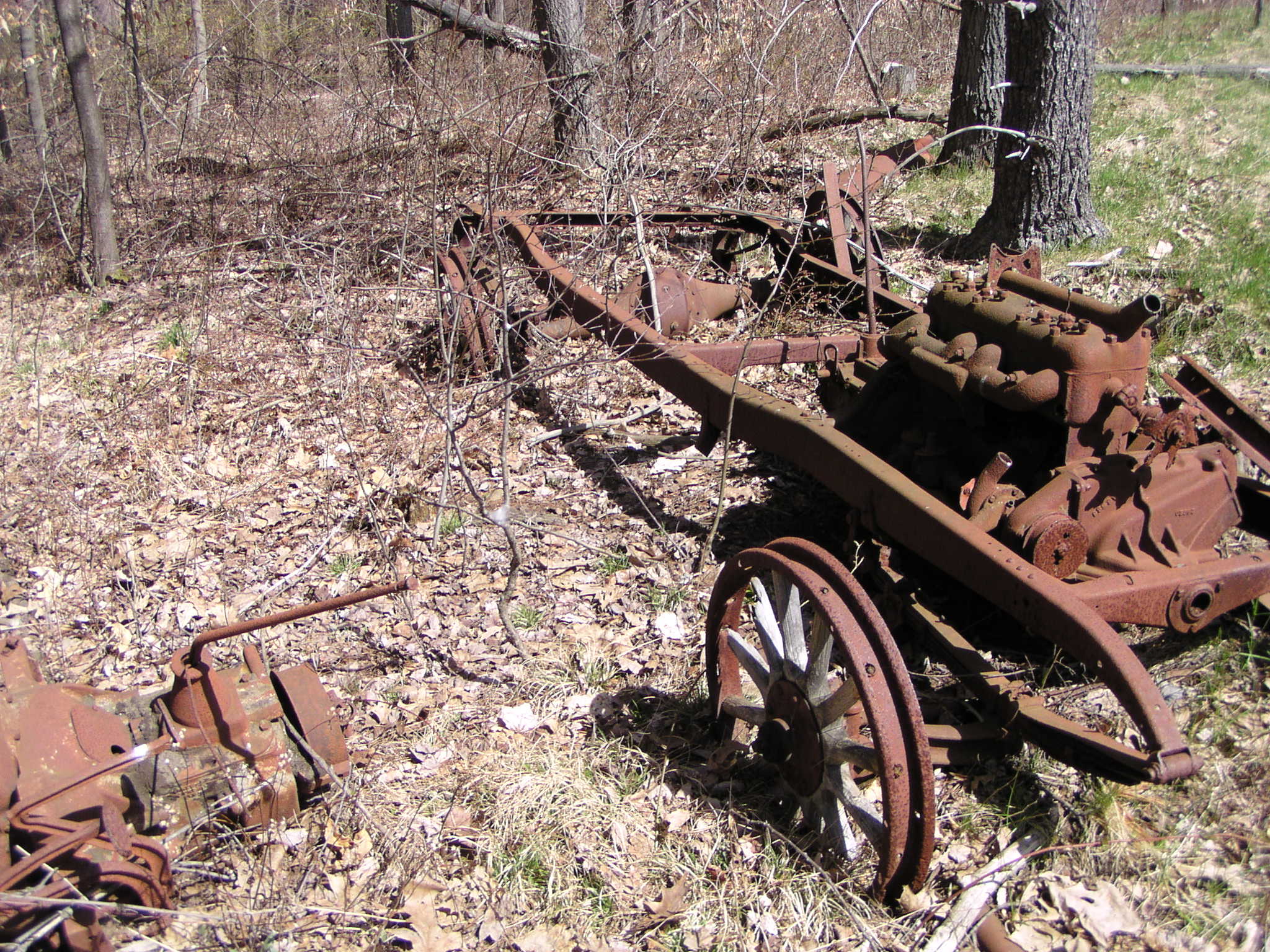

Remains of an old wood spoked wheel vehicle.
Spoke Wheel in Tree 02
Image 61 of 72

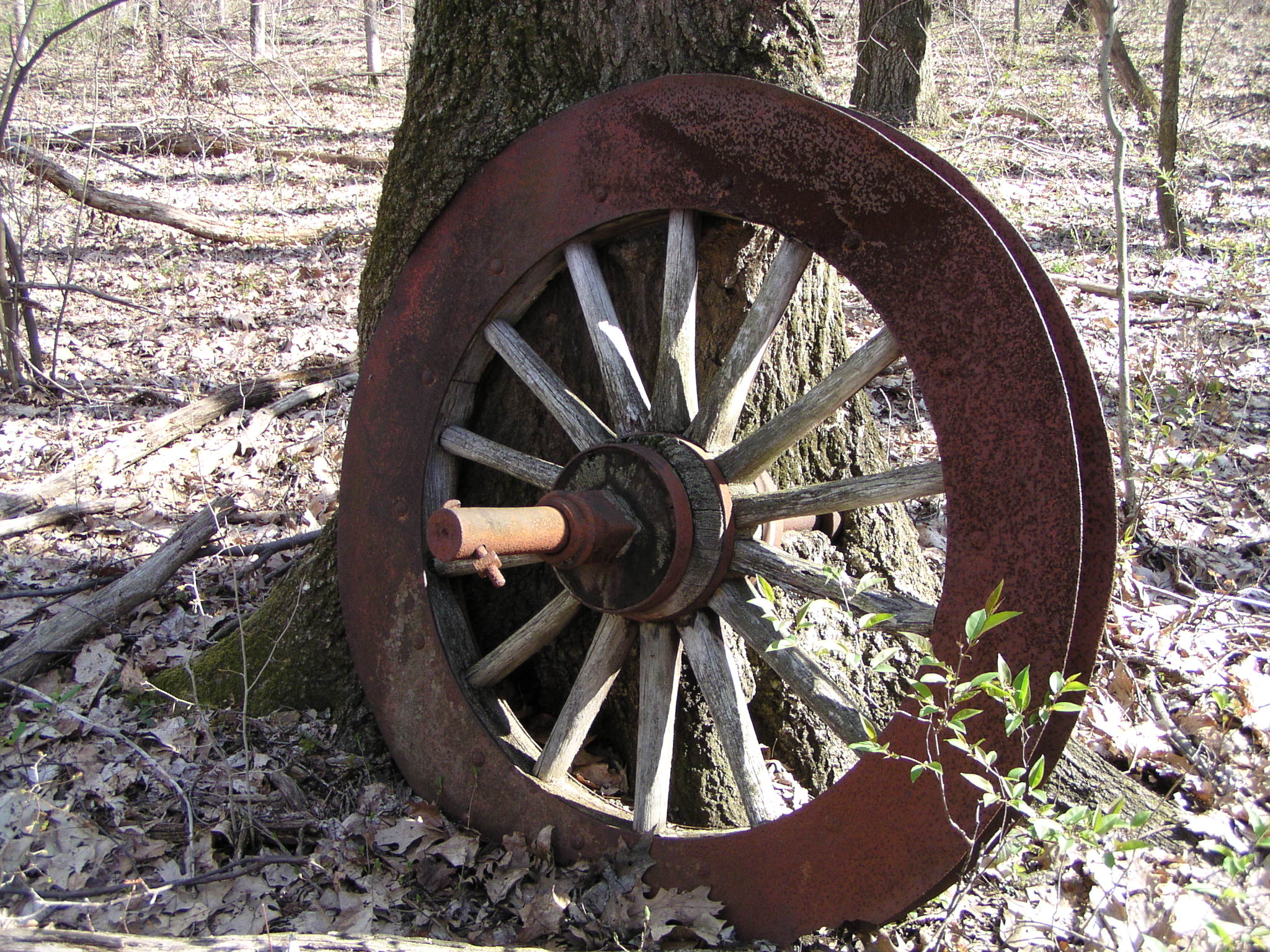

Nature isn't fast but it will overtake you given enough time.
Spoke Wheel in Tree 05
Image 62 of 72

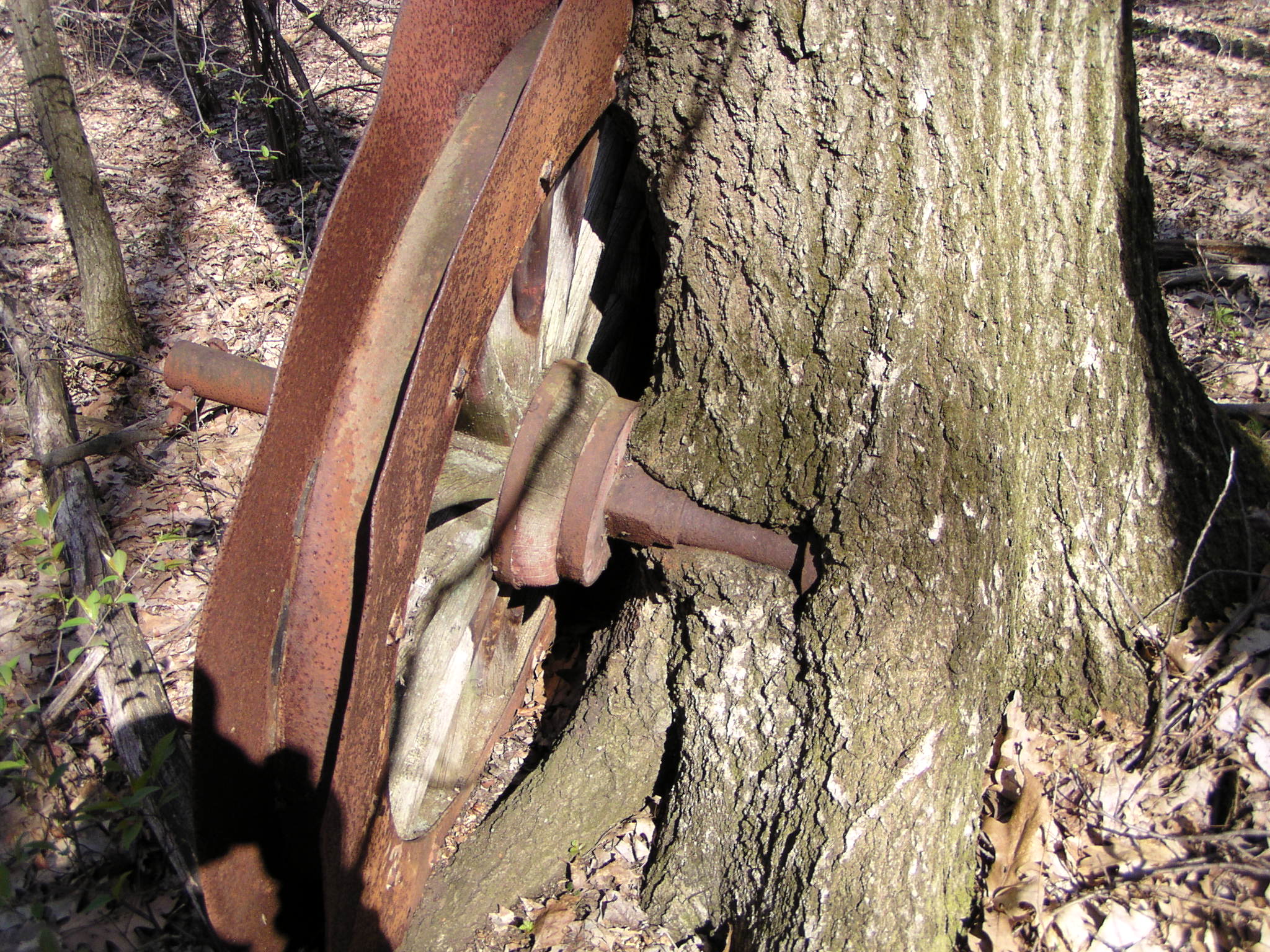

So don't lean against a tree for too long.

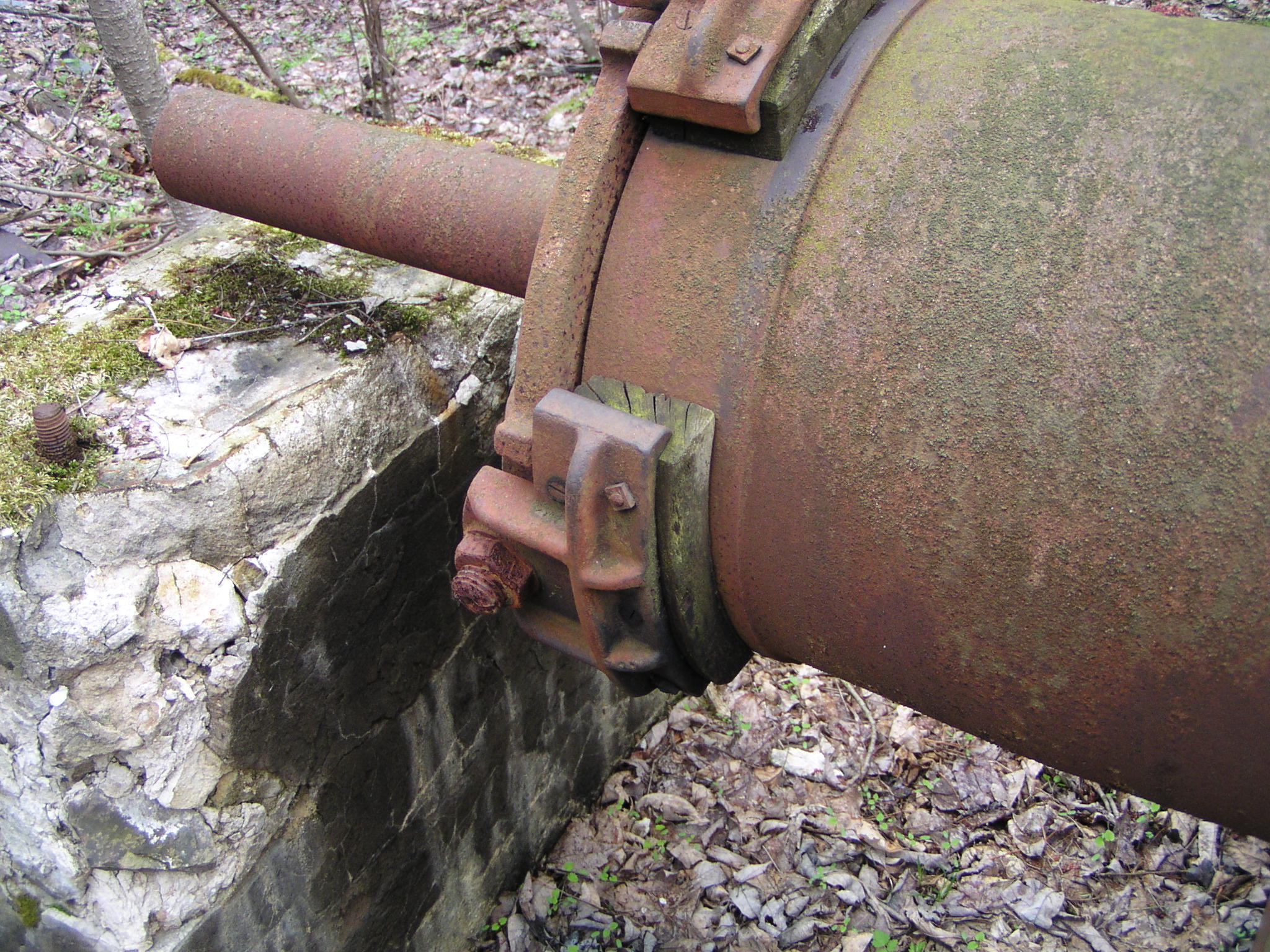

Trout Run 01
Image 63 of 72
Wooden brake shoes on a drive shaft.
WCH top 01
Image 64 of 72

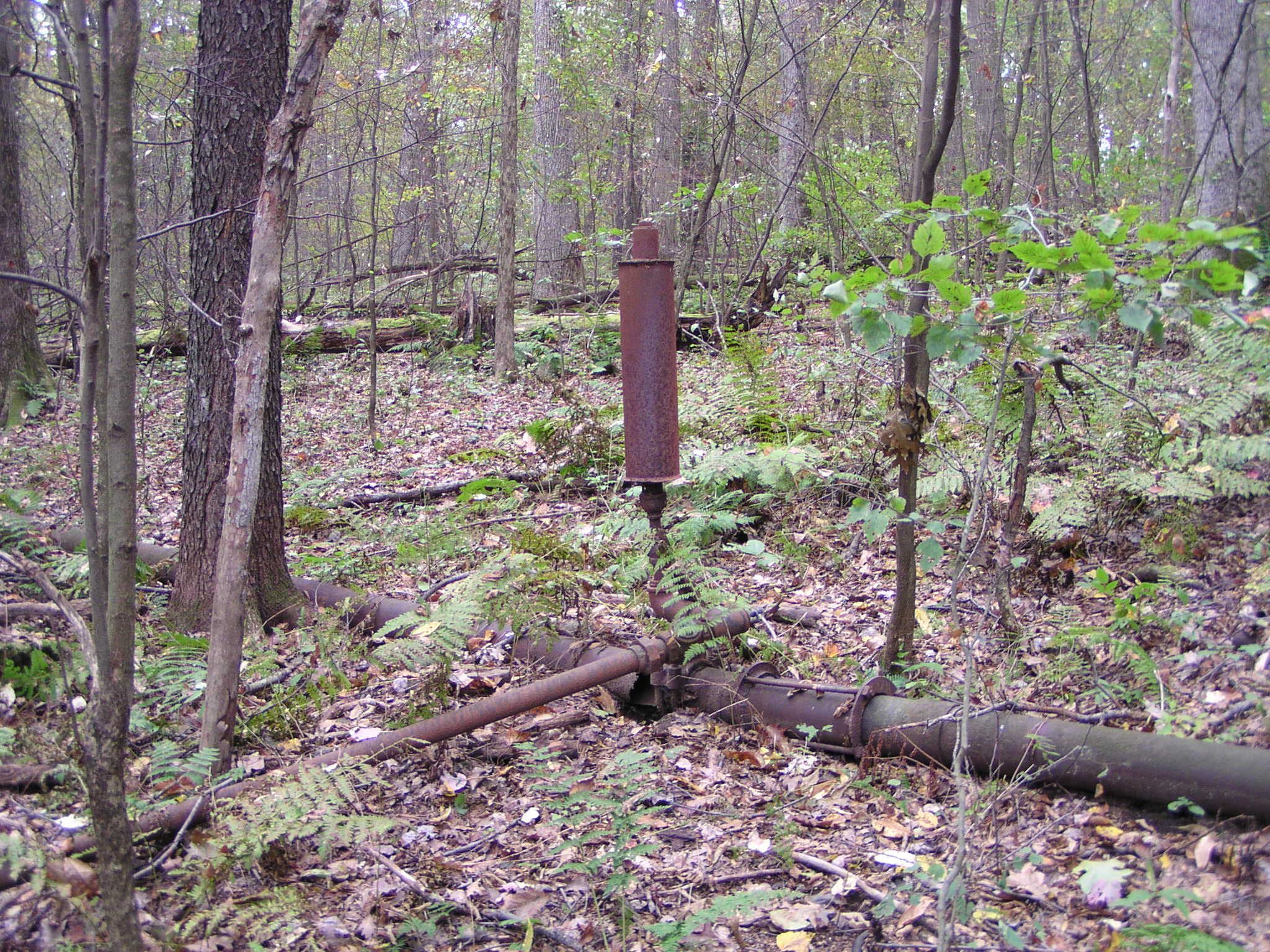

Maybe a strange pressure control on a old transmission line.

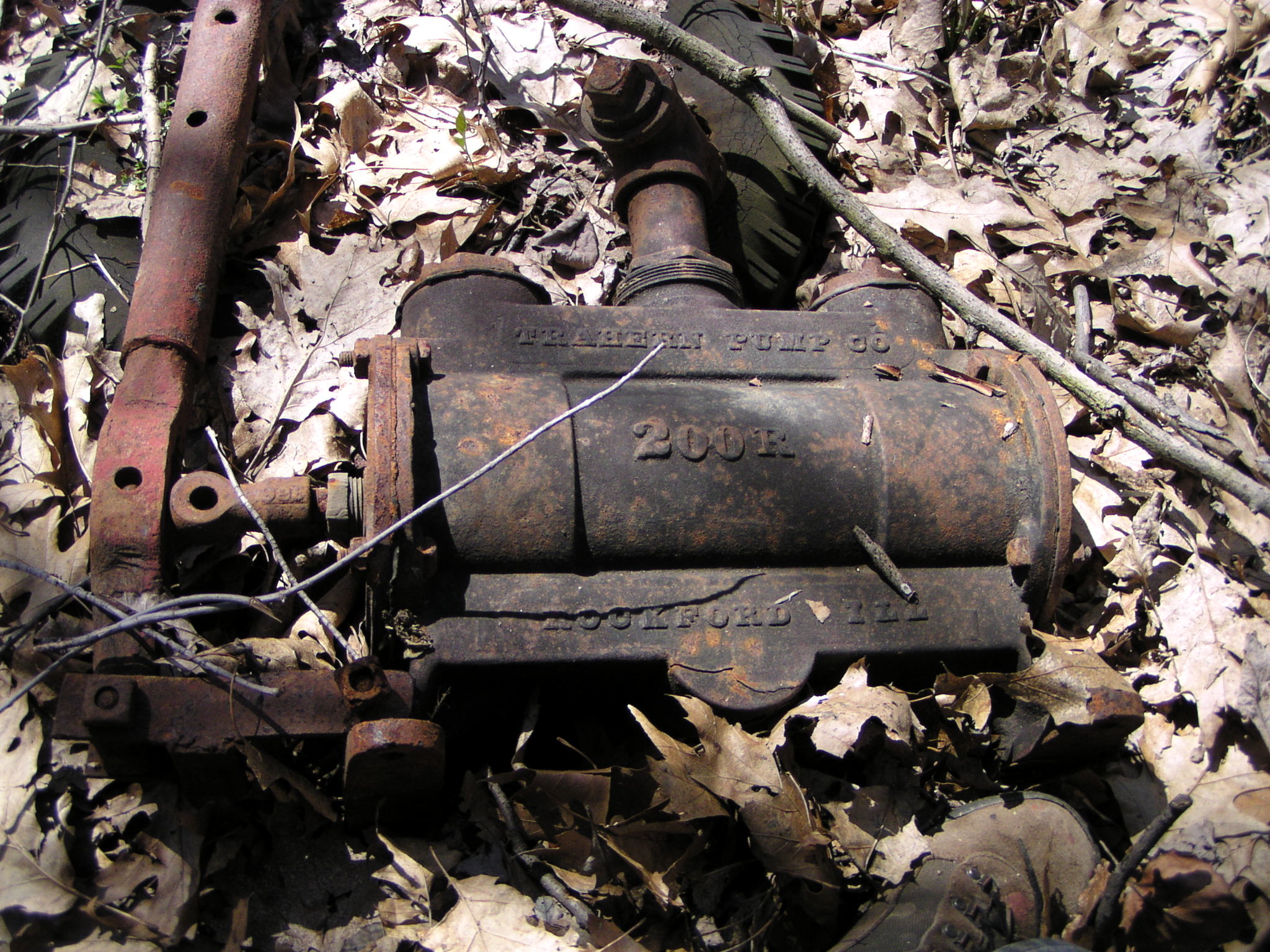

Picture 061
Image 65 of 72
Some kind of pump.
cooling loop 2
Image 66 of 72

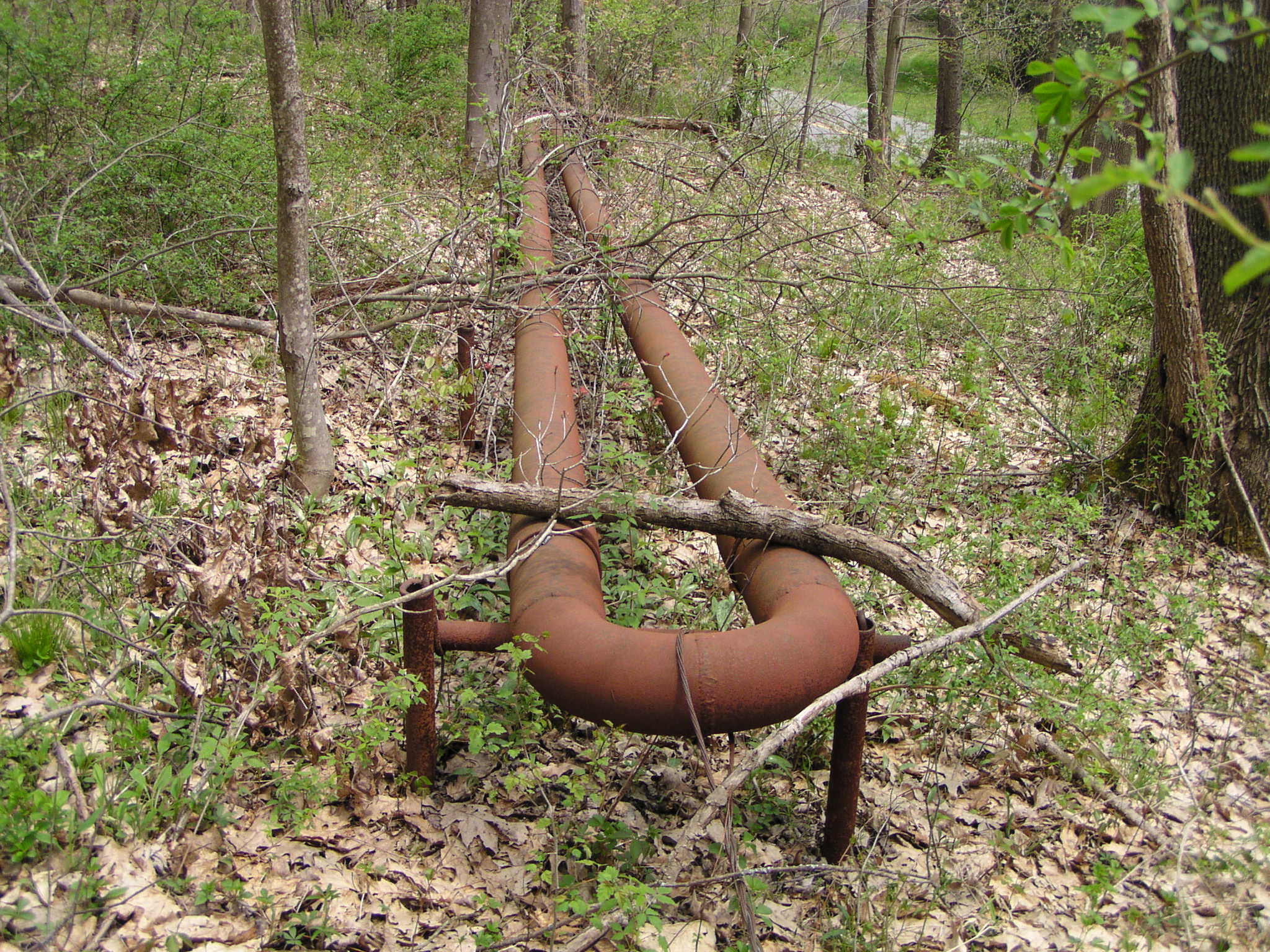

A cooling loop found in the woods.

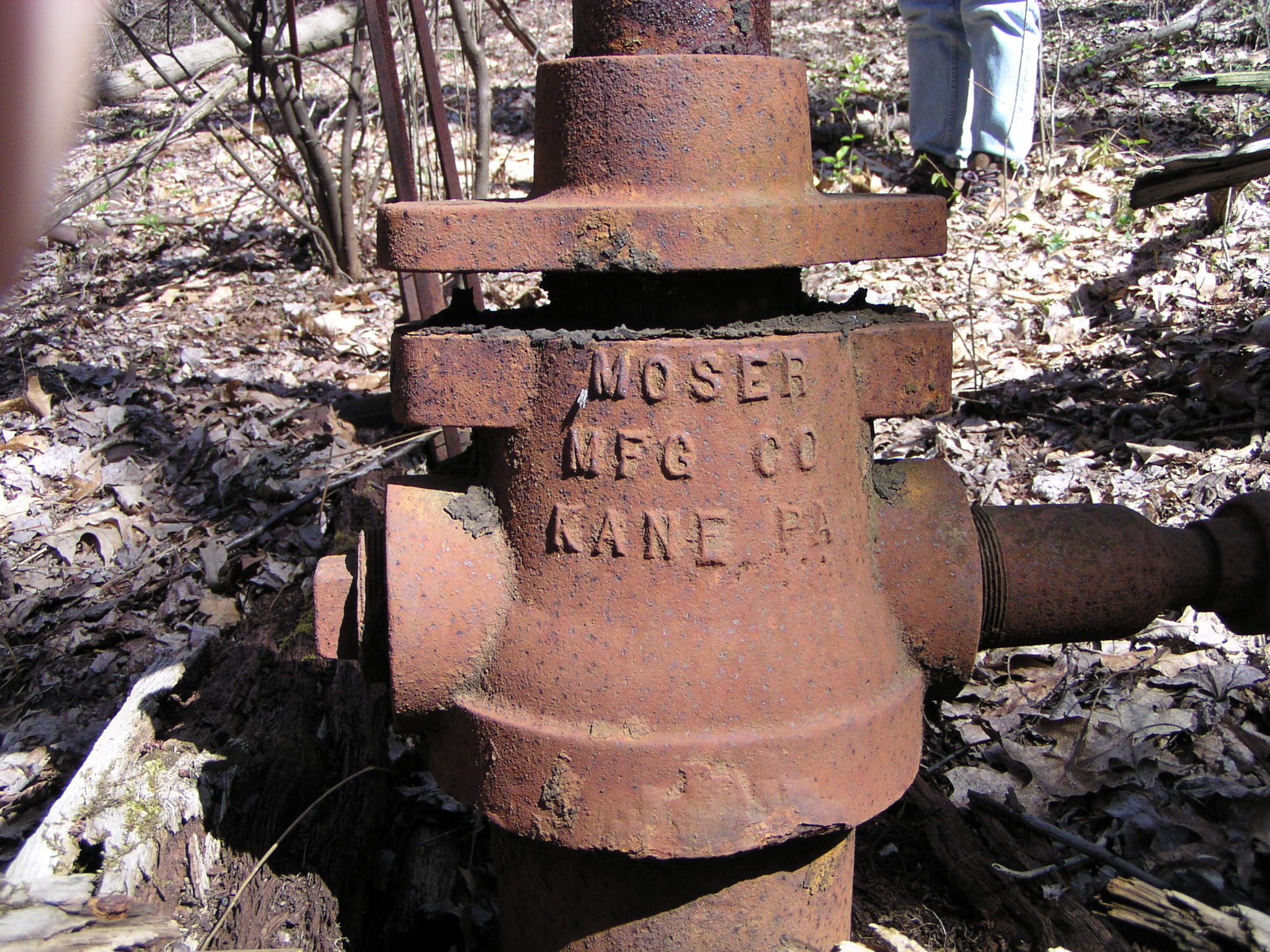

Connector Moser Mfg Kane PA 02
Image 67 of 72
A Moser well head made in Kane PA.
PIPE IN TREE 02
Image 68 of 72

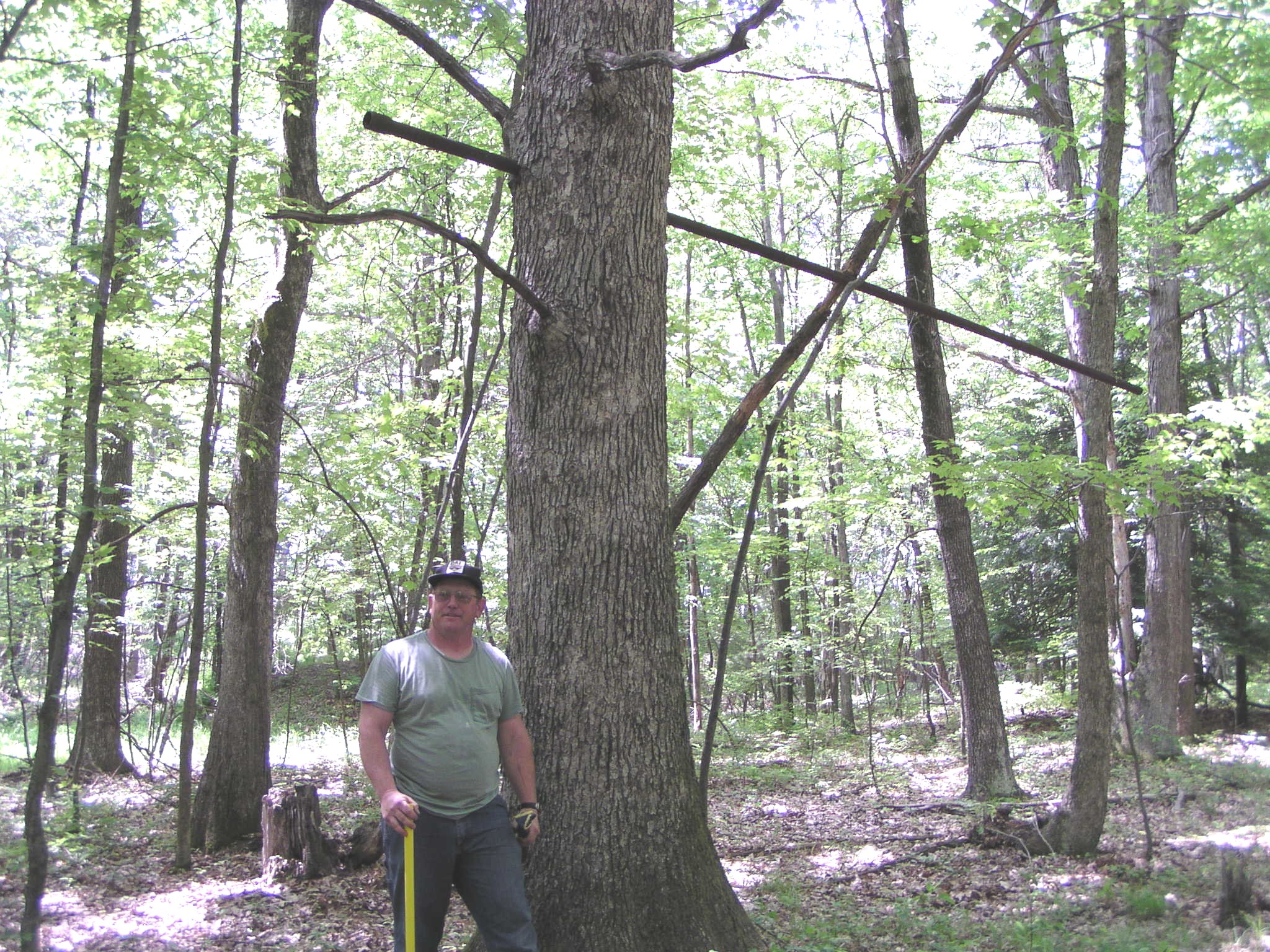

Note the pipe in the tree. No the tree didn't grow up. Someone placed the pipe in the tree and the tree grew around it.
Beaver Al 01
Image 69 of 72
Porcupines like to chew on aluminum sheets left in the woods.

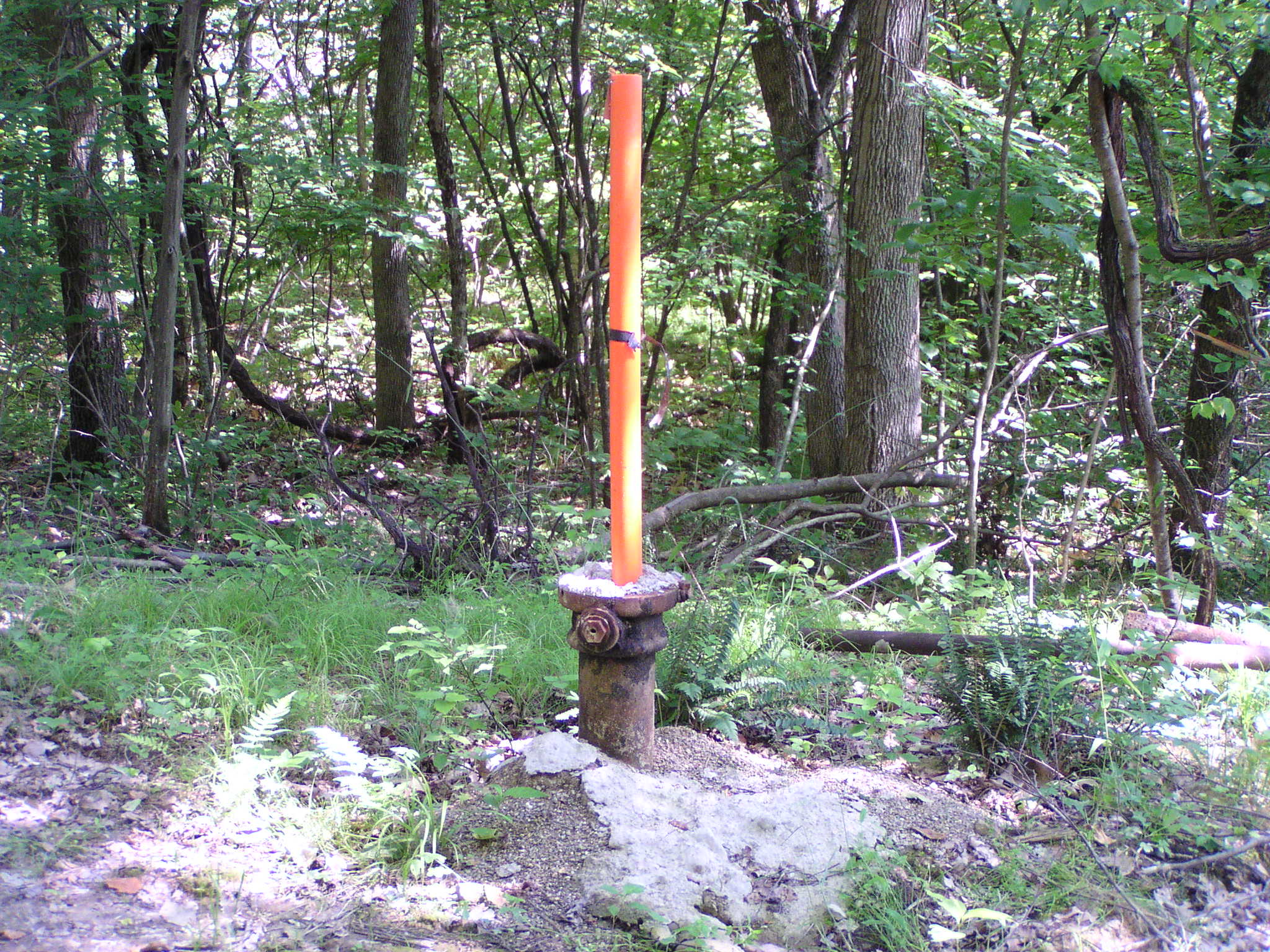

Plugged well 2
Image 70 of 72
The ultimate goal of the Orphan Well Project is to get the wells plugged.
Oil Field stuff 009
Image 71 of 72

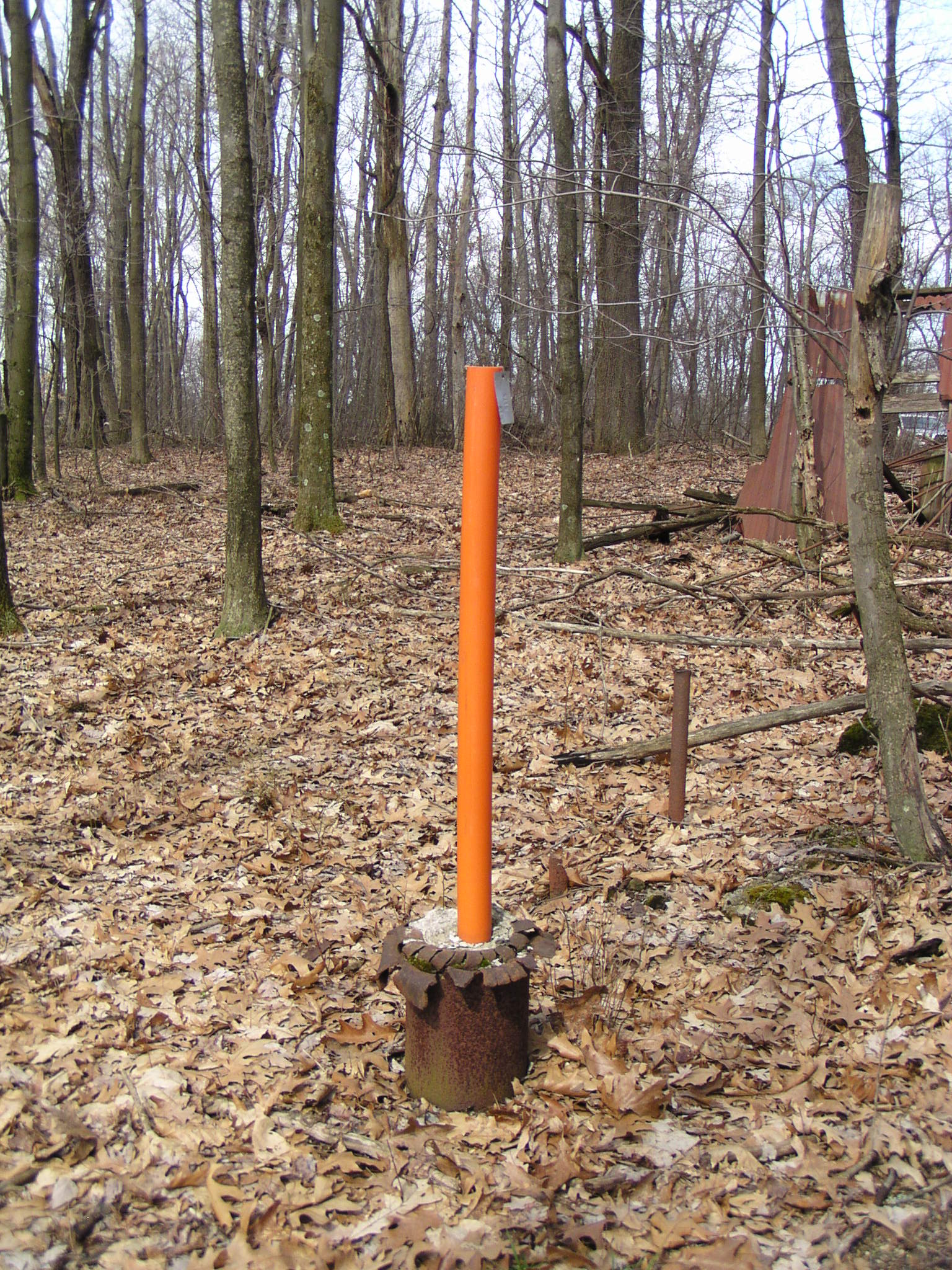

The orange pipe is left as a marker so the well can be located later.
PlugTop w marker 01
Image 72 of 72

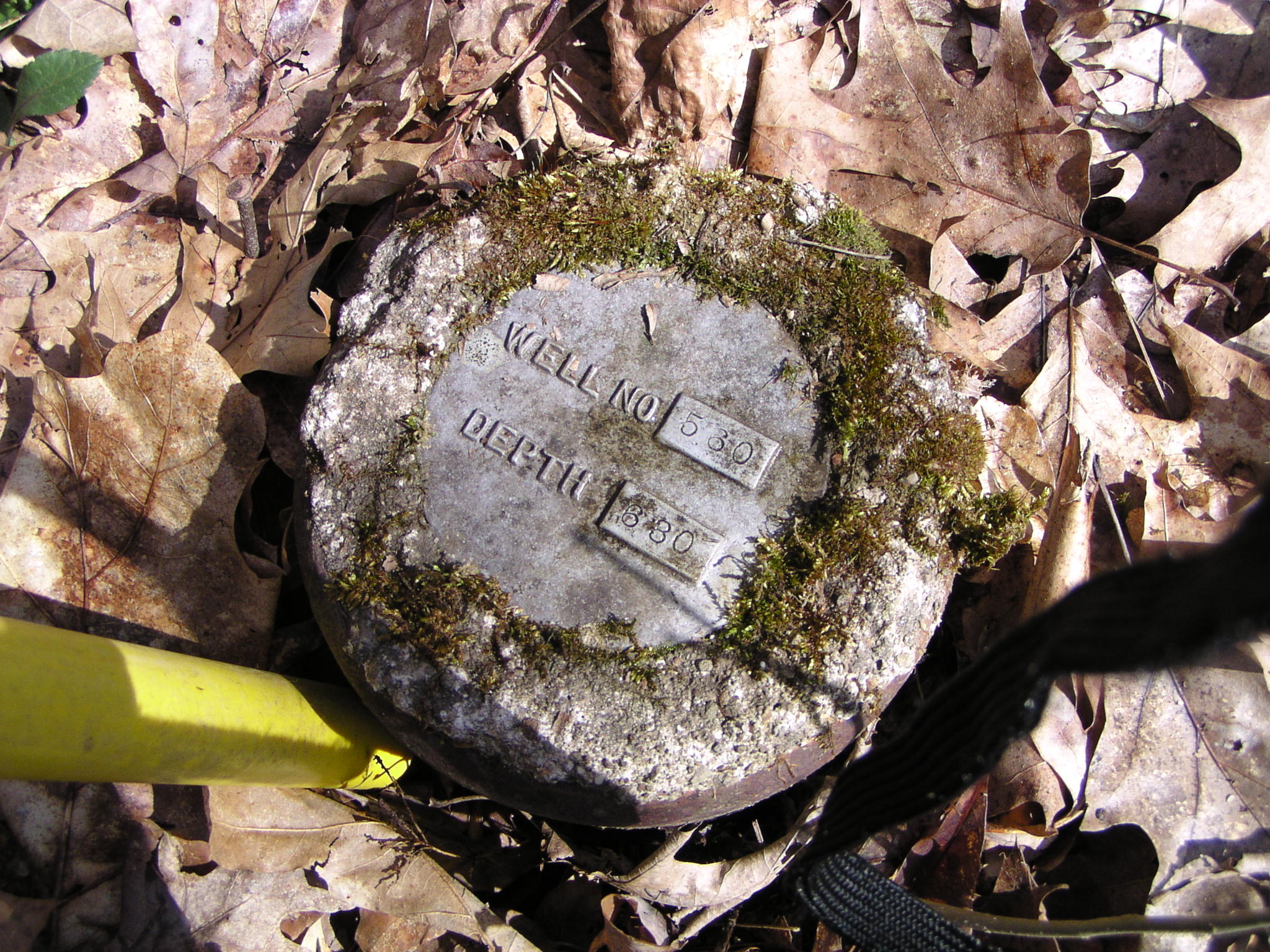

Some plugged wells get a marker showing the well number and the depth.
